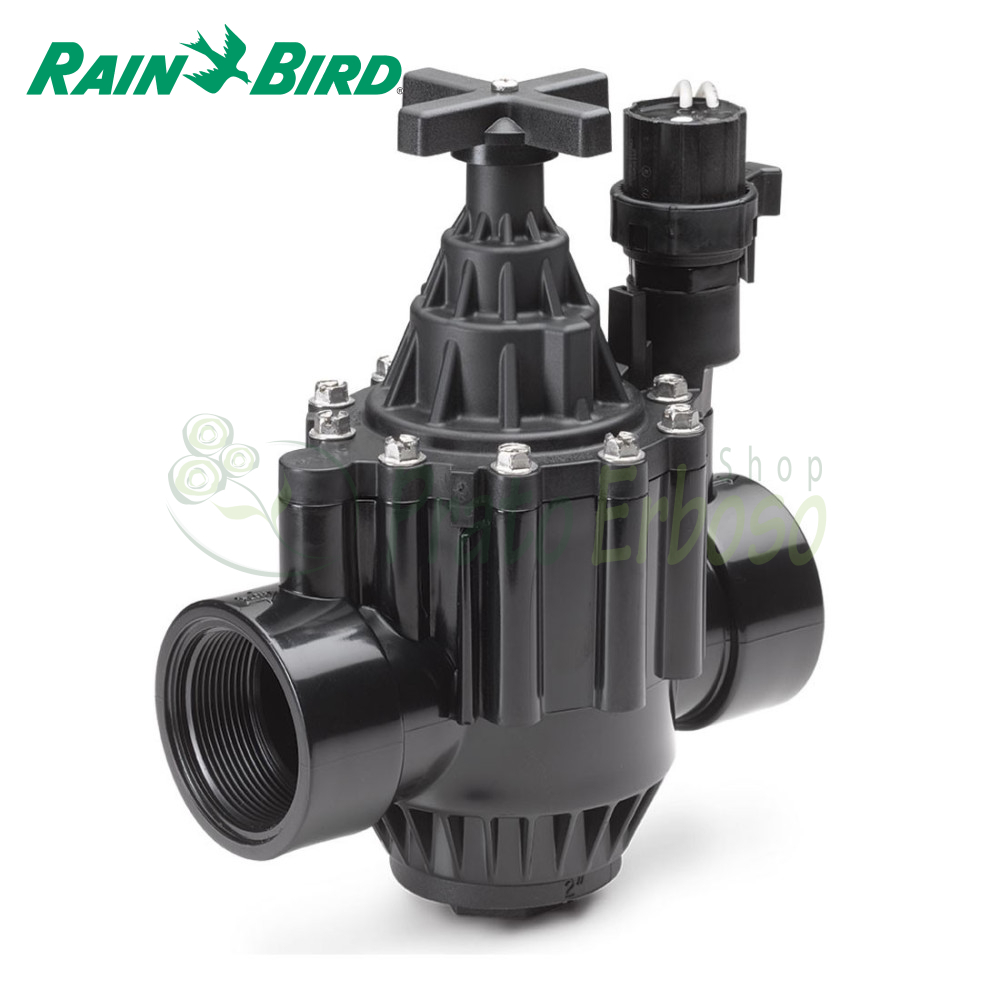

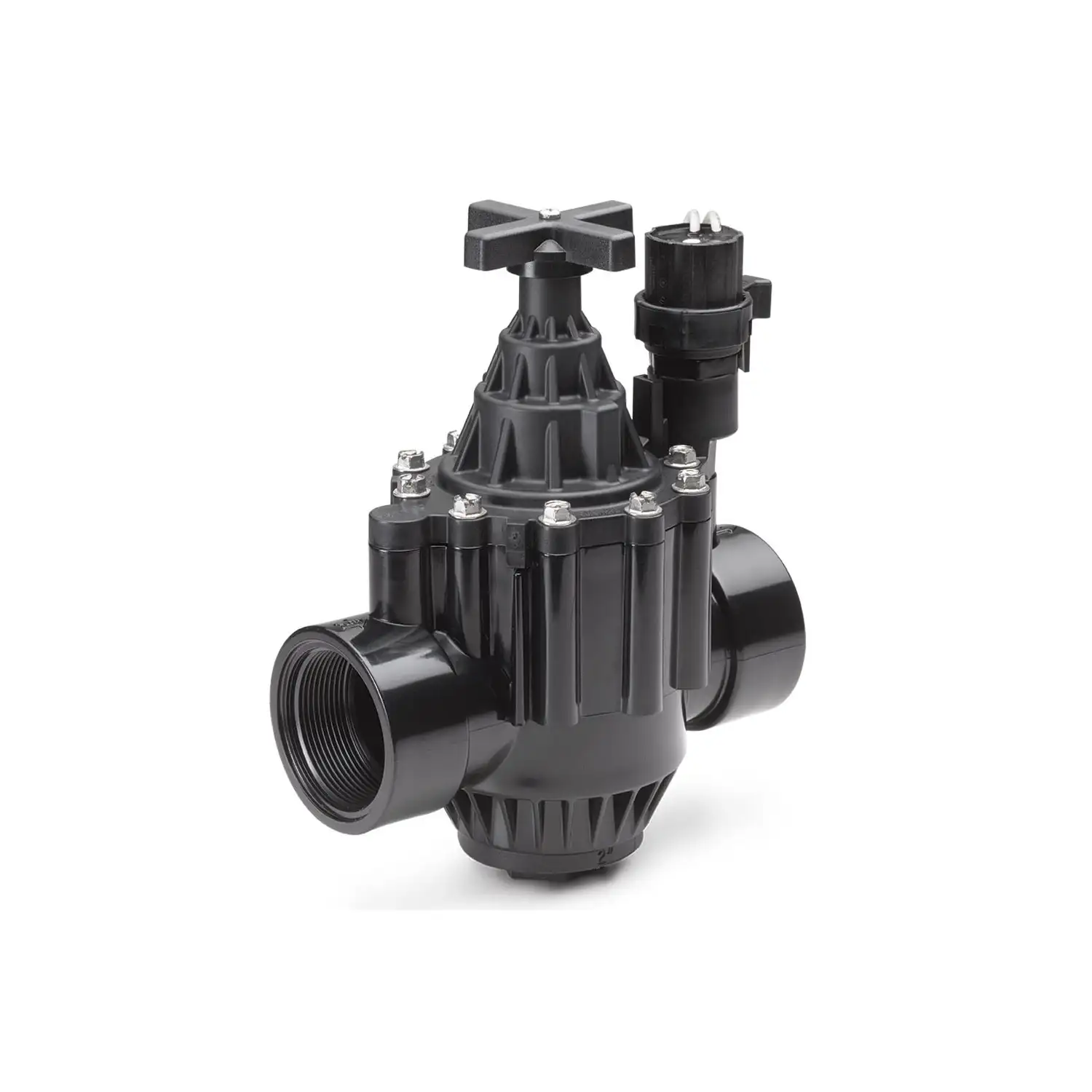

150-PGA - 1" 1/2 Solenoid Valve
The Rain Bird PGA Series 150-PGA solenoid valve is recommended for residential and commercial use.
Among the most robust and reliable in the category.
Extremely durable and easy to maintain, it proves to be particularly effective in the presence of large temperature changes and high pressures.
The 150-PGA valve ensures an excellent seal between the body and the lid, regardless of conditions, for worry-free operation.

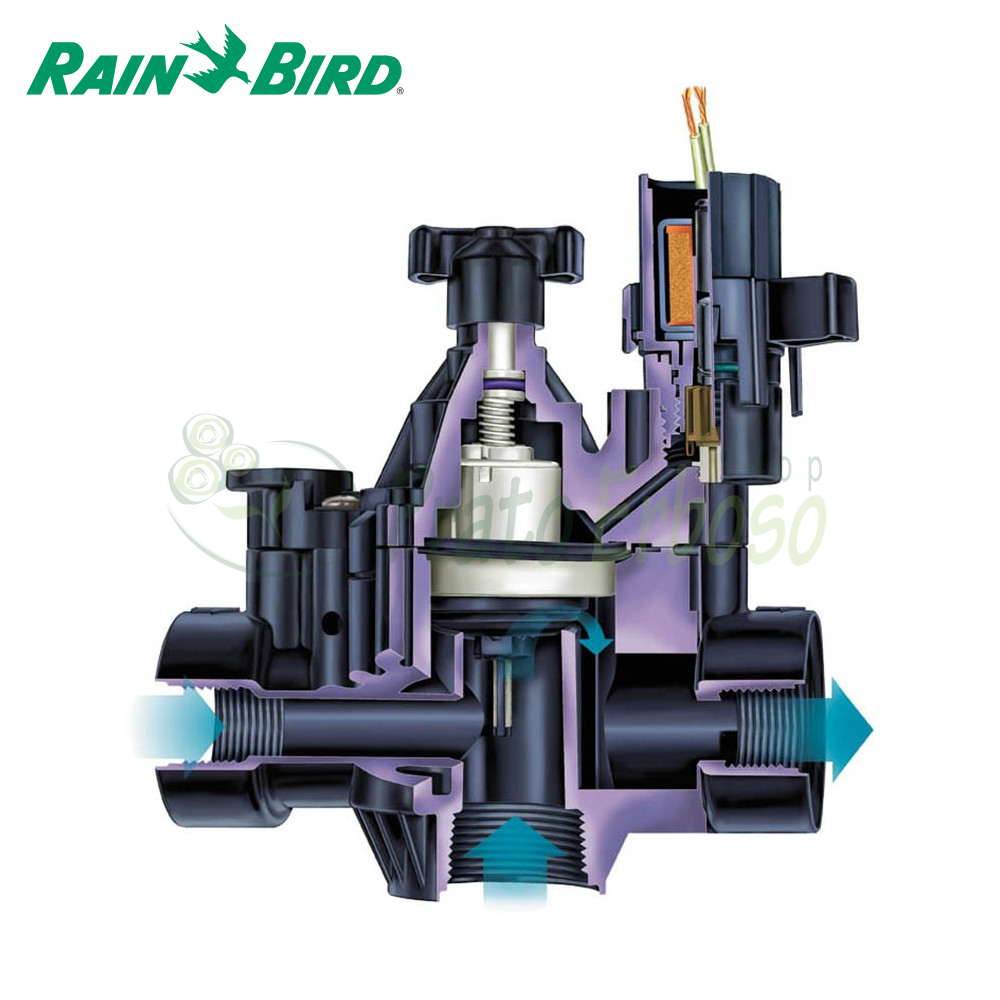

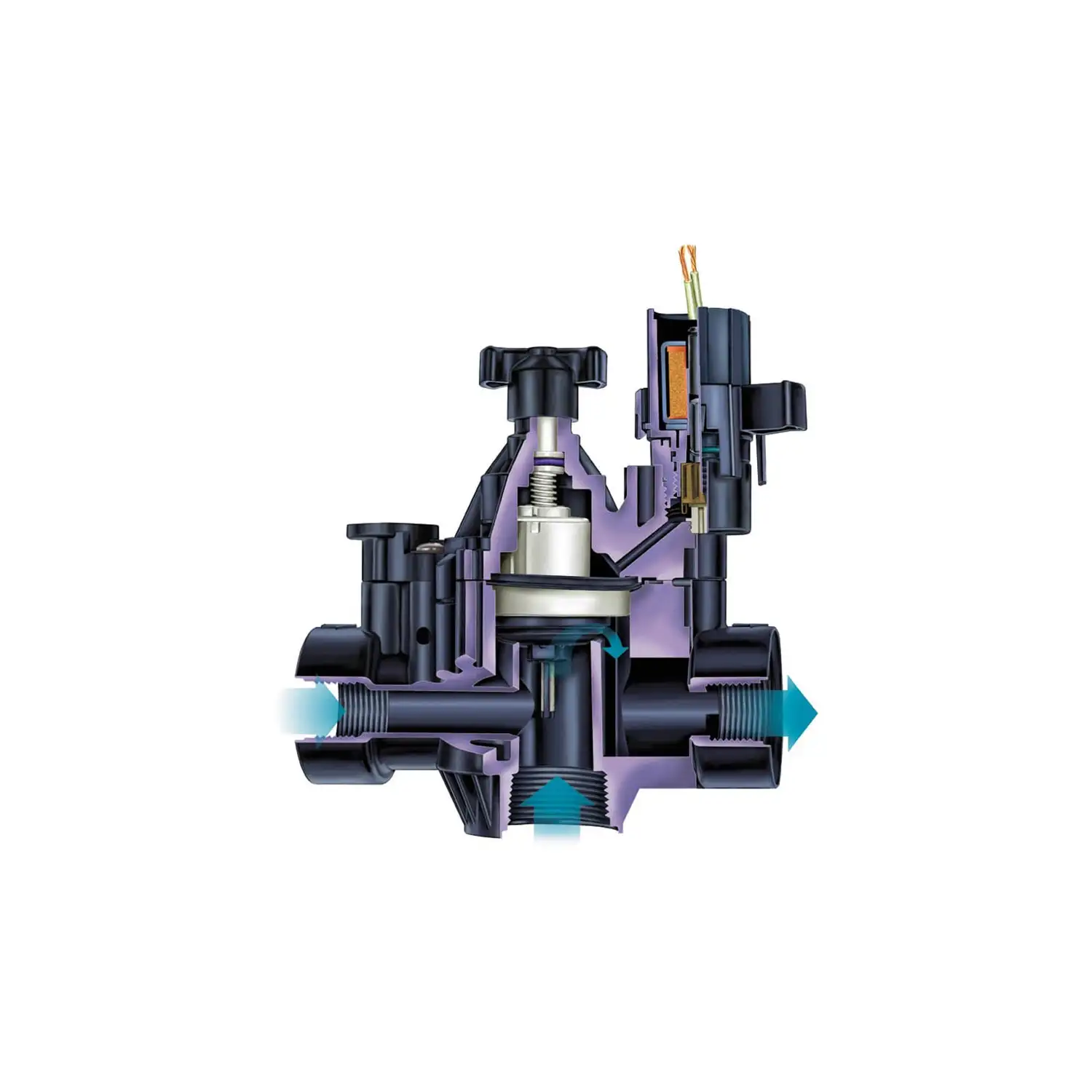

The pilot flow with filtering allows to counteract suspended particles and avoid blockages.
Closing is slow to prevent water hammer and therefore possible damage to the system.
The 150-PGA valve can also be installed at an angle to ensure design and installation flexibility.
The manual internal drain device allows the valve to function while preventing water from entering the sump. This allows adjustment of the pressure regulator without activating the valve on the controller.
- Max. flow rate (l./min.)
- 350
- Max. working pressure (bar)
- 10.4
- Manual flow regulation
- Yes
- Self-cleaning device
- No
- Supply voltage (Volts)
- 24
- Height (cm)
- 20.3
- Width (cm)
- 8.9
- Depth (cm)
- 17.2
- Attack size
- 1 1/2 "
- Warranty (years)
- 2
- Type of attack
- female/female
- Thread
- NPT
- Body
- PVC
Compare with Similar Products
 150-PGA - 1" 1/2 Solenoid ValveThis product Female/female connection. With flow regulator. |  PGV-151-B - 1 1/2" solenoid valve Female/female connection. With flow regulator. |  P150-23-56 - 1" 1/2 Solenoid Valve Female/female connection. With flow regulator. |  150-PEB - 1" Solenoid valve 1/2 Attack female/female. In reinforced Nylon. With flow regulator. | |
|---|---|---|---|---|
| Price | Price €136.64 -40% €81.98 | Price €57.34 -5% €54.47 | Price €120.38 -32% €81.86 | Price €181.65 -40% €108.99 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 350 | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Max. working pressure (bar) | Max. working pressure (bar) 10.4 | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Manual flow regulation | Manual flow regulation Yes | Manual flow regulation Yes | Manual flow regulation Yes | Manual flow regulation Yes |
| Self-cleaning device | Self-cleaning device No | Self-cleaning device Yes | Self-cleaning device No | Self-cleaning device No |
| Supply voltage (Volts) | Supply voltage (Volts) 24 | Supply voltage (Volts) 24 | Supply voltage (Volts) 24 | Supply voltage (Volts) 24 |
| Height (cm) | Height (cm) 20.3 | Height (cm) 19 | Height (cm) 18.4 | Height (cm) 20.3 |
| Width (cm) | Width (cm) 8.9 | Width (cm) 11 | Width (cm) 9.2 | Width (cm) 15.2 |
| Depth (cm) | Depth (cm) 17.2 | Depth (cm) -- | Depth (cm) -- | Depth (cm) 15.2 |
| Attack size | Attack size 1 1/2 " | Attack size 1 1/2 " | Attack size 1 1/2 " | Attack size 1 1/2 " |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 5 | Warranty (years) 2 |
| Type of attack | Type of attack female/female | Type of attack female/female | Type of attack female/female | Type of attack female/female |
| Thread | Thread NPT | Thread NPT | Thread NPT | Thread NPT |
| Body | Body PVC | Body Polypropylene | Body Fiberglass | Body Reinforced nylon |
