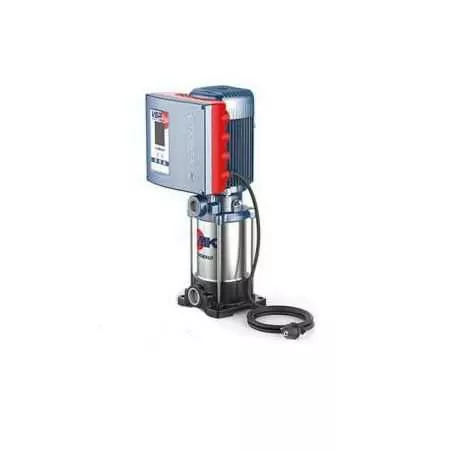

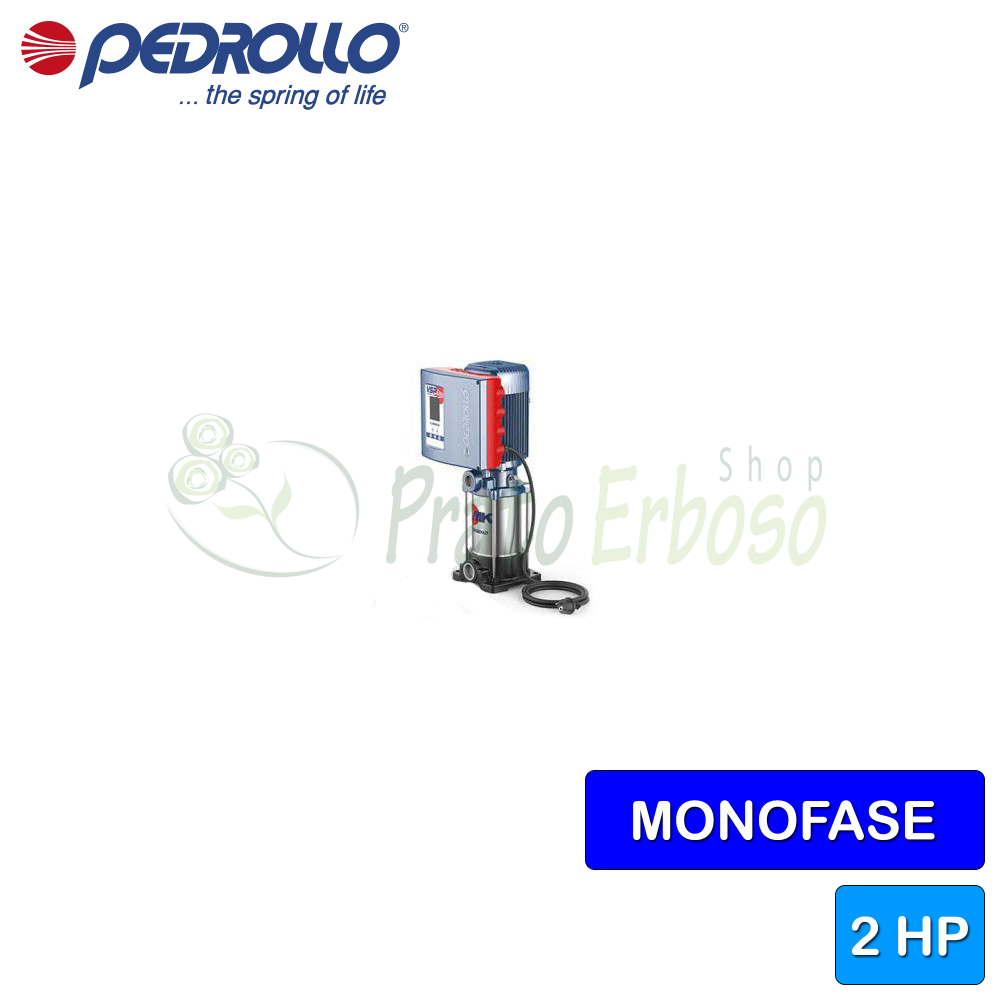

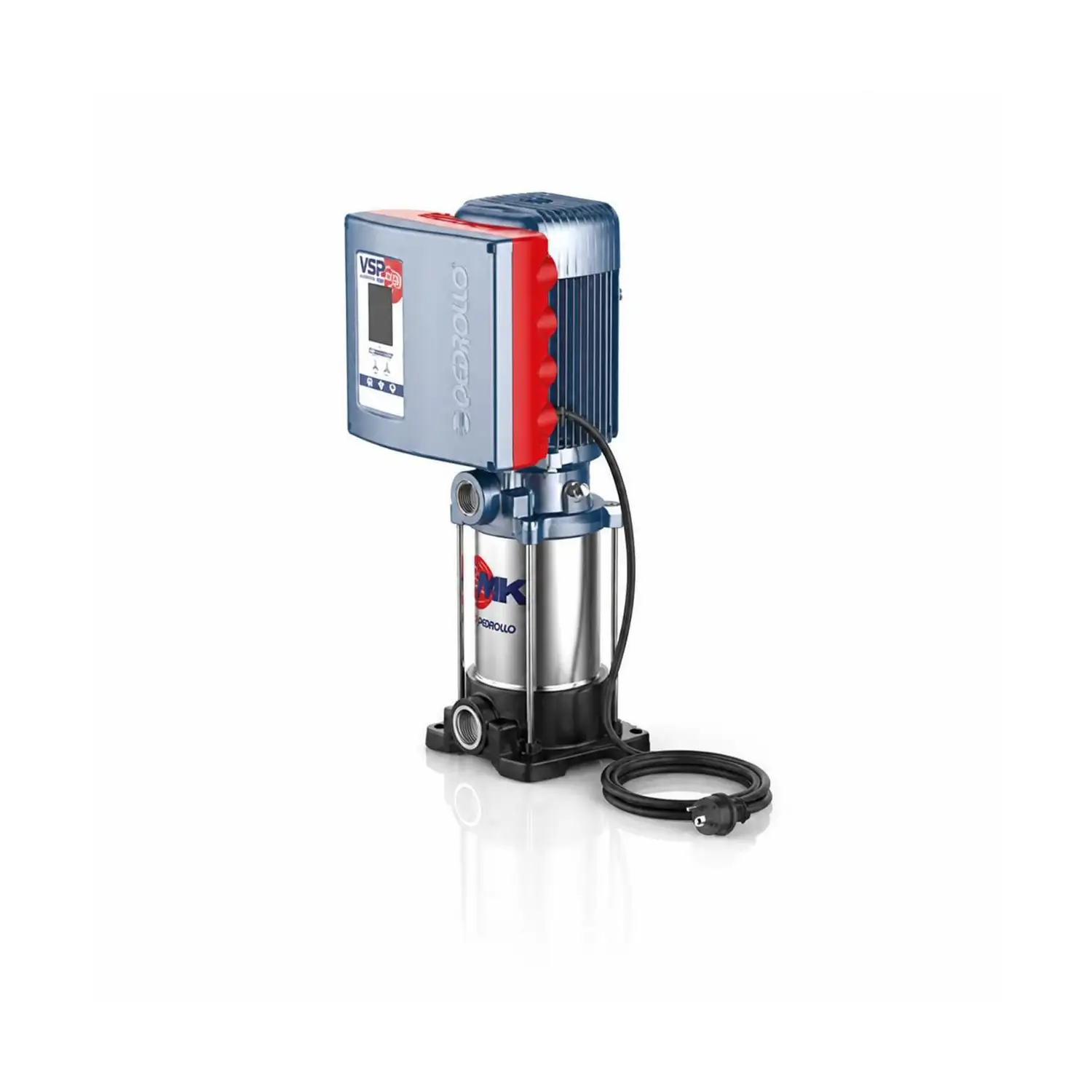

VSPm-MK 8/5 - 2 HP single-phase pressure booster set
1.5 kW (2 HP) motor. Flow rate up to 180 l/min (5.4 m³/h). Head up to 68 m.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
Description
The Pedrollo VSPm-MK 8/5 inverter electric pump from the VSP series is suitable for pumping clean water.
It stands out for its flexibility in use and installation.
In residential and commercial settings it is suitable for water supply and pressure boosting.
The VSPm-MK 8/5 system allows you to keep the system pressure always constant.
It protects the system from dry running, overcurrent, overvoltage and undervoltage, overtemperature and short circuit.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 2
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 15.5
- Max. head (m.)
- 68
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 50.1
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 27
- Warranty (years)
- 2
