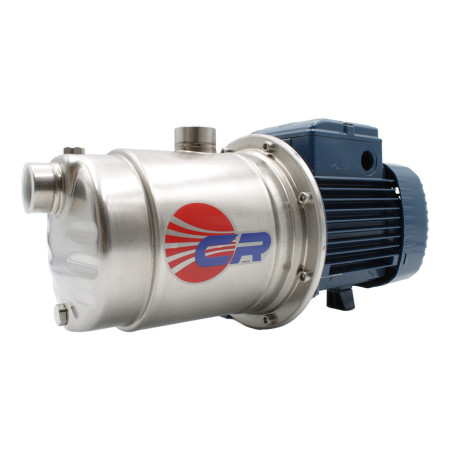

4CR 100X - DAMAGED 1 HP three-phase multi-impeller centrifugal pump
New but damaged product.
Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. Motor 0.75 Kw (1 HP).
Telephone support for information before purchasing.
After-sales assistance for product installation.
After-sales assistance in the correct use of the product.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Due to their reliability and ease of use, they are widely used in the domestic and civil sectors, particularly for water distribution in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
As clearly visible in the photos, the front left foot of the electric pump is damaged.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.5
- Current consumption at 400V (A)
- 2.6
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 4
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 20.2
- Width (cm)
- 18.2
- Depth (cm)
- 41.1
- Weight (Kg)
- 10.6
- Warranty (years)
- 2
