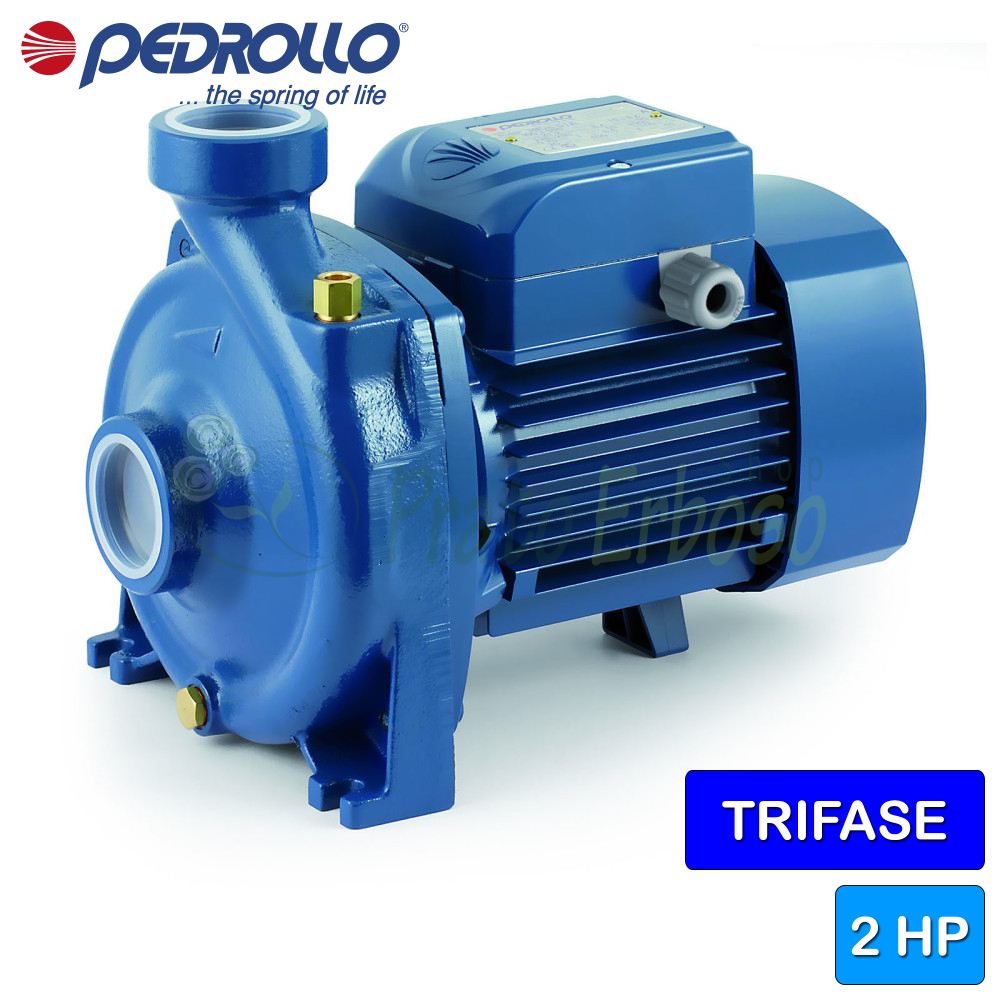

HF 5AM - 2 HP three-phase centrifugal electric pump

Name: HF 5AM - 2 HP three-phase centrifugal electric pump
Brand: Pedrollo
SKU: HF 5AM
Price: 333.99 EUR
Availability: InStock

Flow rate up to 600 l/min (36 m³/h). Head up to 22 m. 1.5 kW (2 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo HF 5AM centrifugal electric pump is suitable for those seeking reliability during long work sessions.

Suitable for surface and sprinkler irrigation, for drawing water from lakes, rivers and wells.

Recommended for use in the agricultural and industrial sectors.

The HF 5AM is suitable for those looking for high flow rates at the expense of low head values.

The flow rate ranges from 10 to 600 litres per minute while the head ranges from 10 to 22 metres.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2
Absorption at 230V (A): 7.1
Current consumption at 400V (A): 4.1
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 600
Min. head (m.): 10
Max. head (m.): 22
Jobs: water supply, irrigation, cooling systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 26
Width (cm): 38.6
Depth (cm): 20.8
Weight (Kg): 21.6
Warranty (years): 2

Attachments

Medium flow HF data sheet

Models, performance curves and construction characteristics of the Pedrollo pumps of the HF series medium flow rates.

Download (350.74KB)

HF models and performances - Medium ranges

GUY

three-phase

HF 50B

HF 50A

HF 51B

HF 51A

HF 70C

HF 70B

HF 70A

HF 5B

HF 5A

HF 5BM

HF 5AM

POWER
KW	HP
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3
0.75	1
1.1	1.5
1.1	1.5
1.5	2

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	10 ÷ 4
50 ÷ 300	12 ÷ 6
50 ÷ 300	18.2 ÷ 5.4
50 ÷ 300	21.2 ÷ 8.4
50 ÷ 300	29 ÷ 15
50 ÷ 300	33 ÷ 19
50 ÷ 300	39 ÷ 25
100 ÷ 500	13.7 ÷ 5
100 ÷ 600	14.5 ÷ 3
100 ÷ 600	19 ÷ 6
100 ÷ 600	22 ÷ 10

MOUTH
wait.	send.
1 1/2"	1 1/2"
2"	2"

Q	m³/hour	0	3	6	9	12	15	18	21	24	30	36
Q	l/min	0	50	100	150	200	250	300	350	400	500	600
H	meters	10	10	9.5	8.5	7.5	6	4
		12	12	11.5	11	9.6	8	6
		18.2	17.2	16	14	11.5	9	5.4
		21.2	20.2	19	17	14.5	11.6	8.4
		29	28	26.5	24.5	22	18.5	15
		33	32	30.5	28.5	26	22.5	19
		39	38	36.5	34.5	32	28.5	25
		13.7	-	13.2	13	12.5	11.6	10.5	9.2	8	5
		14.5	-	13.8	13.5	13.2	12.6	11.8	10.5	9.2	6.5	3
		19	-	18.5	18	17	16	15.2	14	12.8	9.7	6
		22	-	21.5	21	20.5	19.8	19	18	16.8	13.8	10

Construction data of the HF 70C-70B-70A-5 BM-5 AM

Section of the Pedrollo HF medium flow pump

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
