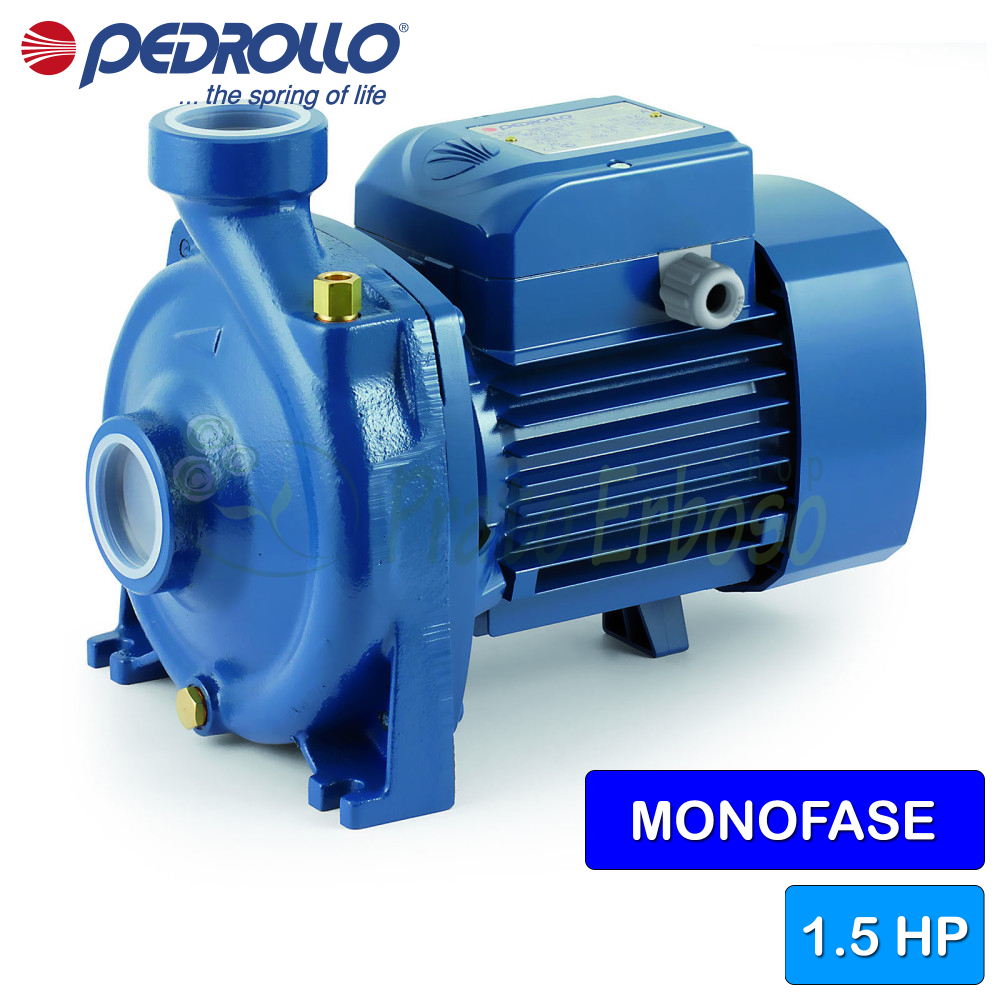

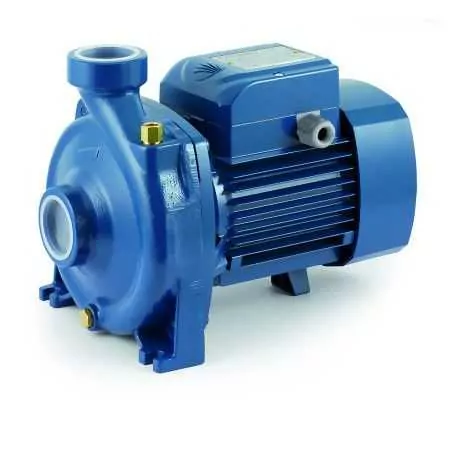

HFm 5A - 1.5 HP single-phase centrifugal electric pump
Flow rate up to 600 l/min (36 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 6 February - Monday 9 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 6 February - Monday 9 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Friday 6 February - Monday 9 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 5 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Thursday 5 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 6 February - Monday 9 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 6 February - Monday 9 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 6 February - Monday 9 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Thursday 5 February
The HFm 5A centrifugal electric pump from Pedrollo 's HF series belongs to the medium flow rate category.
It satisfies the needs of those who require high flow rates and are not interested in having large values in terms of head.
The HFm 5A is recommended for surface and sprinkler irrigation, for drawing water from lakes, rivers and wells.
Advantageous as it is reliable and constant even during long watering sessions.
The flow rate ranges from 100 to 600 litres per minute while the head ranges from 4.3 to 16 metres.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 6.2
- Capacitor
- 25 µF 450 VL
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 4.3
- Max. head (m.)
- 16
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 23.8
- Width (cm)
- 31.6
- Depth (cm)
- 19.2
- Weight (Kg)
- 14.6
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 HFm 5A - 1.5 HP single-phase centrifugal electric pumpThis product Flow rate up to 600 l/min (36 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor. |  HFm 5B - 1 HP single-phase centrifugal electric pumpFlow rate up to 500 l/min (30 m³/h). Head up to 13.7 m. 0.75 Kw (1 HP) motor. |  HFm 5BM - 1.5 HP single-phase centrifugal electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 19 m. 1.1 kW (1.5 HP) motor. |  HFm 5AM - 2 HP single-phase centrifugal electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 22 m. 1.5 kW (2 HP) motor. | |
|---|---|---|---|---|
| Price | Price €374.54 -42% €217.23 | Price €351.36 -42% €203.79 | Price €535.58 -42% €310.64 | Price €562.42 -42% €326.20 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 6.2 | Absorption at 230V (A) 4.9 | Absorption at 230V (A) 7.7 | Absorption at 230V (A) 10.1 |
| Capacitor | Capacitor 25 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 25 µF 450 VL | Capacitor 45 µF 450 VL |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 500 | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 600 |
| Min. head (m.) | Min. head (m.) 4.3 | Min. head (m.) 5 | Min. head (m.) 6 | Min. head (m.) 10 |
| Max. head (m.) | Max. head (m.) 16 | Max. head (m.) 13.7 | Max. head (m.) 19 | Max. head (m.) 22 |
| Jobs | Jobs water supply, irrigation, cooling systems, tank transfer | Jobs water supply, irrigation, cooling systems, tank transfer | Jobs water supply, irrigation, cooling systems, tank transfer | Jobs water supply, irrigation, cooling systems, tank transfer |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 23.8 | Height (cm) 23.8 | Height (cm) 26 | Height (cm) 26 |
| Width (cm) | Width (cm) 31.6 | Width (cm) 31.6 | Width (cm) 38.6 | Width (cm) 38.6 |
| Depth (cm) | Depth (cm) 19.2 | Depth (cm) 19.2 | Depth (cm) 20.8 | Depth (cm) 20.8 |
| Weight (Kg) | Weight (Kg) 14.6 | Weight (Kg) 14.3 | Weight (Kg) 19.2 | Weight (Kg) 21.6 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
