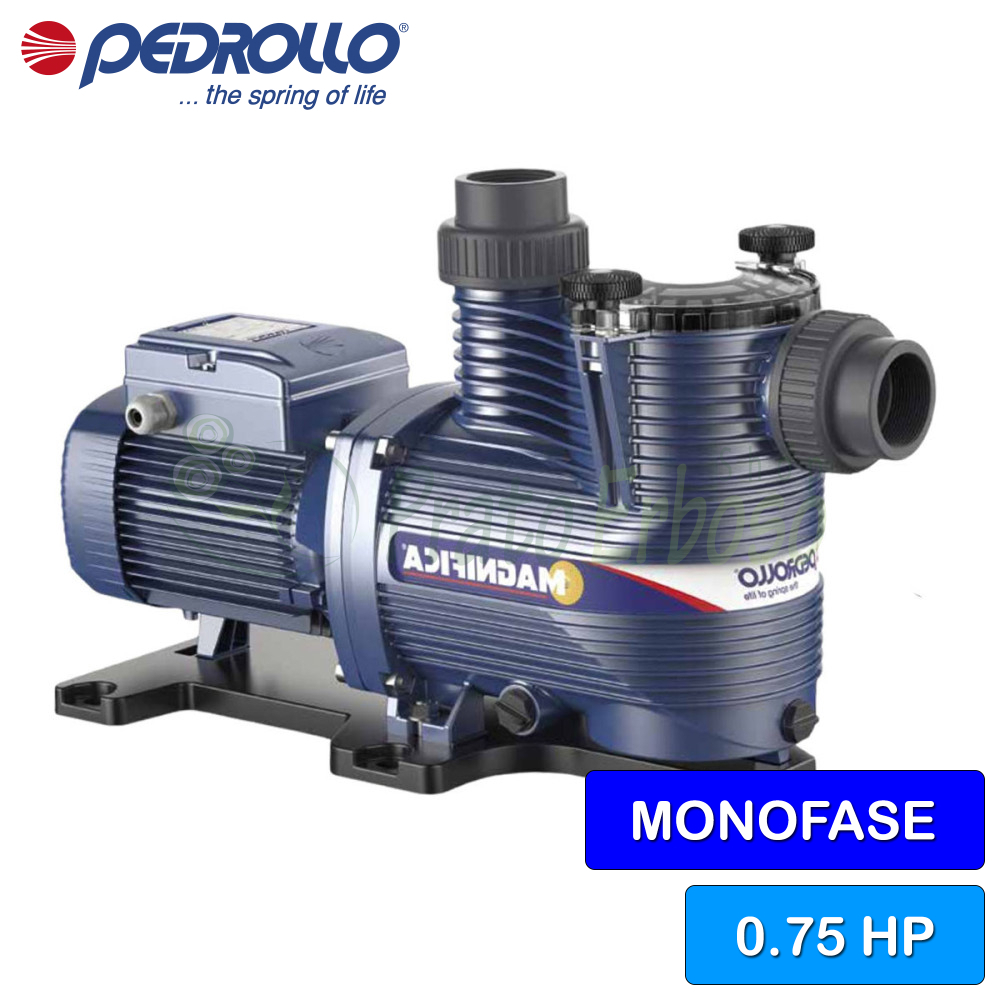

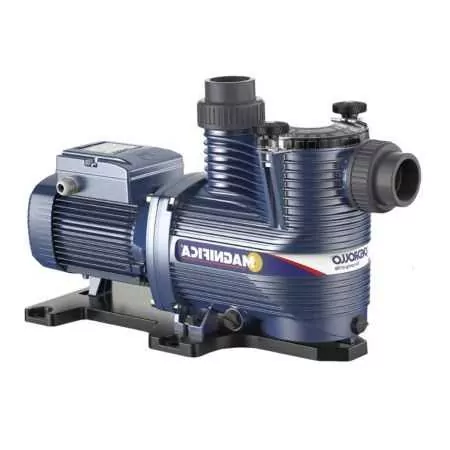

MAGNIFICA 1m - 0.75 HP Single Phase Electric Pool Pump

Name: MAGNIFICA 1m - 0.75 HP Single Phase Electric Pool Pump
Brand: Pedrollo
SKU: MAGNIFICA 1m
Price: 333.99 EUR
Availability: InStock

Flow rate up to 350 l/min (21 m³/h). Head up to 14.5 m. 0.55 Kw (0.75 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

Reinforced packaging to reduce transport damage.

We supply all spare parts on this product.

Description

The self-priming electric pump with pre-filter MAGNIFICA 1m by Pedrollo is suitable for the circulation and filtering of swimming pool water, especially for those requiring large flow rates.

It has a flow rate that varies from 100 to 350 litres per minute with a head of 4 to 14.5 metres.

It is recommended for pools up to 180 cubic meters. Pool water with pH 6.5 – 8.4.

Installation should be carried out in well-ventilated areas protected from the elements with adequate space for maintenance.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 4.2
Capacitor: 20 µF 450 VL
Suction mouth: 2"
Delivery mouth: 2"
Impeller: Noryl
Number of impellers: 1
Crankshaft: AISI 420 stainless steel
Check valve: No
Degree of protection: IP 55
Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 350
Min. head (m.): 4
Max. head (m.): 14.5
Jobs: circulation in the pool
Max. liquid temperature (°C): +45°C
Motor voltage: 230 V
Height (cm): 35.3
Width (cm): 23.5
Depth (cm): 58.3
Weight (Kg): 14.1
Warranty (years): 2

Attachments

MAGNIFICA Technical Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's MAGNIFICA series pumps.

Download (521.77KB)

Models and performances MAGNIFICA m

GUY

single phase

MAGNIFICENT 1m

MAGNIFICENT 2m

MAGNIFICENT 3m

MAGNIFICENT 4m

MAGNIFICENT 5m

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
100 ÷ 350	14.5 ÷ 4
100 ÷ 400	17 ÷ 4.5
100 ÷ 525	15.5 ÷ 6
100 ÷ 600	17.7 ÷ 7
100 ÷ 700	23 ÷ 8

MOUTH
wait.	send.
2"	2"

Q	m³/hour	0	6.0	9.0	12	15	18	21	24	30	36	42
Q	l/min	0	100	150	200	250	300	350	400	525	600	700
H	meters	14.5	13.5	12.3	10.7	8.8	6.5	4
		17	16	14.9	13.5	11.8	9.7	7.3	4.5
		15.5	14.9	14.4	13.9	13.2	12.3	11.3	10	6
		17.7	17.3	16.9	16.4	15.8	15.1	14.2	13.1	9.6	7
		23	22.2	21.8	21.2	20.5	19.7	18.8	17.7	14.4	11.9	8

Construction data of the MAGNIFICA 1-2
