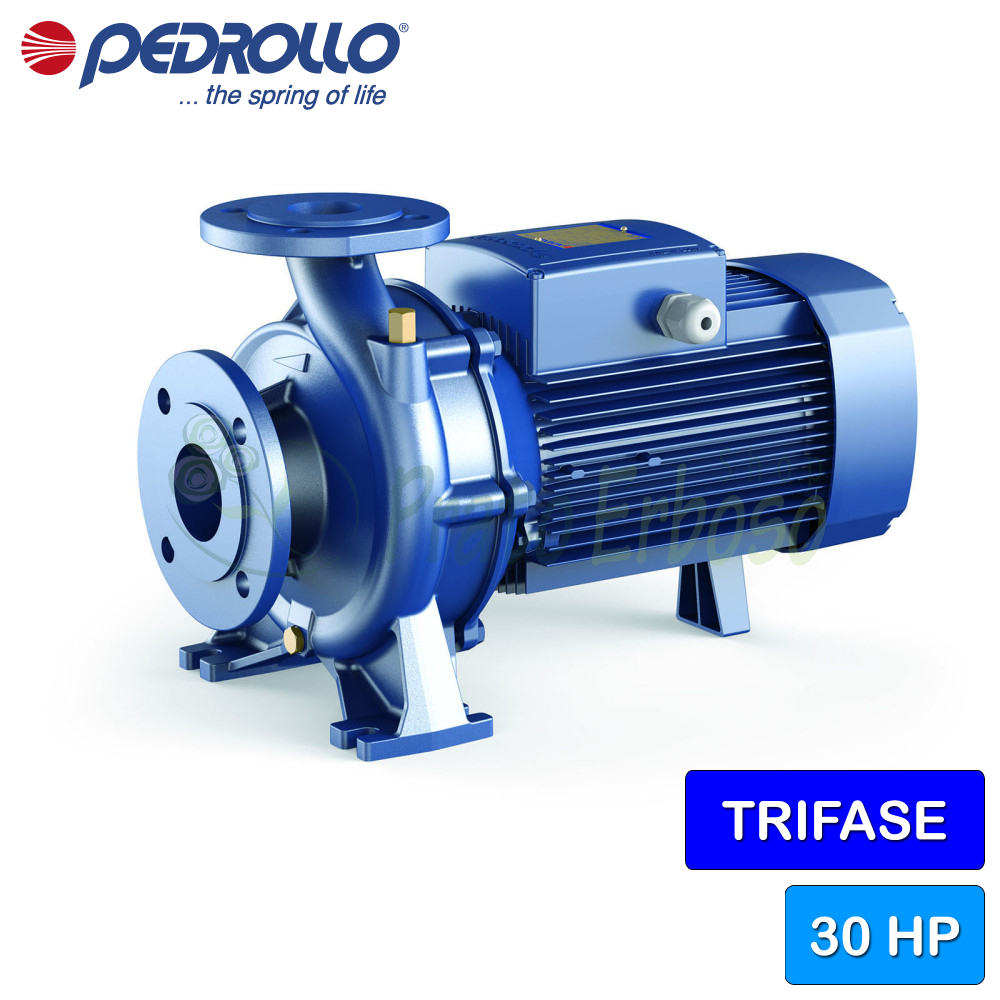

The F 100/160A centrifugal electric pump from the Pedrollo F series is among the best choices when it comes to standardized electric pumps.
Monoblock, it is equipped with flanges built according to the EN733 standard.
It can pump clean water or liquids that are not chemically aggressive to the materials from which the pump is made.
Recommended for installations in the civil and industrial sectors.
The F 100/160A is made using cast iron, brass and AISI 431 stainless steel for a solid and robust result.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 22
- Power (HP)
- 30
- Current consumption at 400V (A)
- 39.8
- Suction mouth
- 5"
- Delivery mouth
- 4"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 1000
- Max. flow rate (l./min.)
- 5500
- Min. head (m.)
- 17.5
- Max. head (m.)
- 38
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- 90
- Height (cm)
- 48
- Width (cm)
- 79
- Weight (Kg)
- 164
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6310 ZZ-C3 |
| Opposite side engine bearing | 6308 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-32 NU |
| LP diameter | 32 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
-
