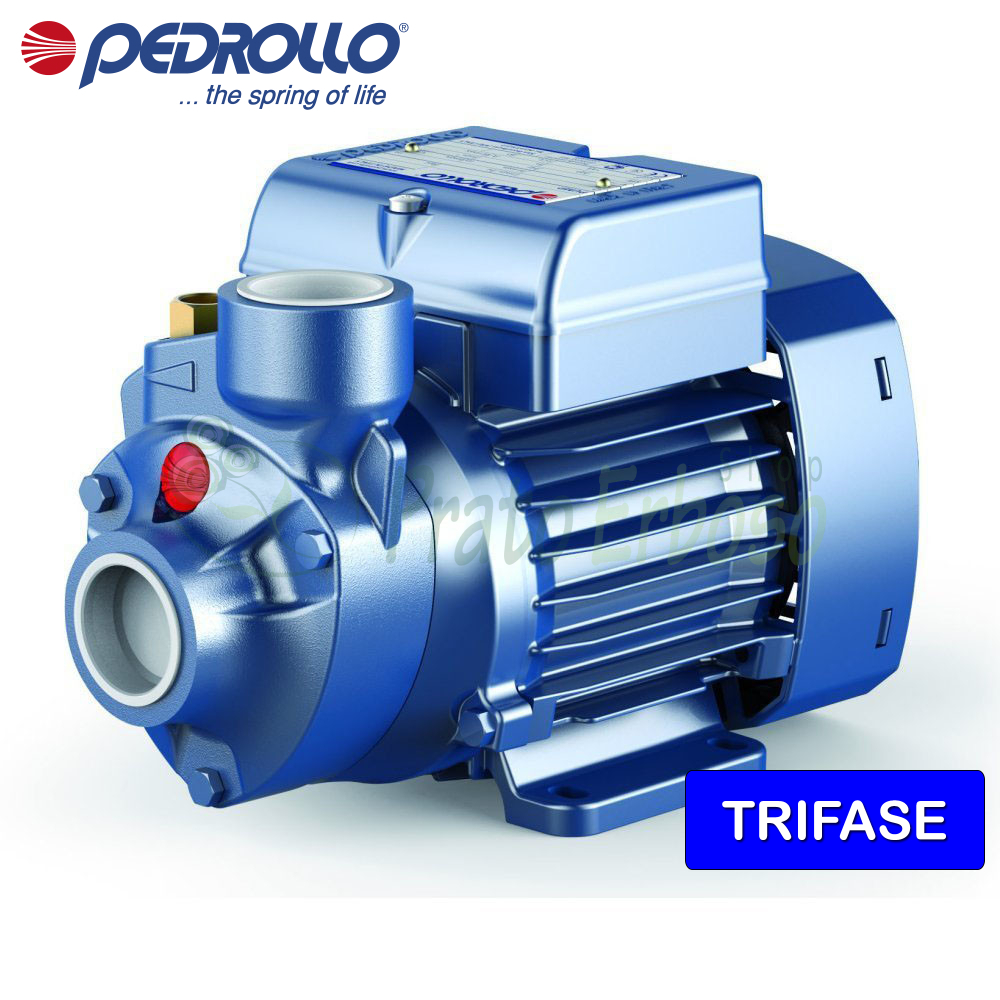

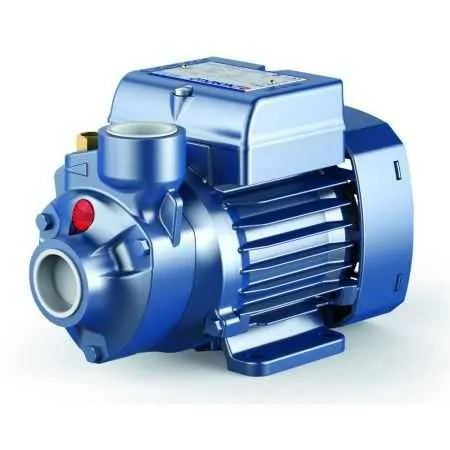

PK 60 - 0.50 HP three-phase peripheral impeller electric pump
Flow rate up to 40 l/min (2.4 m³/h). Head up to 38 m. 0.37 Kw (0.50 HP) motor.
The Pedrollo PK 60 peripheral electric pump is suitable for irrigating small gardens and vegetable gardens.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The PK 60 pump is suitable for water distribution in conjunction with small pressure tanks.
The pump is suitable for domestic applications being very small. Characterized by its high noise with the new revision the pump is less noisy.
In production for over 50 years and with millions of units sold, it is the most economical and versatile product produced by Pedrollo .
The PK 60 is made with top quality materials and components and is a reliable product that guarantees excellent resistance and durability over time.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.30
- Power (HP)
- 0.40
- Absorption at 230V (A)
- 2
- Absorption at 400V (A)
- 1.15
- Suction mouth
- 1 "
- Delivery mouth
- 1 "
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Min. flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 40
- Jobs
- water supply
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 14.5
- Width (cm)
- 20.8
- Depth (cm)
- 9.4
- Weight (Kg)
- 5.2
- Warranty (years)
- 2
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 PK 60 - 0.50 HP three-phase peripheral impeller electric pumpThis product Flow rate up to 40 l/min (2.4 m³/h). Head up to 38 m. 0.37 Kw (0.50 HP) motor. |  PK 65 - 0.75 HP three-phase peripheral impeller electric pumpFlow rate up to 50 l/min (3 m³/h). Head up to 50 m. 0.55 Kw (0.75 HP) motor. |  PK 80 - 1 HP three-phase peripheral impeller electric pumpFlow rate up to 50 l/min (3 m³/h). Head up to 66 m. 0.75 Kw (1 HP) motor |  PK 90 - 1 HP three-phase peripheral impeller electric pumpFlow rate up to 40 l/min (2.4 m³/h). Head up to 82 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.30 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.40 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 2 | Absorption at 230V (A) 3 | Absorption at 230V (A) 3.8 | Absorption at 230V (A) 4 |
| Absorption at 400V (A) | Absorption at 400V (A) 1.15 | Absorption at 400V (A) 1.7 | Absorption at 400V (A) 2.2 | Absorption at 400V (A) 2.3 |
| Suction mouth | Suction mouth 1 " | Suction mouth 1 " | Suction mouth 1 " | Suction mouth 3/4 " |
| Delivery mouth | Delivery mouth 1 " | Delivery mouth 1 " | Delivery mouth 1 " | Delivery mouth 3/4 " |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 5 | Min. flow rate (l./min.) 5 | Min. flow rate (l./min.) 5 | Min. flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 40 | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 40 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 8 | Min. head (m.) 22 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 40 | Max. head (m.) 50 | Max. head (m.) 66 | Max. head (m.) 82 |
| Jobs | Jobs water supply | Jobs water supply | Jobs water supply | Jobs water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +60°C |
| Motor voltage | Motor voltage 230 V, 400V | Motor voltage 230 V, 400V | Motor voltage 230 V, 400V | Motor voltage 230 V, 400V |
| Height (cm) | Height (cm) 14.5 | Height (cm) 15.3 | Height (cm) 17.9 | Height (cm) 17.9 |
| Width (cm) | Width (cm) 20.8 | Width (cm) 23.7 | Width (cm) 28.5 | Width (cm) 27.8 |
| Depth (cm) | Depth (cm) 9.4 | Depth (cm) 10 | Depth (cm) 11.2 | Depth (cm) 11.2 |
| Weight (Kg) | Weight (Kg) 5.2 | Weight (Kg) 6.3 | Weight (Kg) 10 | Weight (Kg) 10.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
