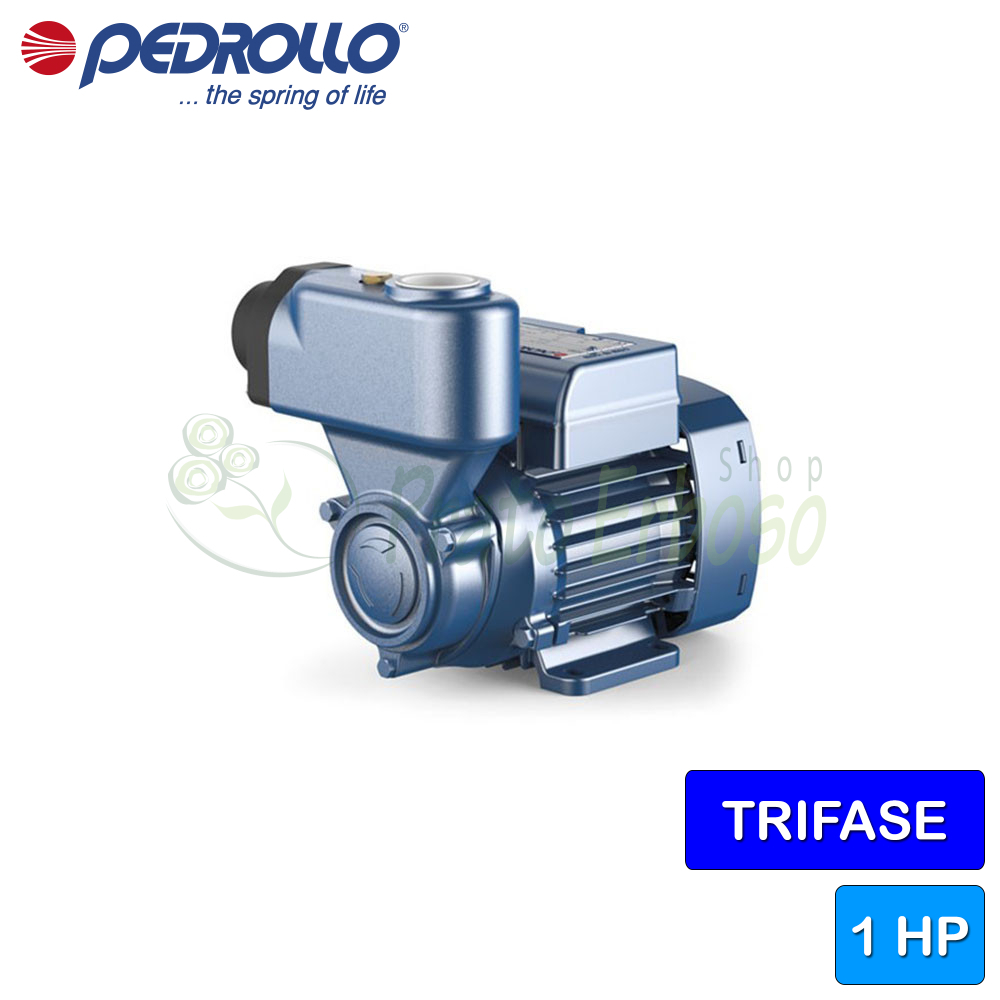

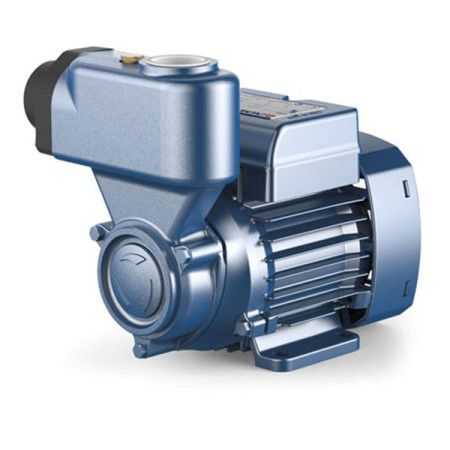

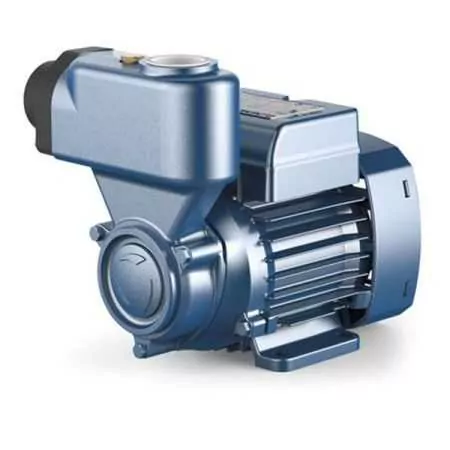

PKS 80 - 1 HP three-phase self-priming electric pump with peripheral impeller
Flow rate up to 50 l/min (3 m³/h). Head up to 70 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo PKS 80 electric pump is recommended for distributing water in combination with small pressure tanks, for irrigating vegetable gardens and gardens and for drawing water from tanks.
Pedrollo has created a compact, reliable and economical product.
Its compactness allows it to be installed without particular problems in a home environment.
The PKS 80 is made of materials such as cast iron, aluminium and stainless steel which make it particularly resistant.
It is supplied with a check valve on the suction side.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.8
- Current consumption at 400V (A)
- 2.2
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 22
- Max. head (m.)
- 70
- Jobs
- water supply
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 19.8
- Width (cm)
- 26.3
- Depth (cm)
- 16
- Weight (Kg)
- 10.5
- Warranty (years)
- 2
PKS models and performance
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PKS 70-80
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
