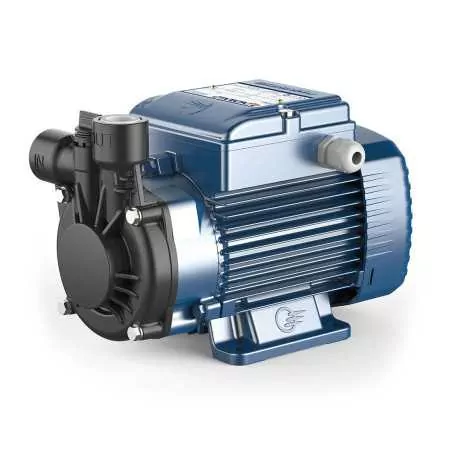

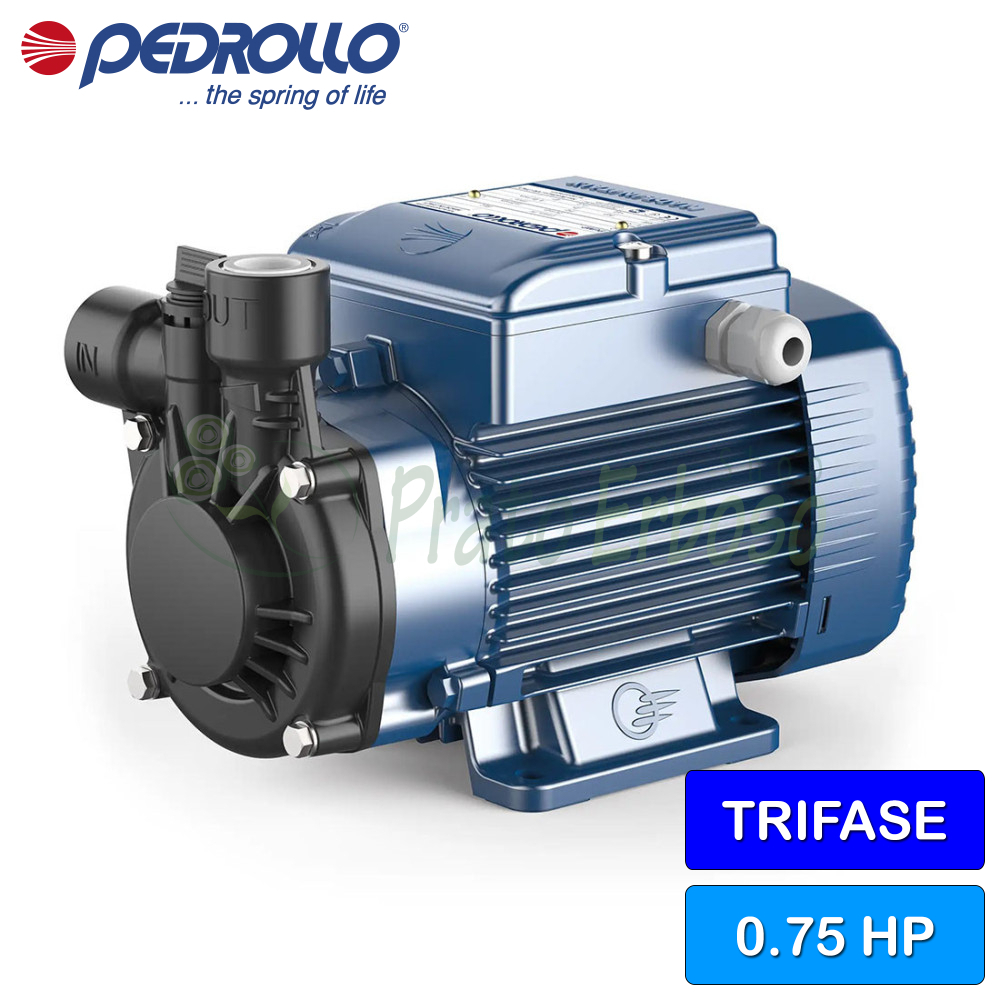

PQ 81-PPS - 0.75 HP three-phase peripheral impeller electric pump
Flow rate up to 90 l/min (1.32 m³/h). Head up to 22 m. 0.55 Kw (0.75 HP) motor.
The Pedrollo PQ 81-PPS peripheral electric pump with radial suction is characterised by the pump body made of PPS.
The operation of the peripheral pump is very simple and reliable, as the movement of the impellers in the pumping body increases the pressure of the pumped water.
The PQ 81-PPS is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The hydraulic characteristics of this pump, combined with their compactness, suggest their use in the industrial sector.
The material used for the pump body is a PPS-based technopolymer reinforced with glass fibre which gives it excellent mechanical characteristics.
The new PPS body, the impeller made of brass, the use of aluminum give this pump produced by Pedrollo a good resistance, despite being economical.
The flow rate ranges from 10 to 90 liters per minute. The head ranges from 2 to 22 meters.
The PQ 81-PPS must be powered by a three-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
This pump has a 1/2 inch suction and delivery port.
The installation must be carried out in well-ventilated closed places or in any case protected from the elements as its certified protection is IPX5.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- Capacitor
- 12.5 µF450 VL
- Absorption at 400V (A)
- Suction mouth
- 1/2 "
- Delivery port
- 1/2 "
- Body Pump
- PPS
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- Max flow (l./min.)
- Min head (m.)
- Max head (m.)
- Employments
- water supply
- Liquid temperature max. (° C)
- Motor voltage
- 230 V
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight kg)
- Guarantee
- 2
