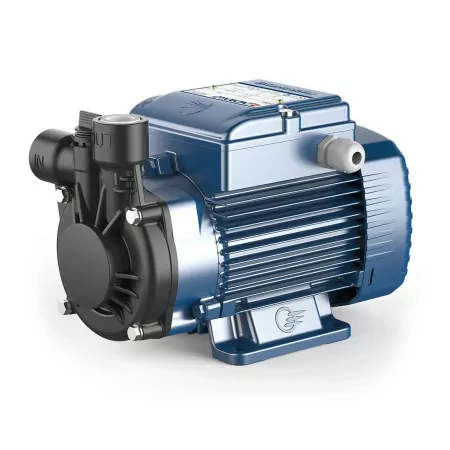

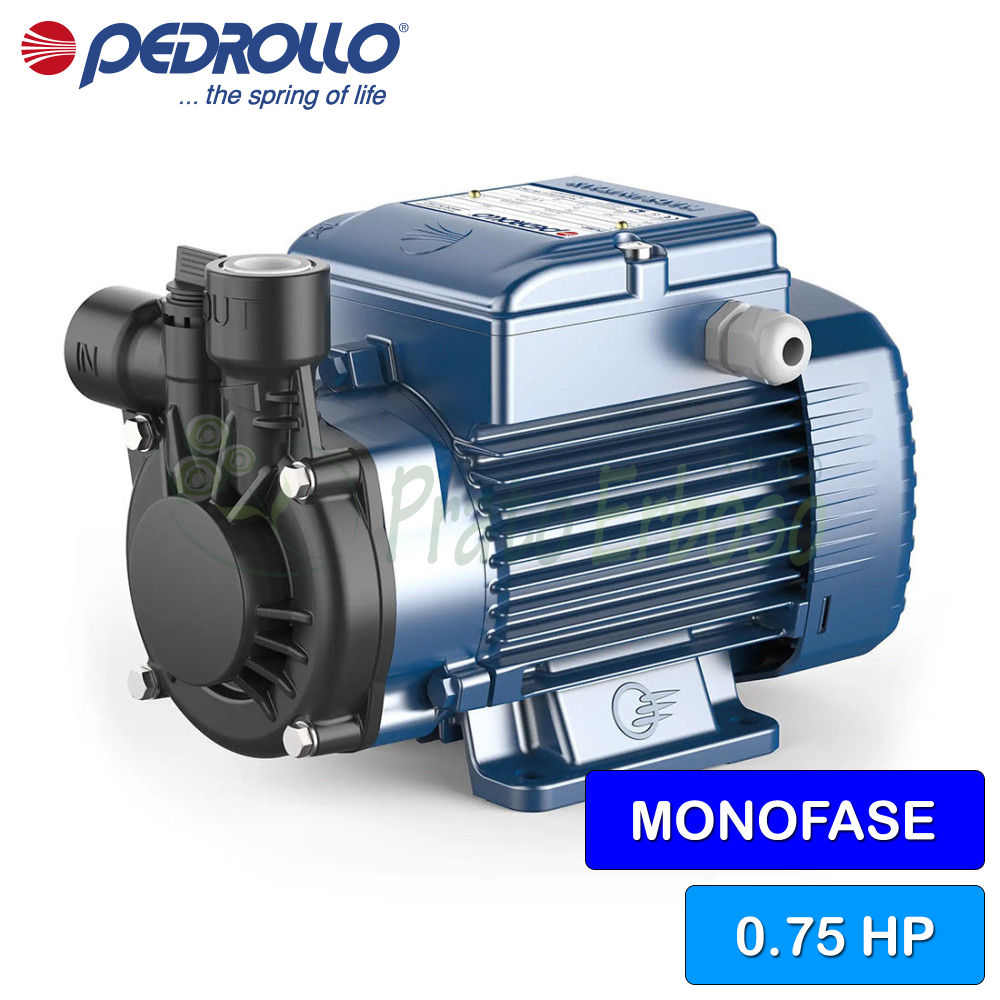

PQm 81-PPS - 0.75 HP single-phase peripheral impeller electric pump

Flow rate up to 90 l/min (1.32 m³/h). Head up to 22 m. 0.55 Kw (0.75 HP) motor.

€226.43 Tax included

€185.60 Tax excluded

€353.80-36%

There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PQm 81-PPS - 0.75 HP single-phase peripheral impeller electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The Pedrollo PQm 81-PPS peripheral electric pump with radial suction is characterised by the pump body made of PPS.

The operation of the peripheral pump is very simple and reliable, as the movement of the impellers in the pumping body increases the pressure of the pumped water.

The PQm 81-PPS is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.

The hydraulic characteristics of this pump, combined with their compactness, suggest their use in the industrial sector.

The material used to make the pump body of the PQm 81-PPS is a PPS-based technopolymer reinforced with glass fibre which gives it excellent mechanical characteristics.

The new PPS body, the impeller made of brass, the use of aluminum give this pump produced by Pedrollo a good resistance, despite being economical.

The flow rate ranges from 10 to 90 liters per minute. The head ranges from 2 to 22 meters.

The PQm 81-PPS must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.

This pump has a 1/2 inch suction and delivery port.

The installation must be carried out in well-ventilated closed places or in any case protected from the elements as its certified protection is IPX5.

Data sheet
Pedrollo
PQm 81-PPS
45 Items
41PQ88YA1
Motor connection
SINGLE PHASE
Power (Kw)
0.55
Power (HP)
0.75
Absorption at 230V (A)
3.5
Capacitor
12.5 µF450 VL
Suction mouth
1/2 "
Delivery mouth
1/2 "
Pump body
PPS
Impeller
Brass
Number of impellers
1
Crankshaft
AISI 431 stainless steel
Degree of protection
IP 44
Min. flow rate (l./min.)
10
Max. flow rate (l./min.)
90
Min. head (m.)
2
Max. head (m.)
22
Jobs
water supply
Max. liquid temperature (°C)
+90°C
Motor voltage
230 V
Height (cm)
16.3
Width (cm)
12
Depth (cm)
22.3
Weight (Kg)
6.5
Warranty (years)
2
Attachments

Technical data sheet PQ 81-PPS

Models, performance curves and construction characteristics of Pedrollo pumps of the PQ 81-PPS series

file_download Download (446.18KB)
