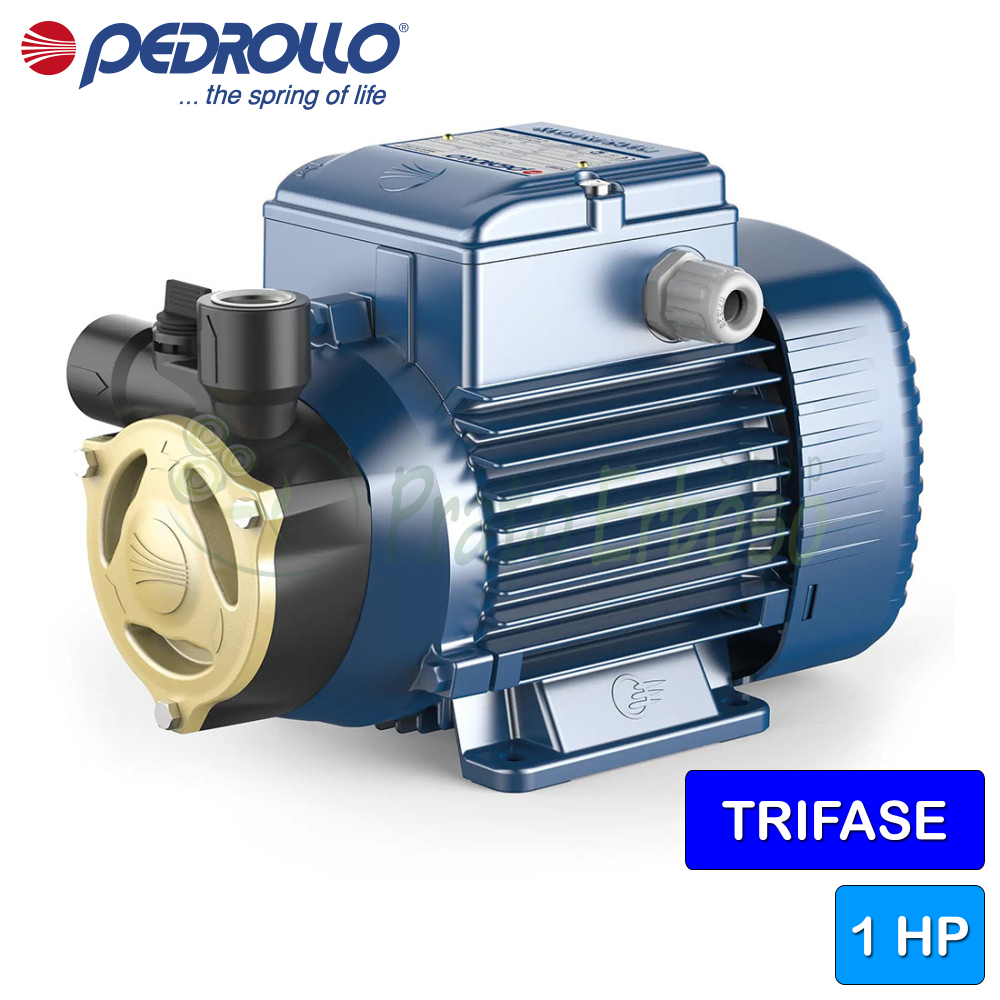

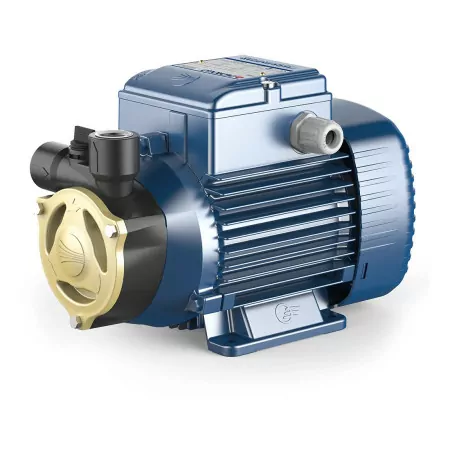

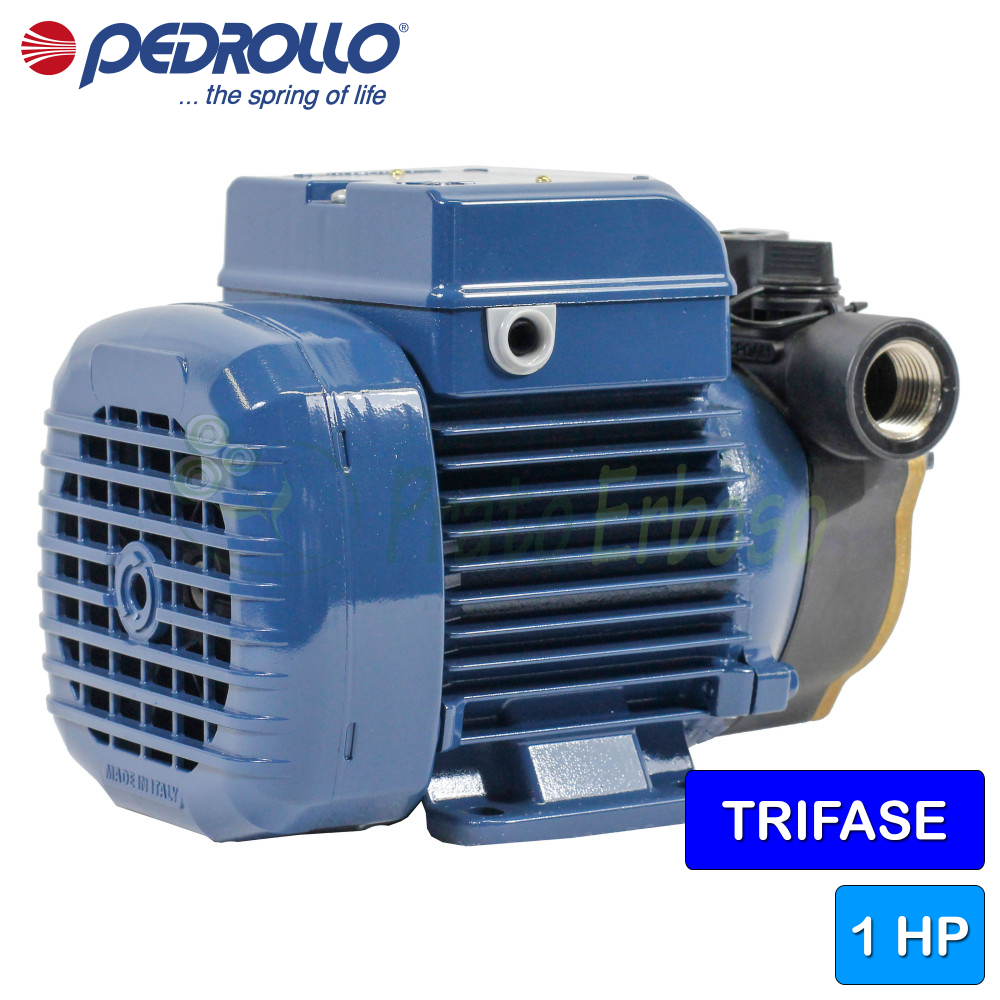

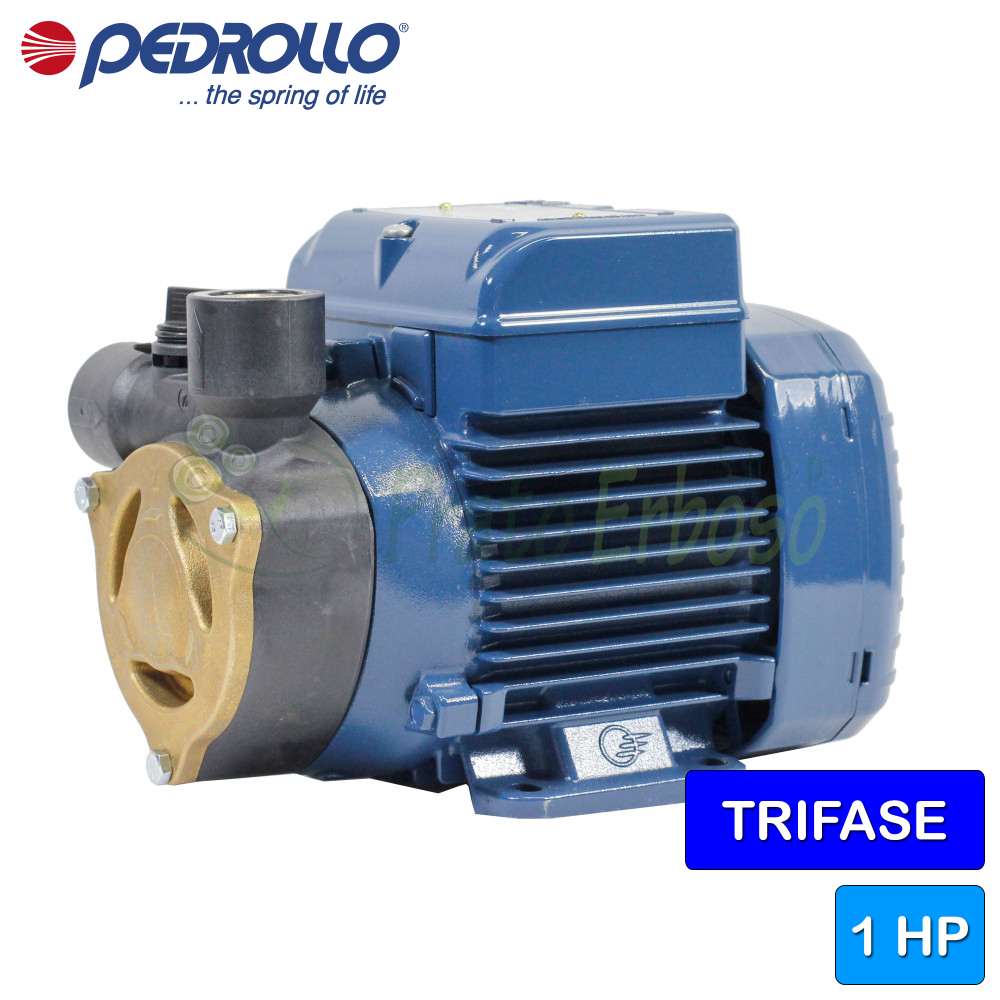

PQA 90 - 1 HP three-phase peripheral impeller electric pump
Flow rate up to 38 l/min (2.28 m³/h). Head up to 92 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 |
Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. |
Wednesday 4 February - Thursday 5 February |
 |
Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. |
Wednesday 4 February - Thursday 5 February |
 |
DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. |
Wednesday 4 February - Thursday 5 February |
 |
Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. |
Wednesday 4 February |
 |
Ritiro in negozio | Choose where to collect your order within 24/48 hours. |
Wednesday 4 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 4 February - Thursday 5 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 4 February - Thursday 5 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 4 February - Thursday 5 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 4 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 4 February
The Pedrollo PQA 90 electric pump is solid and robust.
Pedrollo used materials such as brass, cast iron, aluminum, and stainless steel, which provide strength and durability.
Recommended for pumping clean water without abrasive particles and liquids that are not aggressive towards the constituent materials.
The PQAm 70 is constructed of PPS with a brass front cover which offers a guarantee against rust formation and oxidation.
It has a flow rate ranging from 2 to 38 litres per minute and a head ranging from 6 to 92 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.2
- Current consumption at 400V (A)
- 2.4
- Suction mouth
- 1/2"
- Delivery mouth
- 1/2"
- Pump body
- PPS
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 38
- Min. head (m.)
- 6
- Max. head (m.)
- 92
- Jobs
- cooling systems
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 17.9
- Width (cm)
- 26.0
- Depth (cm)
- 13.4
- Weight (Kg)
- 9.4
- Warranty (years)
- 2
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | ST1-12 |
| LP diameter | 12 |
| Fixed ring LP | Silicon carbide |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Reinforced technopolymer |
| 2.0 - Cover | Brass CW617N EN 12165 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
PQA 90 - 1 HP three-phase peripheral impeller electric pumpThis product Flow rate up to 38 l/min (2.28 m³/h). Head up to 92 m. 0.75 Kw (1 HP) motor. |
PQA 60 - 0.40 HP three-phase peripheral impeller electric pumpFlow rate up to 32 l/min (1.92 m³/h). Head up to 40.5 m. 0.30 Kw (0.40 HP) motor. |
PQA 70 - 0.75 HP three-phase peripheral impeller electric pumpFlow rate up to 45 l/min (2.7 m³/h). Head up to 68 m. 0.55 Kw (0.75 HP) motor. |
|
|---|---|---|---|
| Price |
Price
€461.16
-42%
€267.47
|
Price
€283.04
-42%
€164.16
|
Price
€429.44
-42%
€249.08
|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.30 | Power (Kw) 0.55 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.40 | Power (HP) 0.75 |
| Absorption at 230V (A) | Absorption at 230V (A) 4.2 | Absorption at 230V (A) -- | Absorption at 230V (A) 4.2 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 2.4 | Current consumption at 400V (A) -- | Current consumption at 400V (A) 2.4 |
| Suction mouth | Suction mouth 1/2" | Suction mouth 1/2" | Suction mouth 1/2" |
| Delivery mouth | Delivery mouth 1/2" | Delivery mouth 1/2" | Delivery mouth 1/2" |
| Pump body | Pump body PPS | Pump body PPS | Pump body PPS |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 44 | Degree of protection IP 55 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 2 | Minimum flow rate (l./min.) 2 | Minimum flow rate (l./min.) 2 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 38 | Max. flow rate (l./min.) 32 | Max. flow rate (l./min.) 45 |
| Min. head (m.) | Min. head (m.) 6 | Min. head (m.) 5 | Min. head (m.) 10 |
| Max. head (m.) | Max. head (m.) 92 | Max. head (m.) 40.5 | Max. head (m.) 68 |
| Jobs | Jobs cooling systems | Jobs cooling systems | Jobs cooling systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 400V | Motor voltage 400V | Motor voltage 400V |
| Height (cm) | Height (cm) 17.9 | Height (cm) 14.5 | Height (cm) 17.9 |
| Width (cm) | Width (cm) 26.0 | Width (cm) 19.8 | Width (cm) 26.1 |
| Depth (cm) | Depth (cm) 13.4 | Depth (cm) 11.6 | Depth (cm) 13.4 |
| Weight (Kg) | Weight (Kg) 9.4 | Weight (Kg) 4.7 | Weight (Kg) 9.3 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
