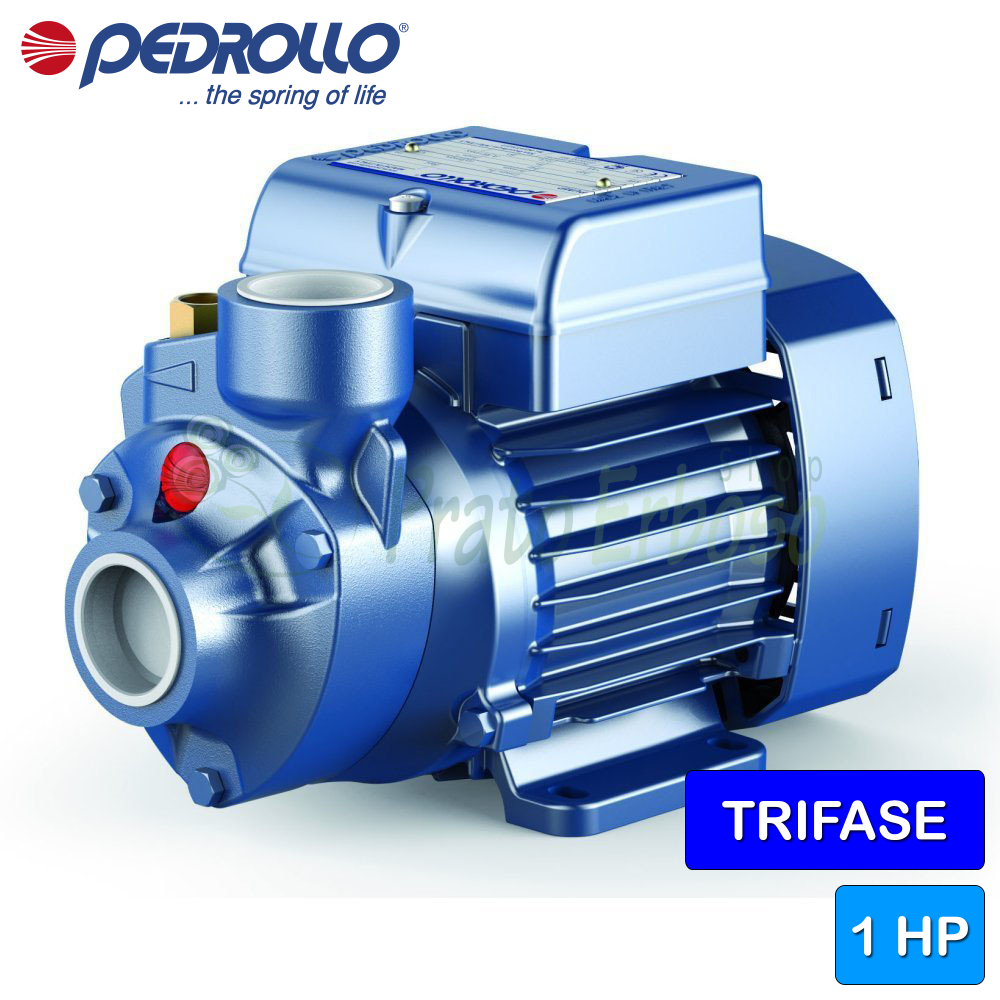

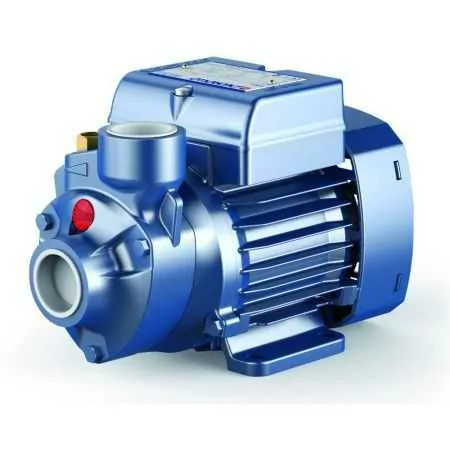

PK 90 - 1 HP three-phase peripheral impeller electric pump
Flow rate up to 40 l/min (2.4 m³/h). Head up to 82 m. 0.75 Kw (1 HP) motor.




The Pedrollo PK 90 peripheral electric pump is suitable for domestic applications.
Suitable for water distribution in combination with small pressure tanks and for irrigating vegetable gardens and gardens.
The PK 90 pump is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The noise level has been reduced by 20% compared to the previous version.
The PK 90 is the only one in the PK series that has a 3/4 inch suction and delivery port.
The flow rate ranges from 5 to 40 liters per minute. The head ranges from 5 to 82 meters.
Made with high quality materials and components, it is resistant and reliable.
Installation must be carried out indoors or in any case protected from the elements.
The weight of the PK 90 is still low, weighing only 10 kilograms.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4
- Absorption at 400V (A)
- 2.3
- Suction mouth
- 3/4 "
- Delivery mouth
- 3/4 "
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Min. flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 82
- Jobs
- water supply
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 17.9
- Width (cm)
- 27.8
- Depth (cm)
- 11.2
- Weight (Kg)
- 10.1
- Warranty (years)
- 2
|
|
|
|

Bearings
Pump side motor bearing | 6203 ZZ |
Opposite side motor bearing | 6203 ZZ |
Shaft seal
Type of seal | Single Mechanical Seal |
Pump side model | ST1-12 |
LP diameter | 12 |
Fixed ring LP | Silicon carbide |
Rotating ring LP | Graphite |
LP elastomer | NBR |
Mat
1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
2.1 - Seal holder cover | Brass CW617N EN 12165 |
3.0 - Impeller | Brass CW617N EN 12165 |
4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
6.0 - Motor holder | Aluminum EN-AB 46100 |
6.1 - Engine cover | Aluminum EN-AB 46100 |
7.0 - Lantern | Aluminum EN-AB 46100 |
