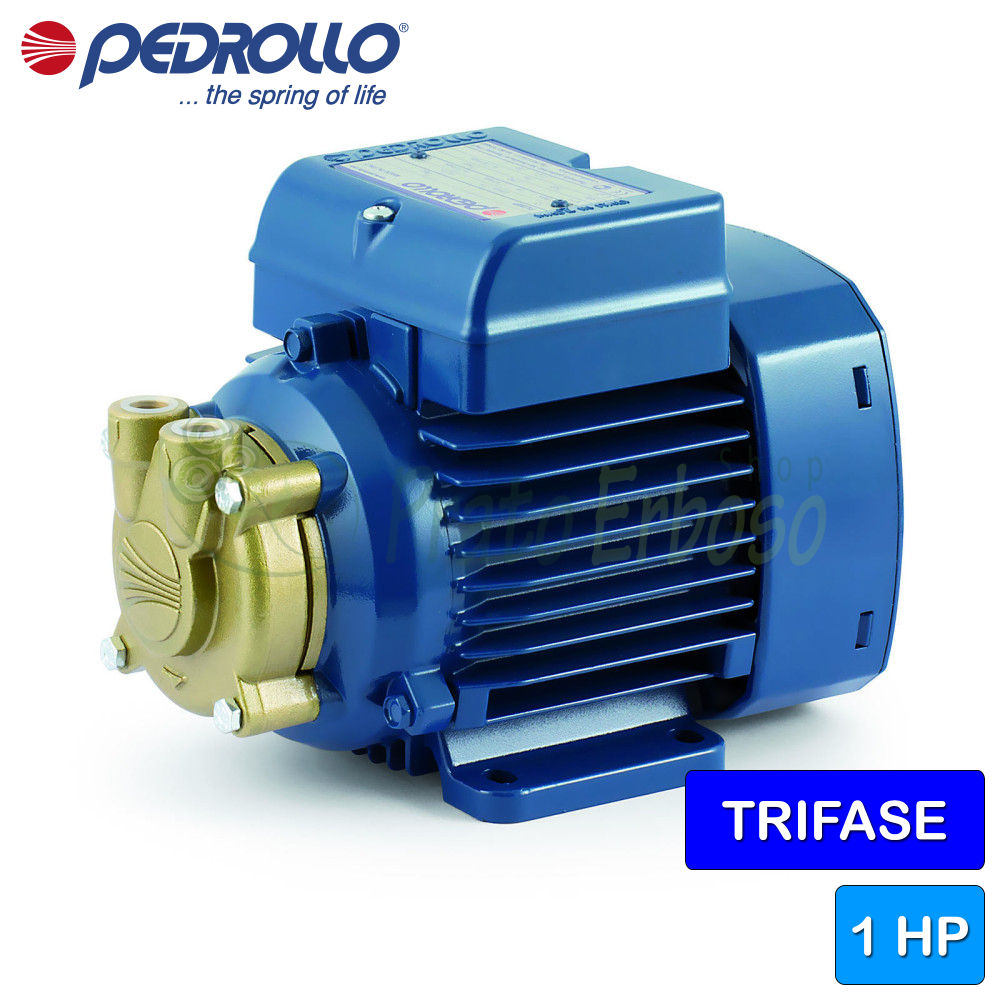

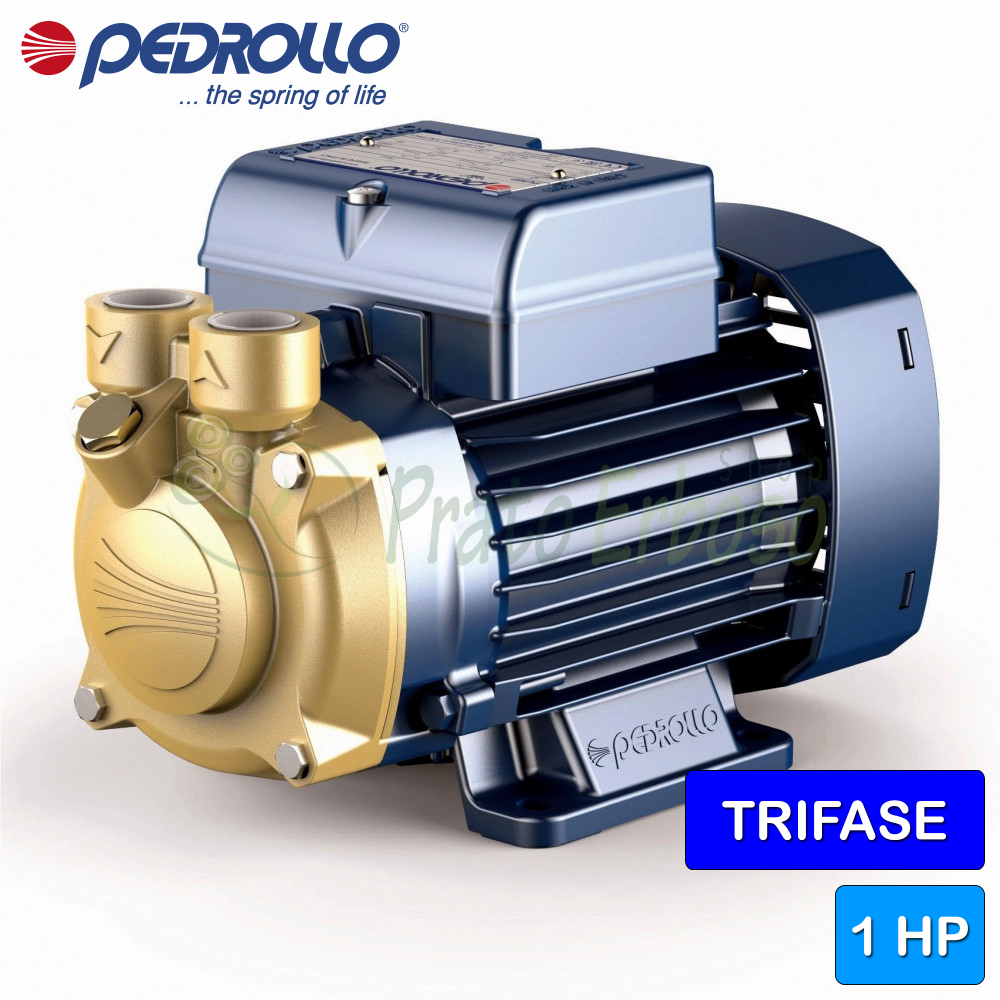

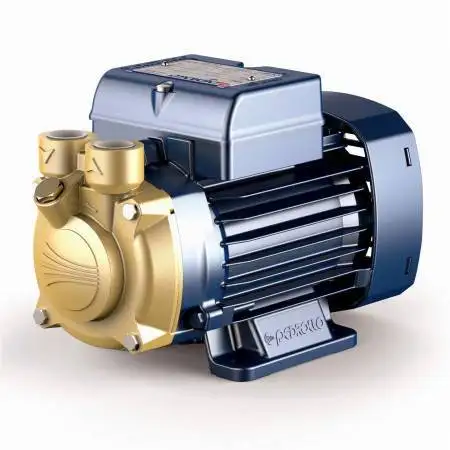

PV 90 - 1 HP three-phase peripheral impeller electric pump

Name: PV 90 - 1 HP three-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PV 90
Price: 285.87 EUR
Availability: InStock

Flow rate up to 36 l/min (2.16 m³/h). Head up to 105 m. 0.75 Kw (1 HP) motor.

Variants:

Order it before 12:00 of tomorrow and receive it between Monday 28 April and Tuesday 29 April with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Monday 28 April - Tuesday 29 April
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Monday 28 April - Tuesday 29 April
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Monday 28 April - Tuesday 29 April

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 28 April - Tuesday 29 April

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Monday 28 April - Tuesday 29 April

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 28 April - Tuesday 29 April

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials making up the pump.

The construction features of this particularly compact brass pump are a sure guarantee against the formation of rust and oxidation; these features suggest its use in industrial fields such as cooling and air conditioning.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 4.2
Absorption at 400V (A): 2.4
Suction mouth: 3/4 "
Delivery mouth: 3/4 "
Pump body: Brass, provided with ISO 228/1 threaded ports
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 55
Min. flow rate (l./min.): 2
Max. flow rate (l./min.): 36
Min. head (m.): 7
Max. head (m.): 105
Jobs: air conditioning systems
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 18.0
Width (cm): 27.5
Depth (cm): 13.4
Weight (Kg): 9.3
Warranty (years): 2

Attachments

PV data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PV series pumps.

Download (1.04MB)

Spare parts sheet PV 90

Exploded view and spare parts table of versions 0, A, B, C of the Pedrollo PV 90 pump.

Download (2.33MB)

Models and PV performances

GUY

three-phase

HP 60

PV 81

HP 65

HP 70

HP 90

POWER
KW	HP
0.37	0.50
0.37	0.50
0.60	0.85
0.90	1.20
0.90	1.20

PERFORMANCE
Q litres/min	H meters
2 ÷ 32	43 ÷ 5
2 ÷ 17	85 ÷ 5
2 ÷ 42	58 ÷ 5
2 ÷ 45	74 ÷ 5
2 ÷ 45	100 ÷ 5

MOUTH
wait.	send.
1/2"	1/2"
3/4"	3/4"

Q	m³/hour	0	0.12	0.30	0.60	0.90	1.02	1.2	1.5	1.8	1.9	2.1	2.5	2.7
Q	l/min	0	2	5	10	15	17	20	25	30	32	35	42	45
H	meters	43	41	37.5	31.5	25.5	23	19.5	13	7.5	5
		85	75	61	38	15	5
		58	55	51	45	39	36	32.5	26	20	17.5	14	5
		74	70	65.5	58	50	47	43	35	28	25	20	9.5	5
		100	95	87	73	59.5	54	46	32	19	13	5

Construction data of the PV 70-90

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100

Compare with Similar Products

	PV 90 - 1 HP three-phase peripheral impeller electric pump This product Flow rate up to 36 l/min (2.16 m³/h). Head up to 105 m. 0.75 Kw (1 HP) motor.	PV 81 - 0.50 HP three-phase peripheral impeller electric pump Quick View Flow rate up to 17 l/min (1.02 m³/h). Head up to 86 m. 0.37 Kw (0.50 HP) motor.	PV 65 - 0.75 HP three-phase peripheral impeller electric pump Quick View Flow rate up to 40 l/min (2.4 m³/h). Head up to 58 m. 0.55 Kw (0.75 HP) motor.	PV 70 - 1 HP three-phase peripheral impeller electric pump Quick View Flow rate up to 45 l/min (2.7 m³/h). Head up to 74 m. 0.75 Kw (1 HP) motor.
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 0.75	Power (Kw) 0.37	Power (Kw) 0.55	Power (Kw) 0.75
Power (HP)	Power (HP) 1	Power (HP) 0.50	Power (HP) 0.75	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 4.2	Absorption at 230V (A) 2.1	Absorption at 230V (A) 2.6	Absorption at 230V (A) 4.2
Absorption at 400V (A)	Absorption at 400V (A) 2.4	Absorption at 400V (A) 1.2	Absorption at 400V (A) 1.5	Absorption at 400V (A) 2.4
Suction mouth	Suction mouth 3/4 "	Suction mouth 1/2 "	Suction mouth 1/2 "	Suction mouth 3/4 "
Delivery mouth	Delivery mouth 3/4 "	Delivery mouth 1/2 "	Delivery mouth 1/2 "	Delivery mouth 3/4 "
Pump body	Pump body Brass, provided with ISO 228/1 threaded ports	Pump body Brass, provided with ISO 228/1 threaded ports	Pump body Brass, provided with ISO 228/1 threaded ports	Pump body Brass, provided with ISO 228/1 threaded ports
Impeller	Impeller Brass	Impeller Brass	Impeller Brass	Impeller Brass
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 55	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 55
Min. flow rate (l./min.)	Min. flow rate (l./min.) 2	Min. flow rate (l./min.) 2	Min. flow rate (l./min.) 2	Min. flow rate (l./min.) 2
Max. flow rate (l./min.)	Max. flow rate (l./min.) 36	Max. flow rate (l./min.) 17	Max. flow rate (l./min.) 40	Max. flow rate (l./min.) 45
Min. head (m.)	Min. head (m.) 7	Min. head (m.) 6	Min. head (m.) 7	Min. head (m.) 7
Max. head (m.)	Max. head (m.) 105	Max. head (m.) 86	Max. head (m.) 58	Max. head (m.) 74
Jobs	Jobs air conditioning systems	Jobs air conditioning systems	Jobs air conditioning systems	Jobs air conditioning systems
Max. liquid temperature (°C)	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C	Max. liquid temperature (°C) +90°C
Motor voltage	Motor voltage 400V	Motor voltage 400V	Motor voltage 400V	Motor voltage 400V
Height (cm)	Height (cm) 18.0	Height (cm) 15.2	Height (cm) 15.2	Height (cm) 18.0
Width (cm)	Width (cm) 27.5	Width (cm) 24.1	Width (cm) 24.35	Width (cm) 27.6
Depth (cm)	Depth (cm) 13.4	Depth (cm) 12.0	Depth (cm) 12.0	Depth (cm) 13.4
Weight (Kg)	Weight (Kg) 9.3	Weight (Kg) 6.8	Weight (Kg) 6.8	Weight (Kg) 9.5
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
