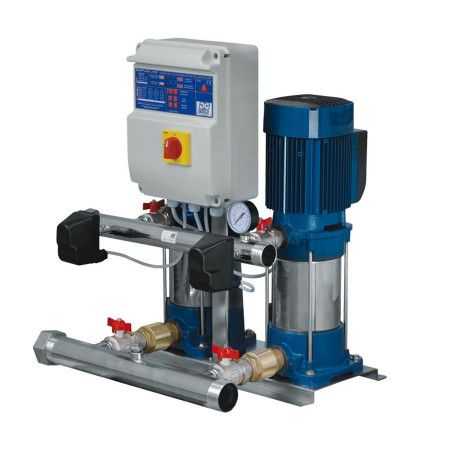

CB2 - MK 8/5 - 2x2 HP three-phase pressure group

Name: CB2 - MK 8/5 - 2x2 HP three-phase pressure group
Brand: Pedrollo
SKU: CB2 - MK 8/5
Price: 2059.3 EUR
Availability: InStock

2 THREE-PHASE ELECTRIC PUMPS.

2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 70 m.

€2,059.30 Tax included

€1,687.95 Tax excluded

€3,744.18 -45%

Quantity

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

COMBIPRESS are pressure groups with two electric pumps assembled in a ready-to-install unit.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The electronic circuit in the electrical panel alternates the operation of the pumps.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 3.6
Power (HP): 4
Current consumption at 400V (A): 7
Suction mouth: 2" 1/2
Delivery mouth: 1" 1/2
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 360
Min. head (m.): 18
Max. head (m.): 70
Height (cm): 74.2
Width (cm): 53
Depth (cm): 86.8
Weight (Kg): 68
Warranty (years): 2

Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - MK models and performances

GUY

single phase

CB2 - MK 3/3

CB2 - MK 3/5

CB2 - MK 3/6

CB2 - MK 5/4

CB2 - MK 5/5

CB2 - MK 5/7

CB2 - MK 5/8

CB2 - MK 8/4

CB2 - MK 8/5

CB2 - MK 8/6

POWER
KW	HP
2x0.75	2x1
2x1.1	2x1.5
2x1.5	2x2
2x1.1	2x1.5
2x1.1	2x1.5
2x1.8	2x2.5
2x2.2	2x3
2x1.5	2x2
2x1.8	2x2.5
2x2.2	2x3

MAX. CAPACITY
m³/h
9.6
9.6
9.6
14.4
14.4
14.4
14.4
21.6
21.6
21.6

MAX. HEAD
m
50
83
100
55
69
96
110
54
67.5
82

COLLECTORS
DN1	DN2
2"	1 1/2"
2 1/2"	1 1/2"

Q	m³/hour	0	1.2	2.4	4.8	7.2	9.6	12	14.4	16.8	19.2	21.6
Q	l/min	0	2	40	80	120	160	200	240	280	320	360
H	meters	52	50	49	45	38	28
		87	83	82	75	63.5	47
		104	100	98	90	76	56
		56	-	55	52.5	48	41.5	32	20
		70	-	69	66	60	51.5	40	25
		98	-	96	92.5	84	72.5	56	34
		112	-	110	105.5	96	82.5	64	40
		56	-	-	54	52	50	46	39	31.5	24	15
		70	-	-	67.5	66	63	58	50	40	30	18
		86	-	-	82	78	74	68	58	46.5	35	20
