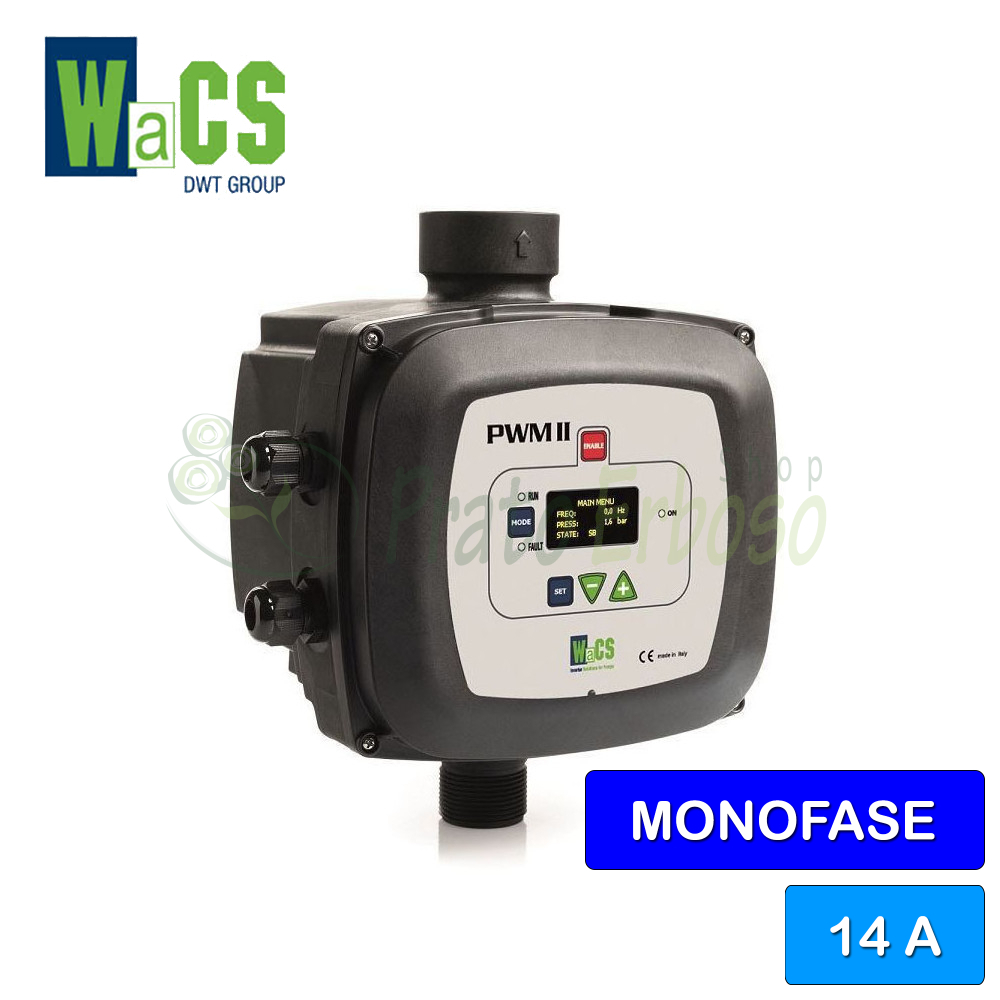

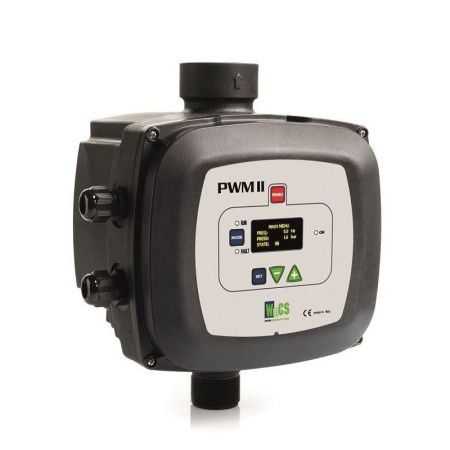

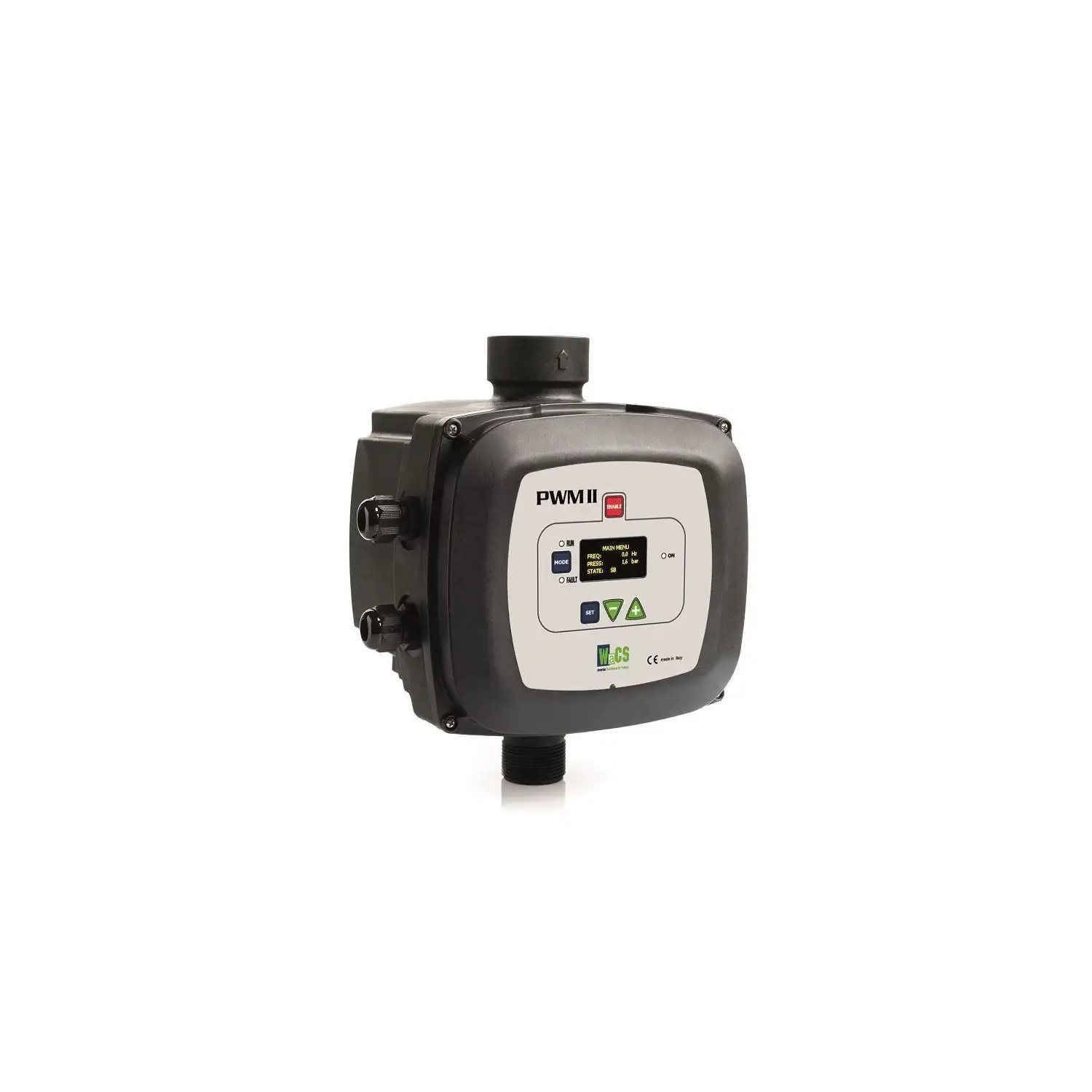

PWM II 230 1 Basic DV/14 - 14 A single-phase inverter
Telephone support for information before purchasing.
After-sales assistance for product installation.
After-sales assistance in the correct use of the product.
Description
The PWM 230 1 Basic DV / 14 inverter is a static frequency converter specially developed for driving single-phase electric pumps.
Continuously regulates the rotation speed of the electric pump, so as to maintain constant pressure as the flow rate varies.
The inverter regulates the rotation speed of the electric pump, never bringing it to maximum revs.
The PWM II 230 1 Basic DV/14 always makes the pump work on the flow-head curves with the best mechanical efficiency, thus ensuring maximum life and achieving maximum energy savings.
Data sheet
- Power (HP)
- 2.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
- Degree of protection
- IP 55
- Max. flow rate (l./min.)
- Max. working pressure (bar)
- Output Voltage (Volts)
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 14
- Overcurrent protection
- No
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Weight (Kg)
- Warranty (years)
- 2
- Motor phase frequency (Hz)
- 50, 60
From the same brand and category
-
€455.00 tax incl. -
€623.42 tax incl. -
€636.84 tax incl. -
€774.70 tax incl. -
€1,099.22 tax incl. -
€1,372.50 tax incl.
Compare with Similar Products
 PWM II 230 1 Basic DV/14 - 14 A single-phase inverterThis product For single-phase pumps up to 2.5 HP. Single-phase/single-phase. |  Active Driver Plus M/M 1.8 - 14 A single-phase inverterFor single-phase pumps up to 2.5 HP. Single-phase/single-phase. |  STEADYPRES MM 16 - 16 A single-phase inverterFor single-phase pumps up to 3 HP. Single-phase/single-phase. | |
|---|---|---|---|
| Price | Price €735.66 | Price €735.66 | Price €869.86 -42% €504.52 |
| Power (HP) | Power (HP) 2.5 | Power (HP) 2.5 | Power (HP) 3 |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) -- |
| Max. working pressure (bar) | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Output Voltage (Volts) | Output Voltage (Volts) -- | Output Voltage (Volts) -- | Output Voltage (Volts) -- |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply single phase | Engine power supply single phase | Engine power supply single phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 14 | Motor Phase Current (Amperes) 14 | Motor Phase Current (Amperes) 16 |
| Overcurrent protection | Overcurrent protection No | Overcurrent protection Yes | Overcurrent protection Yes |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) 28.2 | Height (cm) 28.2 | Height (cm) 23.5 |
| Width (cm) | Width (cm) 23.7 | Width (cm) 23.7 | Width (cm) 27.9 |
| Depth (cm) | Depth (cm) 18.4 | Depth (cm) 18.4 | Depth (cm) 24.1 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
