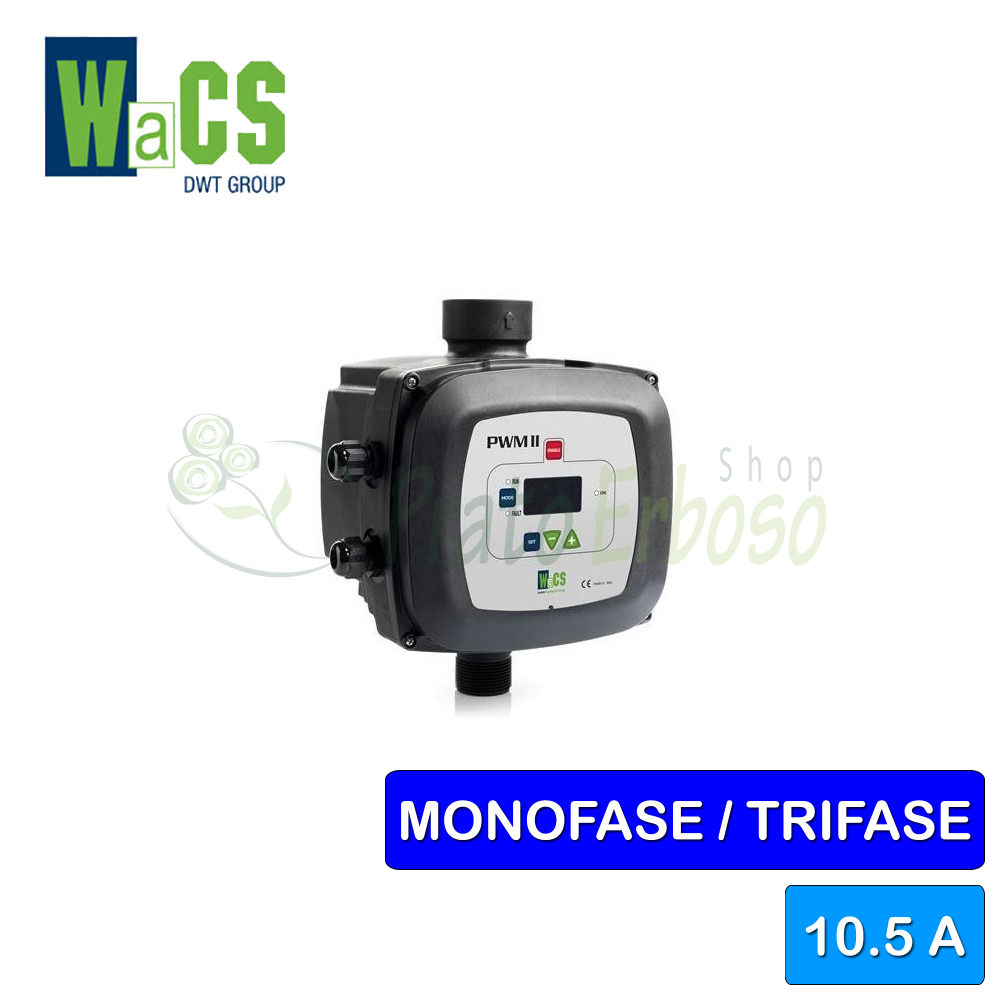

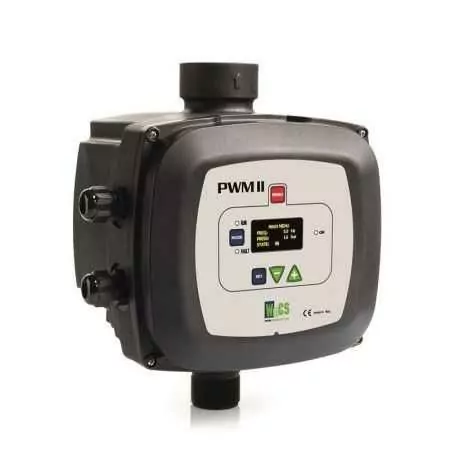

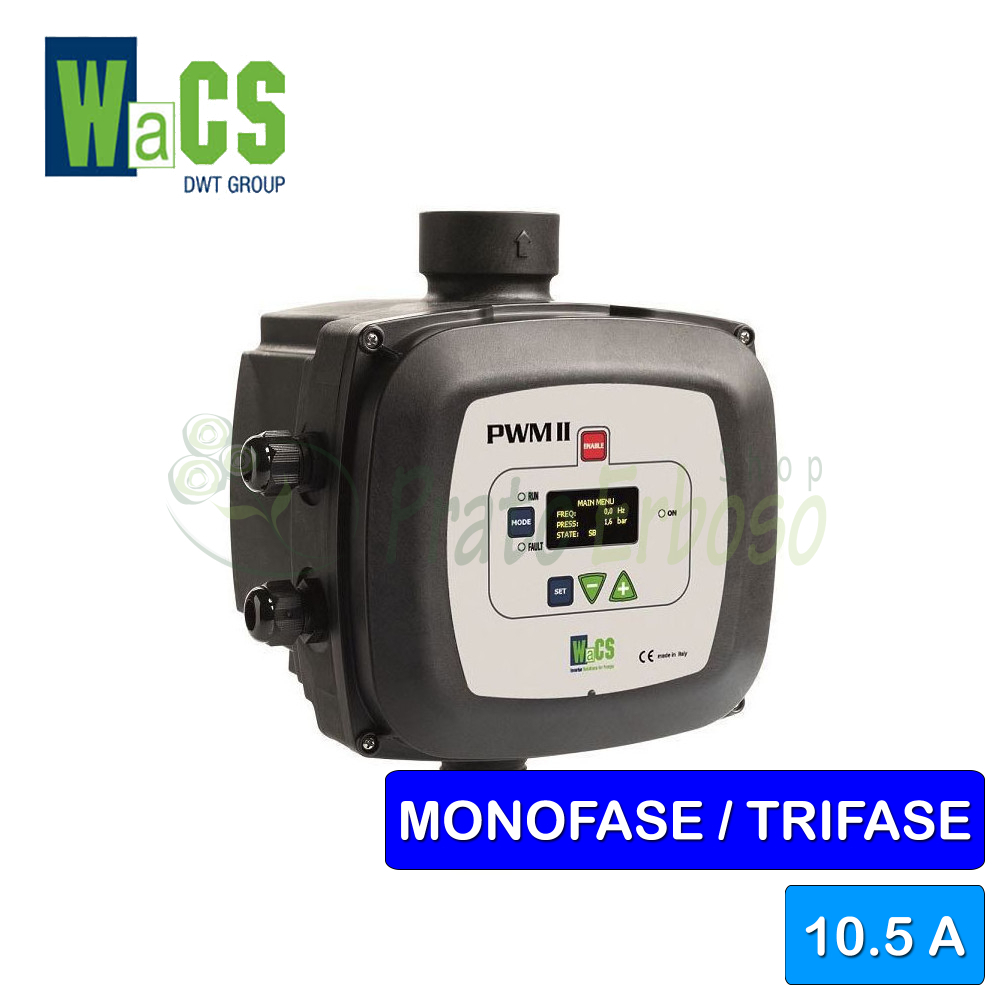

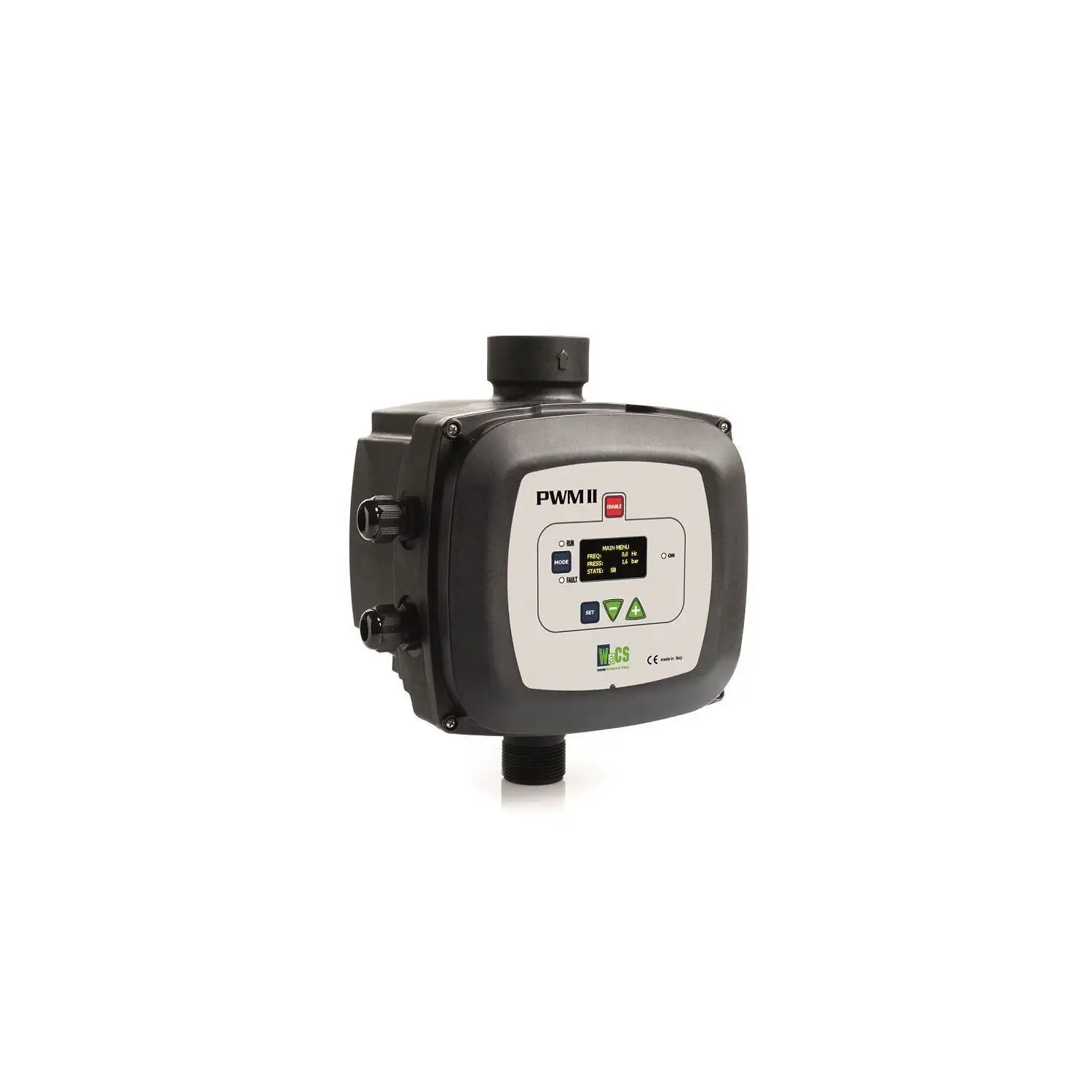

PWM II 230 D/10.5 - 10.5 A single-phase/three-phase inverter
For three-phase pumps up to 3 HP with single-phase power supply.
The PWM II 230 D / 10.5 is an integrated system for the variable speed control (INVERTER) of electric pumps, capable of maintaining constant pressure as the flow rate varies.
Thanks to the various possible settings and the availability of configurable input and output contacts, it is possible to adapt the operation of the PWM system to the needs of various systems.
The PWM II 230 D / 10.5pilota model drives electric pumps with standard three-phase asynchronous motors while being powered by a single-phase line. The supply voltage of the installed electric pump motor must be 230V 50Hz three-phase. The load connected to the PWM 230 must not exceed 10.5 Amps in phase current.
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
- Degree of protection
- IP 55
- Max. flow rate (l./min.)
- 300
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 22
- Line phases
- 1 x 230 V
- Engine power supply
- three-phase
- Motor voltage
- 230 V
- Engine phases
- 3 x 230V
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Warranty (years)
- 2
-
