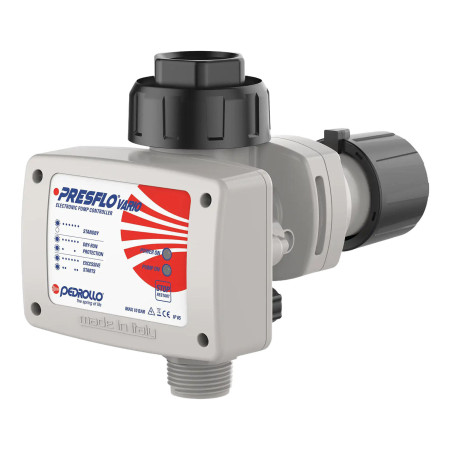

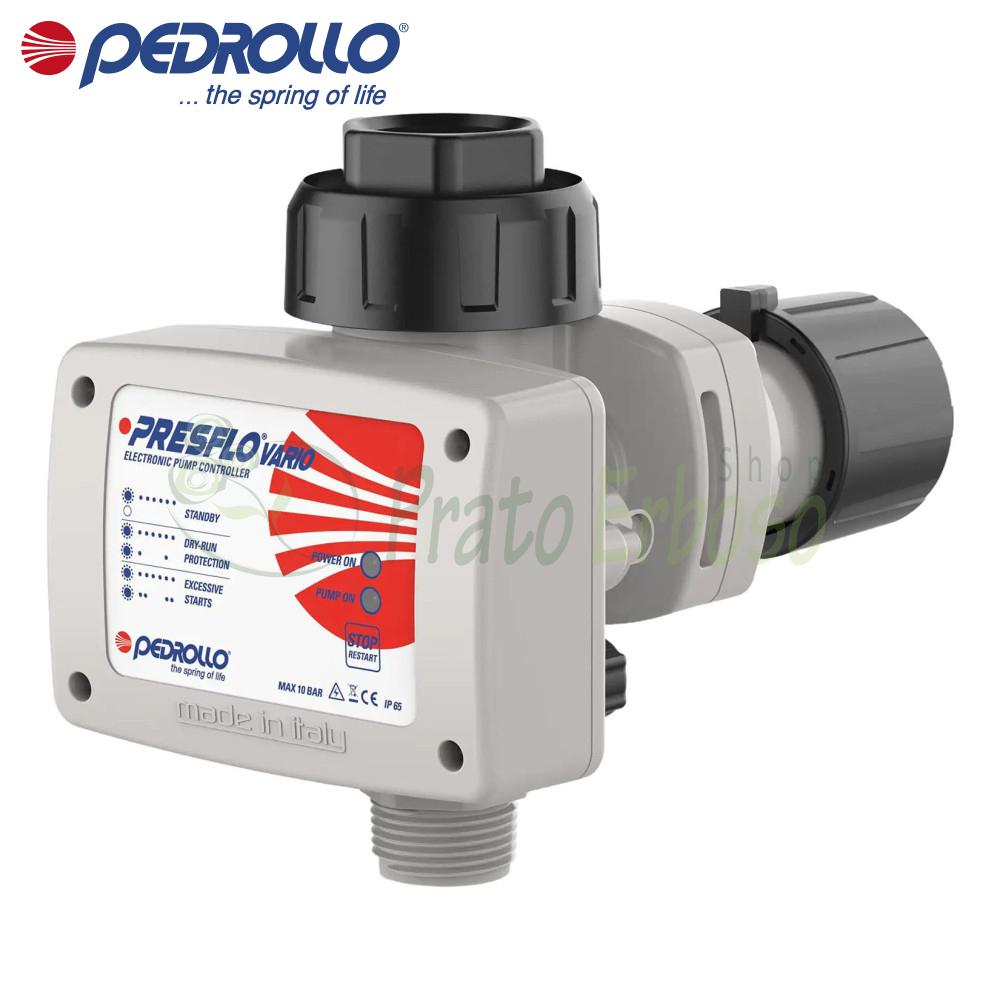

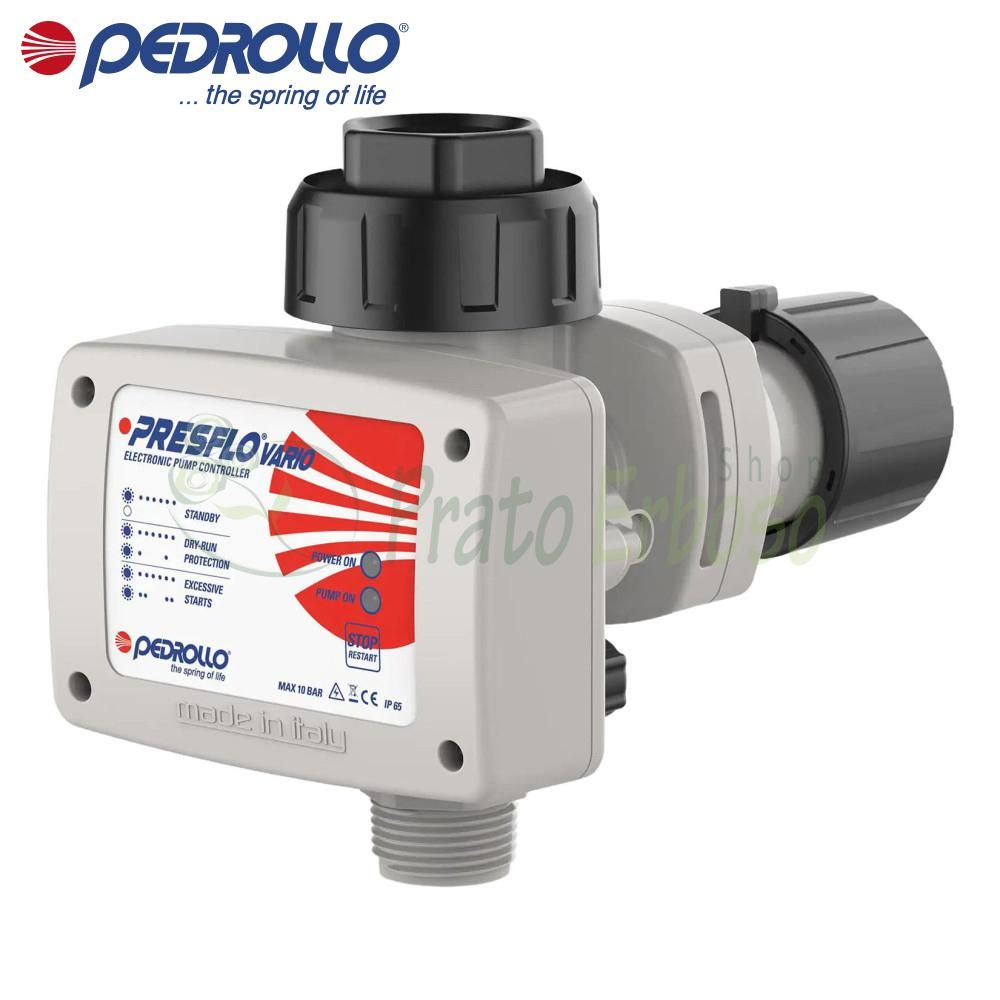

PRESFLO VARIO - Electronic pressure regulator
The Pedrollo Presflo Vario is an electronic control and protection device for electric pumps with power up to 2HP.
Suitable for water supply and water pressure increase in domestic systems and for small irrigation.
The Presflo Vario consists of a pressure sensor and a flow sensor, connected to an electronic system, which start the electric pump when, when a tap is opened, the system pressure drops below the restart pressure and stops it when the flow rate reaches zero or drops below 2 litres per minute.
It allows you to adjust the starting pressure from 0.8 to 2.4 bar .
The integrated electronics protect the electric pump from dry running.
The Presflo Vario is equipped with 2 LED indicators that allow you to view the operating status and alarm messages of the system, thanks to combinations and intermittent switching on of the LED lights.
- Power (HP)
- 2
- Restart pressure (bar)
- 0.8
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Dry running protection
- Yes
- Height (cm)
- Attack size
- 1 "
- Weight (Kg)
- Warranty (years)
- 2
- Type of attack
- female
