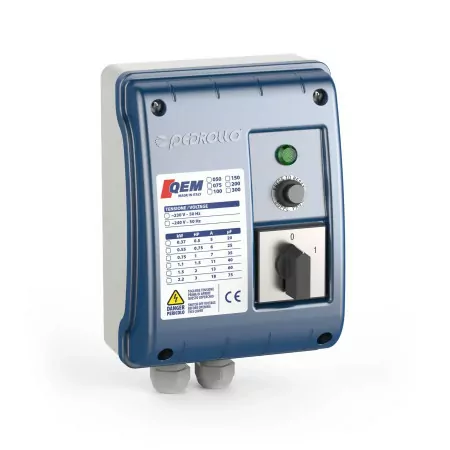

QEM 150 - Electrical panel for single-phase electric pump 1.5 HP

Name: QEM 150 - Electrical panel for single-phase electric pump 1.5 HP
Brand: Pedrollo
SKU: QEM 150
Price: 62.27 EUR
Availability: InStock
Rating: 4 (2 reviews)

For starting 1 4" submersible electric pump. Power: 1.1 Kw (1.5 HP). Manual operation. Overload protection. Capacitor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

Description

Pedrollo QEM electrical panel for submersible electric pumps made of self-extinguishing thermoplastic material.

The panel allows basic level control, with ON/OFF activation status and protection system of the electric pump against overloads and short circuits.

Available in different versions suitable to support the characteristics of the various Pedrollo electric pumps: for motors from 0.37 Kw up to 2.2 Kw.

Data sheet

Power (HP): 1.5
Capacitor: 40 µF 450 VL
Degree of protection: IP 55
LCD display: No
Line power supply: single-phase
Supply voltage (Volts): 230
Engine power supply: single phase
Motor Phase Current (Amperes): 11
Overcurrent protection: Yes, thermal circuit breaker
Amperometric protection: No
Short circuit protection: Yes
Dry running protection: No
Height (cm): 20.2
Width (cm): 15
Depth (cm): 10.6
Weight (Kg): 0.91
Warranty (years): 2

Attachments

QEM Technical Data Sheet

Technical data sheet with features, specifications, and dimensions of Pedrollo's QEM series single-phase electrical panels.

Download (1MB)

QEM models and performances

GUY

single phase

QEM 050

QEM 075

QEM 100

QEM 150

QEM 200

QEM 300

ENGINE POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

CAPACITOR

capacity

20 µF

25 µF

35 µF

40 µF

60 µF

75 µF

NOMINAL CURRENT
TO
5
6
7
11
13
18

Compare with Similar Products

	QEM 150 - Electrical panel for single-phase electric pump 1.5 HP This product For starting 1 4" submersible electric pump. Power: 1.1 Kw (1.5 HP). Manual operation. Overload protection. Capacitor.	QSM 150 - Electrical panel for single-phase electric pump 1.5 HP Quick View For starting 1 4" submersible electric pump. Power: 1.1 Kw (1.5 HP). Manual, automatic operation. Pressure switch/float input. Level probe input. Overload protection. Capacitor.	QEM/3-150 - Electrical panel for single-phase 1 HP electric pump Quick View For starting 1 3" submersible electric pump. Power: 1.1 Kw (1.5 HP). Manual operation. Overload protection. Capacitor.	E1 MONO - Electrical panel for single-phase 3 HP electric pump Quick View For starting 1 single-phase electric pump. Power: 2.2 Kw (3 HP). Manual, automatic operation. Pressure switch/float input.
Price	Price €107.36 -42% €62.27	Price €372.10 -42% €215.82	Price €97.60 -42% €56.61	Price €358.68 -42% €208.03
Power (HP)	Power (HP) 1.5	Power (HP) 1.5	Power (HP) 1.5	Power (HP) 3
Capacitor	Capacitor 40 µF 450 VL	Capacitor 40 µF 450 VL	Capacitor 30 µF 450 VL	Capacitor No
Degree of protection	Degree of protection IP 55	Degree of protection IP 55	Degree of protection IP 55	Degree of protection IP 55
LCD display	LCD display No	LCD display No	LCD display No	LCD display Yes
Line power supply	Line power supply single-phase	Line power supply single-phase	Line power supply single-phase	Line power supply single-phase
Supply voltage (Volts)	Supply voltage (Volts) 230	Supply voltage (Volts) 230	Supply voltage (Volts) 230	Supply voltage (Volts) 230
Engine power supply	Engine power supply single phase	Engine power supply single phase	Engine power supply single phase	Engine power supply single phase
Motor Phase Current (Amperes)	Motor Phase Current (Amperes) 11	Motor Phase Current (Amperes) 11	Motor Phase Current (Amperes) 10	Motor Phase Current (Amperes) 18
Overcurrent protection	Overcurrent protection Yes, thermal circuit breaker	Overcurrent protection Yes, thermal circuit breaker	Overcurrent protection Yes, thermal circuit breaker	Overcurrent protection Yes, thermal relay
Amperometric protection	Amperometric protection No	Amperometric protection Yes	Amperometric protection No	Amperometric protection Yes
Short circuit protection	Short circuit protection Yes	Short circuit protection No	Short circuit protection No	Short circuit protection Yes
Dry running protection	Dry running protection No	Dry running protection Yes	Dry running protection No	Dry running protection Yes
Height (cm)	Height (cm) 20.2	Height (cm) 31.4	Height (cm) 20.2	Height (cm) 31.4
Width (cm)	Width (cm) 15	Width (cm) 23.4	Width (cm) 15	Width (cm) 23.4
Depth (cm)	Depth (cm) 10.6	Depth (cm) 16.9	Depth (cm) 10.6	Depth (cm) 16.9
Weight (Kg)	Weight (Kg) 0.91	Weight (Kg) 4	Weight (Kg) 0.91	Weight (Kg) --
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
