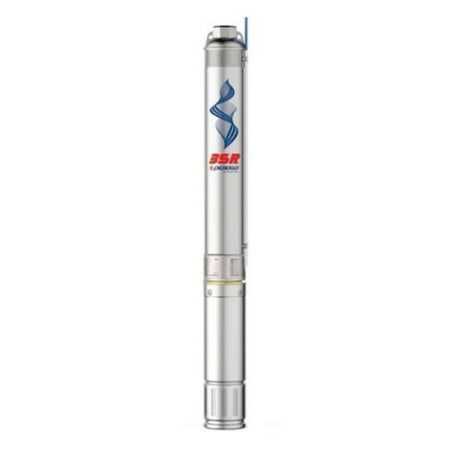

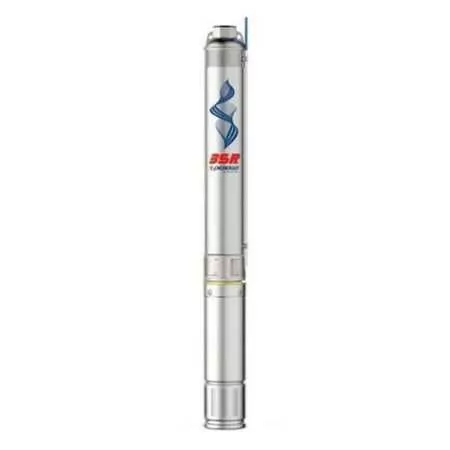

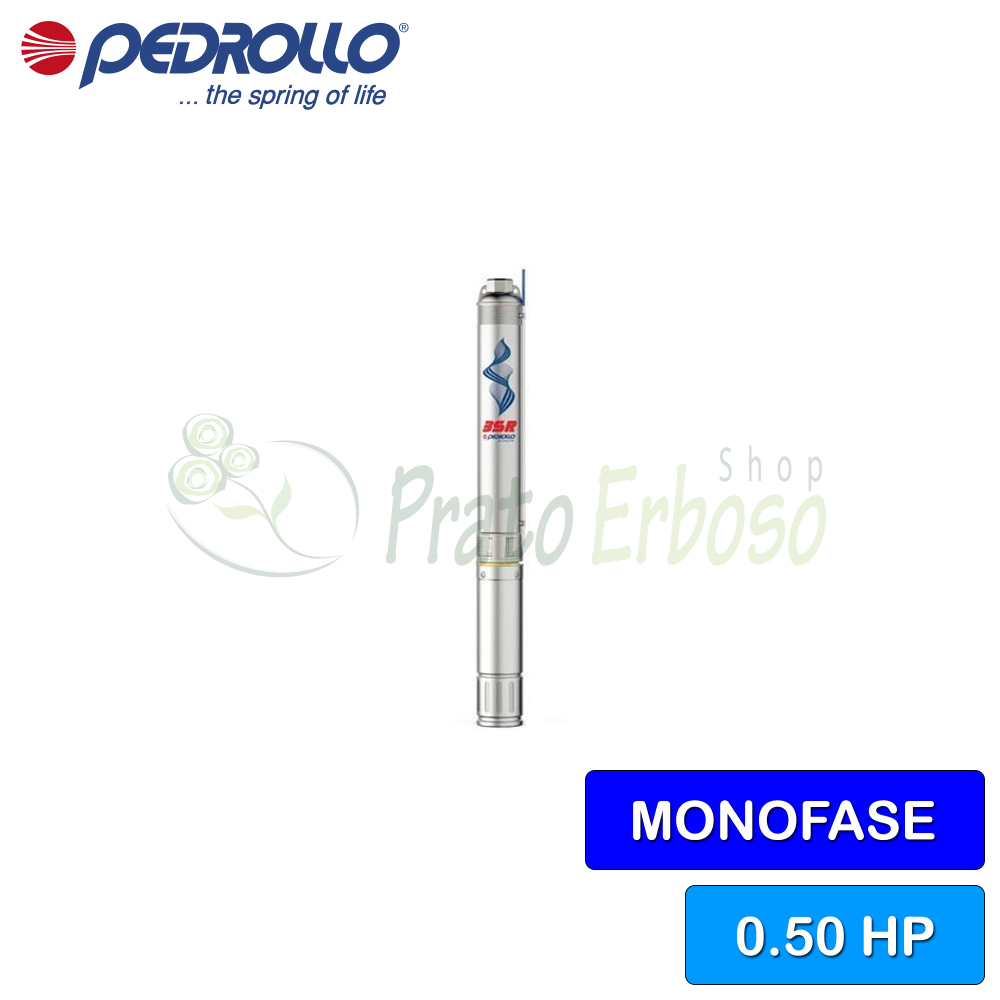

3SRm 2/14 - 0.50 HP single-phase submersible electric pump
Flow rate up to 50 l/min (2.7 m³/h). Head up to 56 meters. 0.37 kW (0.50 HP) motor.
The 3SRm 2/14 submersible electric pump from the 3SR series by Pedrollo can pump clean water and liquids that are chemically non-aggressive for the components.
Extremely efficient 3-inch electric pump in its category thanks to the hydraulic components and the high-efficiency electric motor.
Recommended for civil and domestic installations, particularly for domestic supply, irrigation and water systems for small communities.
The 3SRm 2/14 allows for massive cost savings thanks to its high efficiency and low electricity consumption.
Compact and lightweight, it can be easily installed in 3-inch wells.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 3.4
- Capacitor
- 12.5 µF 450 VL
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 14
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 15.5
- Max. head (m.)
- 56
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 84.4
- External diameter (cm)
- 7.6
- Weight (Kg)
- 9.3
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
