QET 4000 - Electrical panel for three-phase electric pump 40 HP
zoom_out_map
chevron_left chevron_right
-42%

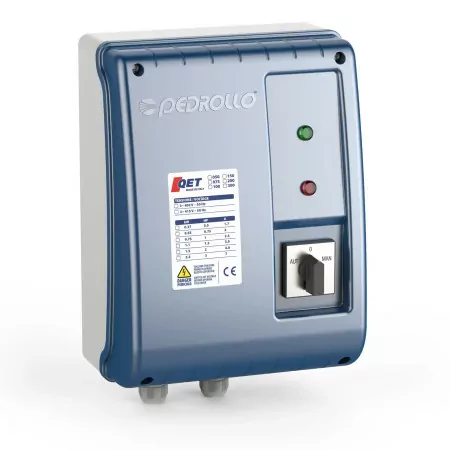

QET 4000 - Electrical panel for three-phase electric pump 40 HP

For starting 1 submersible electric pump 4" and 6". Power: 30 Kw (40 HP). Manual, automatic operation. Pressure switch/float input. Overload protection.

€768.45 Tax included

€629.88 Tax excluded

€1,324.92-42%

Variants:
QET 050 - Quadro elettrico per elettropompa trifase 0.50 HP
QET 075 - Quadro elettrico per elettropompa trifase 0.75 HP
QET 100 - Quadro elettrico per elettropompa trifase 1 HP
QET 150 - Quadro elettrico per elettropompa trifase 1.5 HP
QET 200 - Quadro elettrico per elettropompa trifase 2 HP
QET 300 - Quadro elettrico per elettropompa trifase 3 HP
QET 400 - Quadro elettrico per elettropompa trifase 4 HP
QET 550 - Quadro elettrico per elettropompa trifase 5.5 HP
QET 750 - Quadro elettrico per elettropompa trifase 7.5 HP
QET 1000 - Quadro elettrico per elettropompa trifase 10 HP
QET 1250 - Quadro elettrico per elettropompa trifase 12.5 HP
QET 1500 - Quadro elettrico per elettropompa trifase 15 HP
QET 2000 - Quadro elettrico per elettropompa trifase 20 HP
QET 2500 - Quadro elettrico per elettropompa trifase 25 HP
QET 3000 - Quadro elettrico per elettropompa trifase 30 HP
QET 4000 - Quadro elettrico per elettropompa trifase 40 HP
QET 5000 - Quadro elettrico per elettropompa trifase 50 HP
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

QET 4000 - Electrical panel for three-phase electric pump 40 HP
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

Pedrollo QET 4000 electrical panel for submersible electric pumps made of self-extinguishing thermoplastic material.

The panel allows basic level control, with ON/OFF activation status and protection system of the electric pump against overloads and short circuits.

Available in different versions suitable to support the characteristics of the various Pedrollo electric pumps: for motors from 0.37 Kw up to 30 Kw.

Data sheet
Pedrollo
QET 4000
10 Items
Power (HP)
40
Degree of protection
IP 55
LCD display
No
Line power supply
three-phase
Supply voltage (Volts)
400
Engine power supply
three-phase
Motor Phase Current (Amperes)
68
Overcurrent protection
Yes, thermal relay
Amperometric protection
Yes
Short circuit protection
Yes
Dry running protection
No
Height (cm)
57
Width (cm)
38
Depth (cm)
17
Weight (Kg)
11
Warranty (years)
2
Attachments

QET Technical Data Sheet

Technical data sheet with features, specifications and dimensions of the three-phase electrical panels of the Pedrollo QET series.

file_download Download (1.05MB)

Buy it with

  • QET 4000 - Electrical panel for three-phase electric pump 40 HP
  • +
  • FYG 22 - pressure Switch, single-phase adjustable 7 bar
  • +
  • 0315/10 - Double function float
  • €840.68-10 %
    Total price: €756.61
QET models and performances
GUY
three-phase
QET 050
QET 075
QET 100
QET 150
QET 200
QET 300
QET 400
QET 550
QET 750
QET 1000
QET 1250
QET 1500
ENGINE POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
1.52
2.23
34
45.5
5.57.5
7.510
9.212.5
1115
