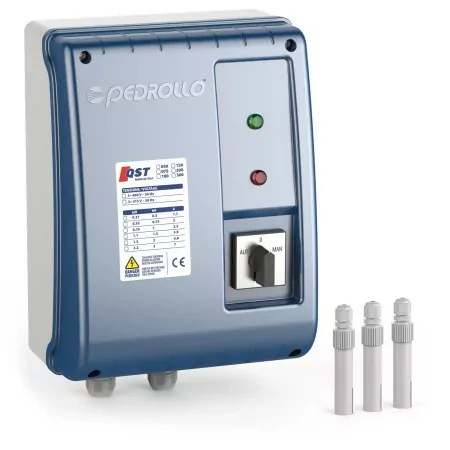

QST 150 - Electrical panel for three-phase electric pump 1.50 HP
For starting 1 submersible electric pump 4" and 6". Power: 1.1 Kw (1.5 HP). Manual, automatic operation. Pressure switch/float input. Level probe input. Overload protection.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
Pedrollo QST electrical panel for submersible electric pumps made of self-extinguishing thermoplastic material.
The panel is equipped with a selector for manual or automatic operation (with float, pressure switch, etc.) and is arranged for the connection of level probes that protect the pump from dry running.
Available in different versions suitable to support the characteristics of the various Pedrollo electric pumps: for motors from 0.37 Kw up to 30 Kw.
Data sheet
- Power (HP)
- 1.5
- Line power supply
- three-phase
- Supply voltage (Volts)
- 400
- Engine power supply
- three-phase
- Motor Phase Current (Ampere)
- 3.9
- Amperometric protection
- Yes
- Short circuit protection
- No
- Dry running protection
- Yes
