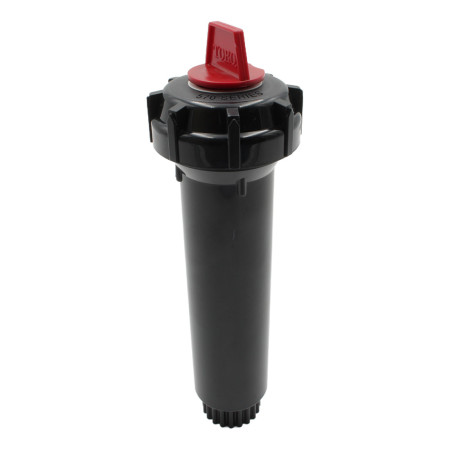

570Z-4P-COM - 10cm Pop-up Sprinkler
Turret height 10 cm. With check valve. WITHOUT NOZZLE.
The 570Z-4P-COM sprinkler from Toro Irrigation is equipped with a check valve that eliminates the problem of pipe drainage at low pressures in height differences of up to 3 metres.
This sprinkler is the ideal solution for residential, commercial, small gardens, green areas and various landscapes.
The 570Z-4P-COM sprinkler is equipped with a sealing device that is active even at very low pressures and allows washing only during the turret retraction phase.
Seven distinct pop-up nozzle holders and a large number of interchangeable nozzles allow this sprinkler to offer virtually unlimited and versatile application possibilities.
The turret with ring ensures easy and reliable bow adjustment.
The check valve prevents low-positioned pop-ups from continuing to leak water at the end of the irrigation cycle, creating swamps and wasting water.
These features make the 570Z-4P-COM sprinkler from Toro Irrigazione a versatile, reliable and flexible product.
- Min. flow rate (l./min.)
- Max. flow rate (l./min.)
- Max. working pressure ( bar )
- Min. working pressure ( bar )
- Max. range (m)
- 3.20
- Turret height (cm.)
- 10
- Height (cm)
- Attack size
- 1/2 "
- Type of attack
- female
- Thread
- BSP
Compare with Similar Products
 570Z-4P-COM - 10cm Pop-up SprinklerThis product Turret height 10 cm. With check valve. WITHOUT NOZZLE. |  570Z-4P - 10cm Pop-up SprinklerTurret height 10 centimeters. WITHOUT NOZZLE. |  570Z-4LP - 10cm Pop-up SprinklerTurret height 10 centimeters. For low pressures. WITHOUT NOZZLE. |  570Z-4P-XF - 10cm Pop-up SprinklerTurret height 10 centimeters. With X-Flow device. WITHOUT NOZZLE. | |
|---|---|---|---|---|
| Min. flow rate (l./min.) | Min. flow rate (l./min.) -- | Min. flow rate (l./min.) -- | Min. flow rate (l./min.) -- | Min. flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Max. working pressure ( bar ) | Max. working pressure ( bar ) -- | Max. working pressure ( bar ) -- | Max. working pressure ( bar ) -- | Max. working pressure ( bar ) -- |
| Min. working pressure ( bar ) | Min. working pressure ( bar ) -- | Min. working pressure ( bar ) -- | Min. working pressure ( bar ) -- | Min. working pressure ( bar ) -- |
| Max. range (m) | Max. range (m) 3.20 | Max. range (m) 3.20 | Max. range (m) 5.5 | Max. range (m) 5.5 |
| Angle adjustment | Angle adjustment -- | Angle adjustment -- | Angle adjustment partializable | Angle adjustment -- |
| Turret height (cm.) | Turret height (cm.) 10 | Turret height (cm.) 10 | Turret height (cm.) 10 | Turret height (cm.) 10 |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Attack size | Attack size 1/2 " | Attack size 1/2 " | Attack size 1/2 " | Attack size 1/2 " |
| Type of attack | Type of attack female | Type of attack female | Type of attack female | Type of attack female |
| Thread | Thread BSP | Thread BSP | Thread BSP | Thread BSP |
