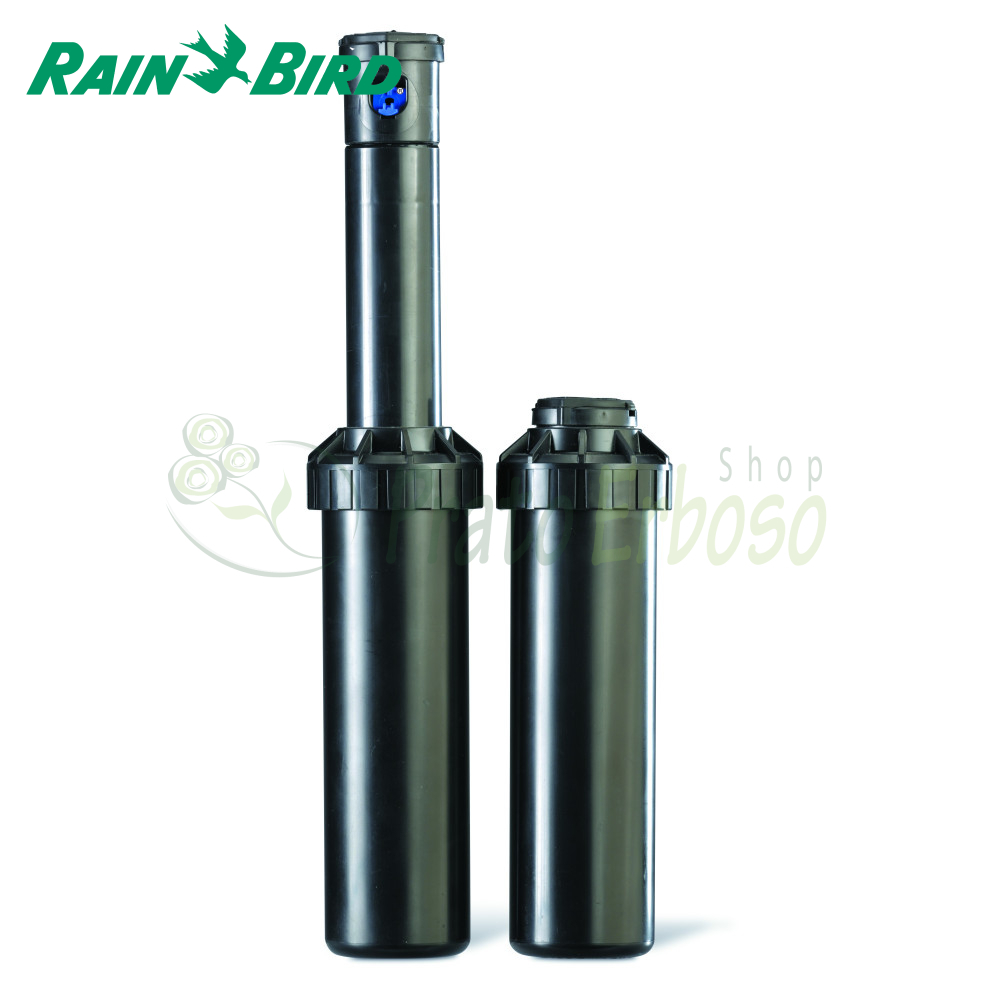

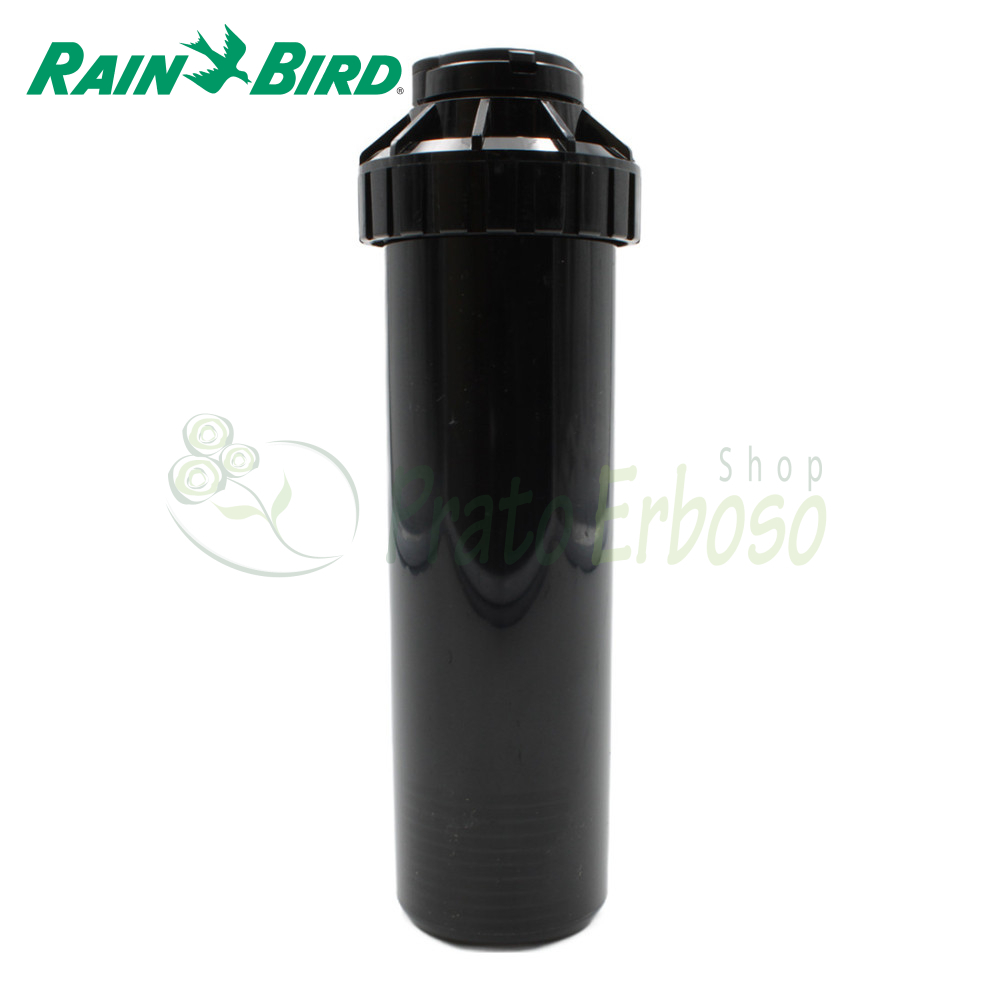

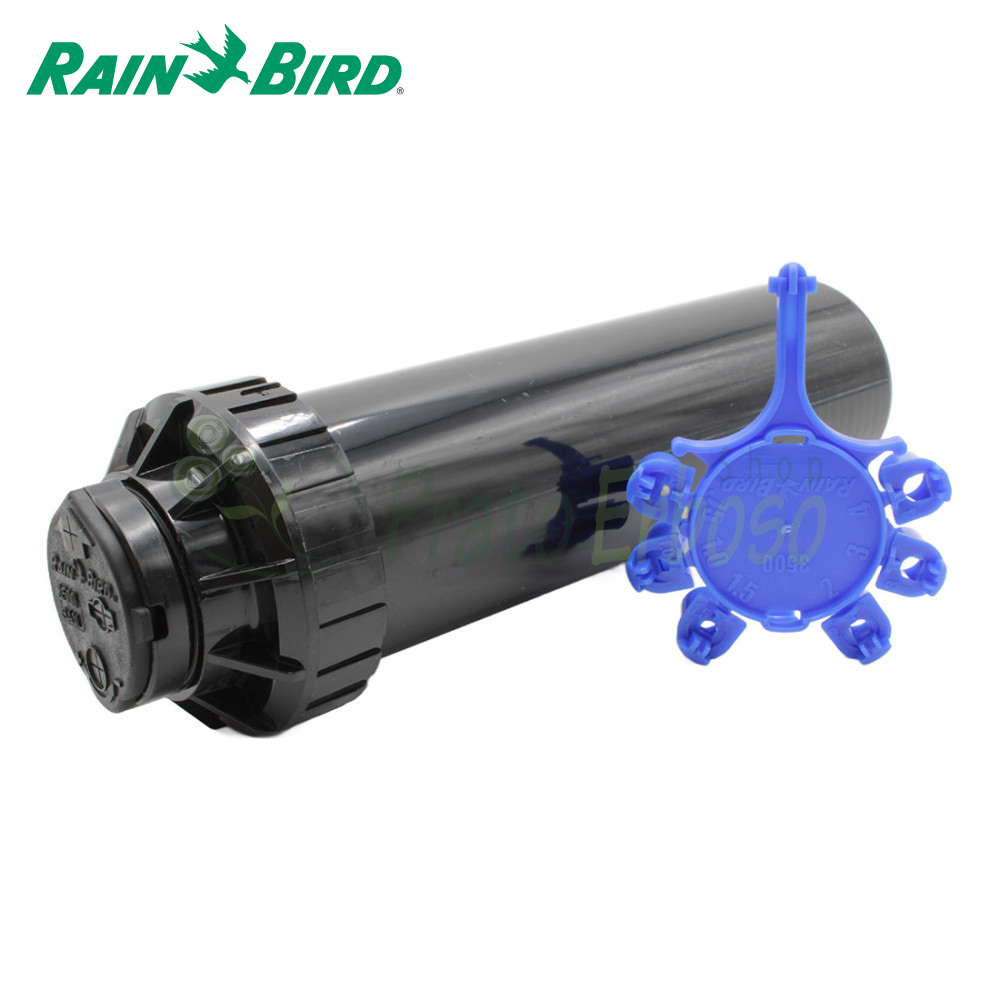

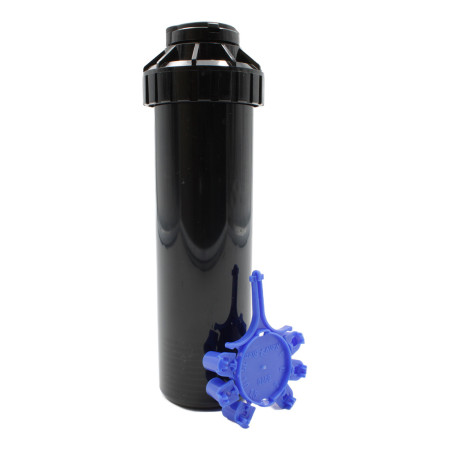

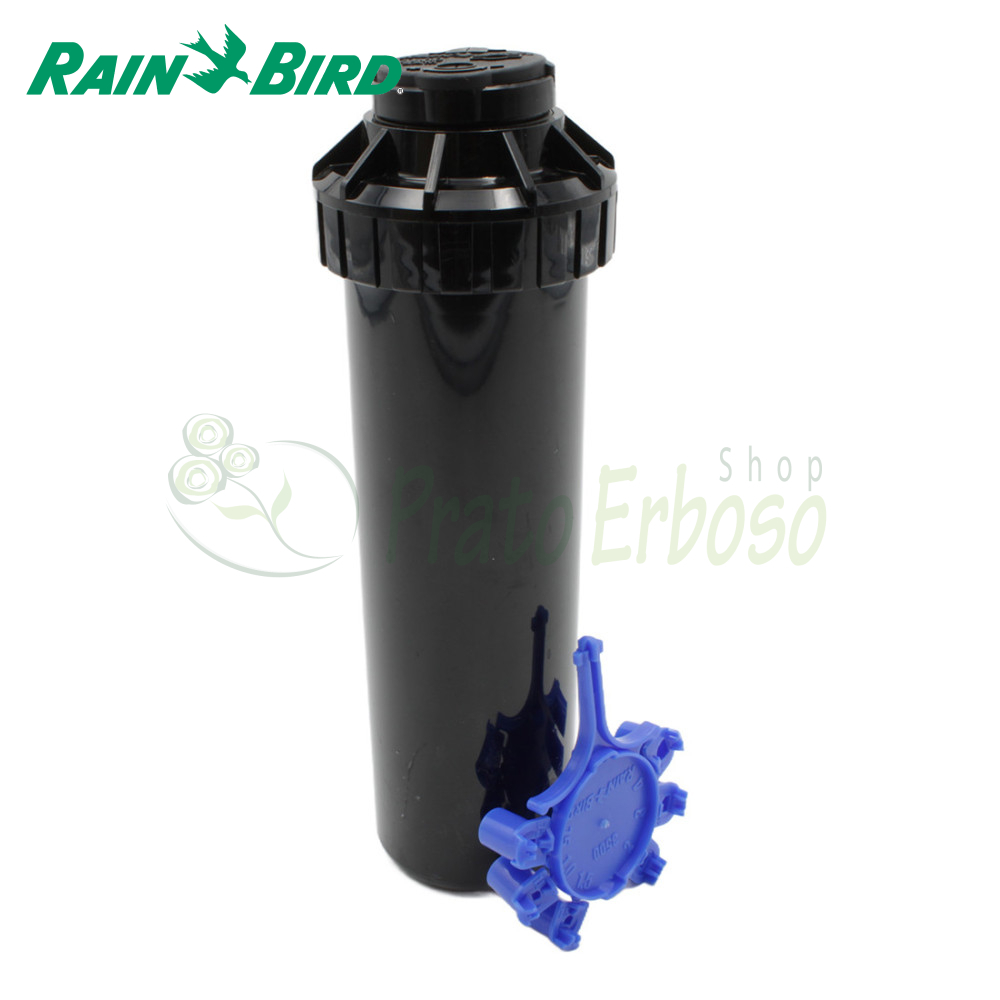

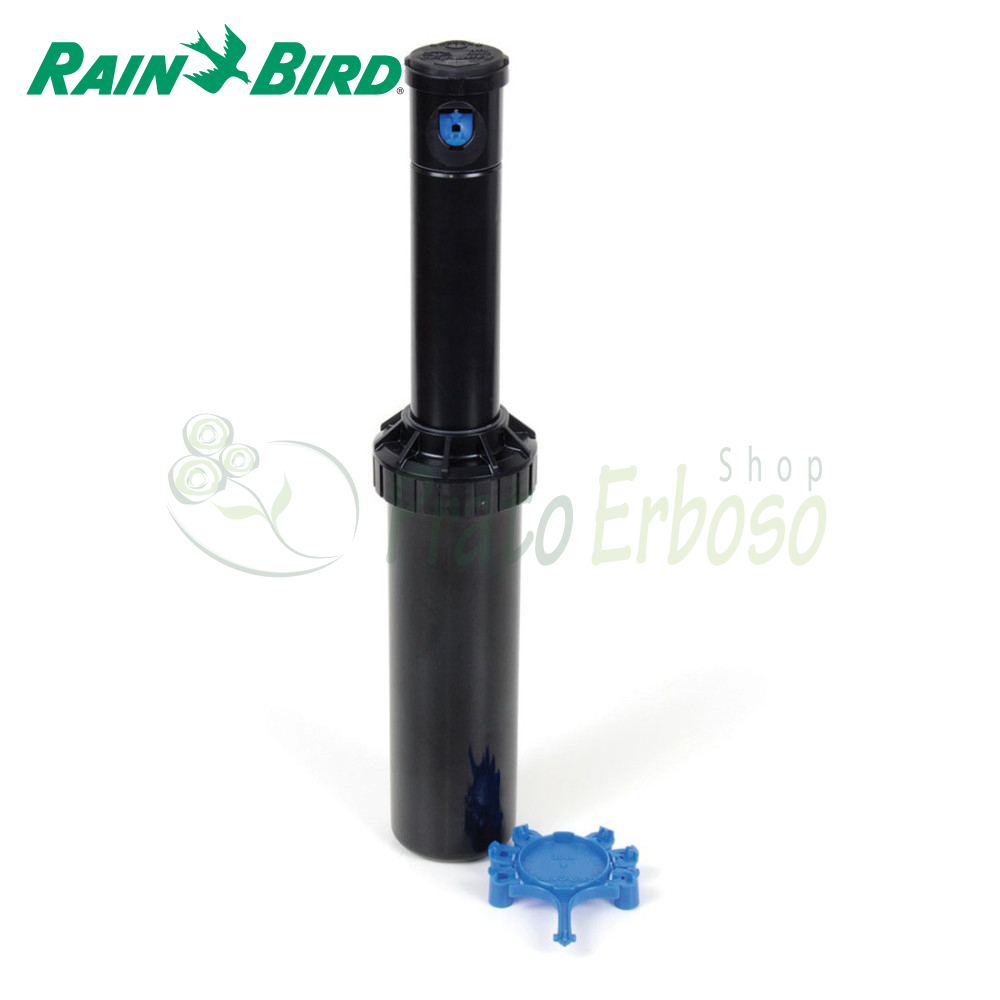

3504-PC - Pop-up sprinkler, 10.7 m range
Turret height 10 centimetres.
The Rain Bird 3504-PC Rotor is an easy-to-use 1/2" rotor sprinkler for small to medium radius applications. The closed-body protection design makes these sprinklers ideal for climbing grasses, sandy soils and other challenging environments. With numerous built-in protection and ease-of-use features, the 3504-PC is ideal for any home landscape.
The double action sealing gasket protects internal parts from debris and ensures easy piston lift and return. The flow regulator screw allows a 35% reduction in throw without the need to replace the nozzle.
Adjusting the working arc from above only requires a flat-head screwdriver.
The water-lubricated gear configuration ensures reliable and long-lasting operation.
- Minimum flow rate (l./min.)
- 2.0
- Max. flow rate (l./min.)
- 17.4
- Max. working pressure (bar)
- 3.8
- Min. working pressure (bar)
- 1.7
- Max. range (m)
- 10.7
- Angle adjustment
- variable
- Turret height (cm.)
- 10
- Height (cm)
- 16.8
- Attack size
- 1/2 "
- Type of attack
- female
- Thread
- BSPP
Compare with Similar Products
 3504-PC - Pop-up sprinkler, 10.7 m rangeThis product Turret height 10 centimetres. |  MINI 8 - Pop-up sprinkler, 10.7 m rangeTurret height 10 centimetres. |  SRM-04 - Pop-up sprinkler, 9.4 m rangeTurret height 10 centimetres. | |
|---|---|---|---|
| Price | Price €23.63 -40% €14.18 | Price €23.45 -32% €15.94 | Price €9.85 -5% €9.35 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 2.0 | Minimum flow rate (l./min.) 3 | Minimum flow rate (l./min.) 1.9 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 17.4 | Max. flow rate (l./min.) 11.3 | Max. flow rate (l./min.) 11.4 |
| Max. working pressure (bar) | Max. working pressure (bar) 3.8 | Max. working pressure (bar) 2 | Max. working pressure (bar) 2.1 |
| Min. working pressure (bar) | Min. working pressure (bar) 1.7 | Min. working pressure (bar) 4.1 | Min. working pressure (bar) 3.4 |
| Max. range (m) | Max. range (m) 10.7 | Max. range (m) 10.7 | Max. range (m) 9.4 |
| Angle adjustment | Angle adjustment variable | Angle adjustment variable | Angle adjustment variable |
| Turret height (cm.) | Turret height (cm.) 10 | Turret height (cm.) 10 | Turret height (cm.) 10 |
| Height (cm) | Height (cm) 16.8 | Height (cm) 15 | Height (cm) 17 |
| Attack size | Attack size 1/2 " | Attack size 1/2 " | Attack size 1/2 " |
| Type of attack | Type of attack female | Type of attack female | Type of attack female |
| Thread | Thread BSPP | Thread BSPP | Thread BSPP |
| Max. precipitation rate (mm/h) | Max. precipitation rate (mm/h) -- | Max. precipitation rate (mm/h) -- | Max. precipitation rate (mm/h) 11 |
-
