5004Plus-PC30 - Pop-up sprinkler, 15.2 m range
Turret height 10 cm. With check valve.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 14 May - Friday 15 May |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 14 May - Friday 15 May |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 14 May - Friday 15 May
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 14 May - Friday 15 May
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow

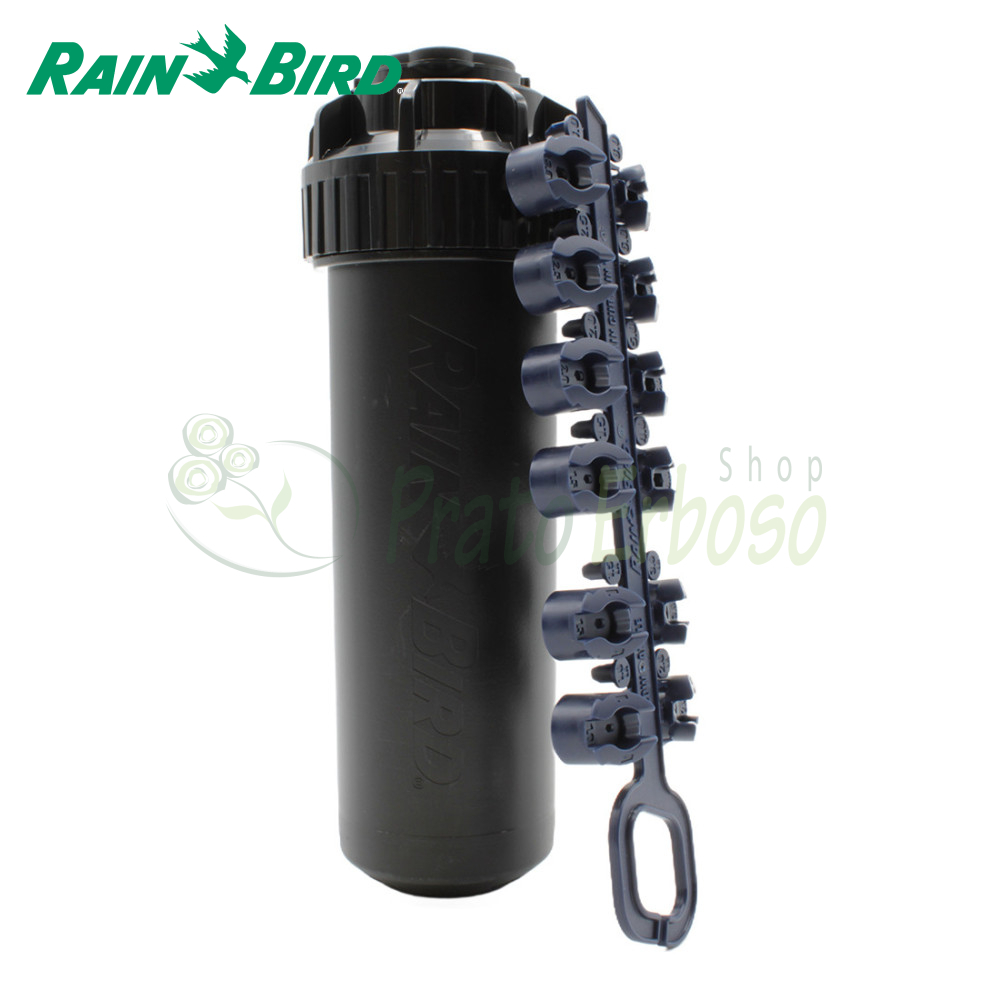

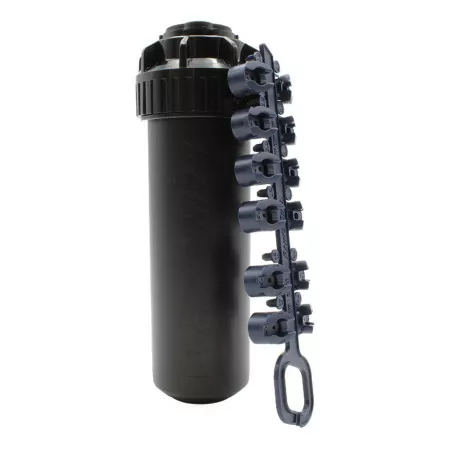

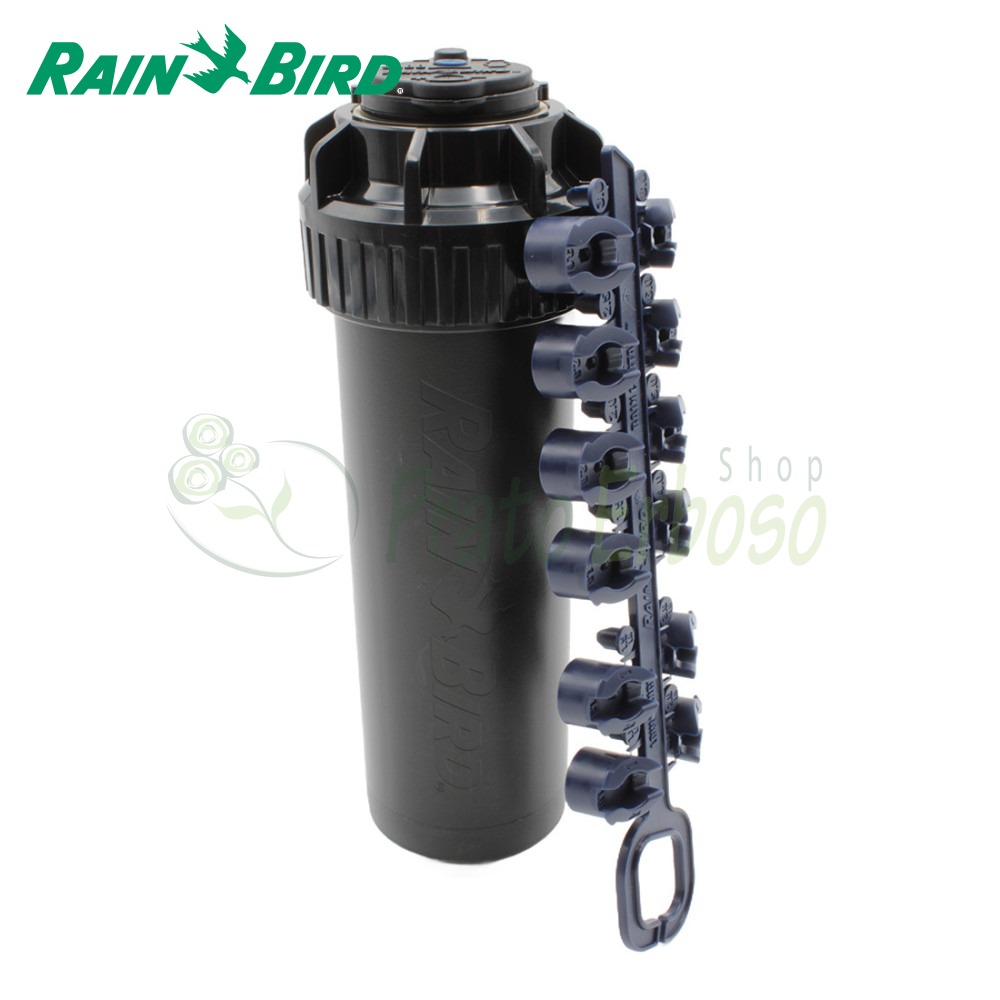

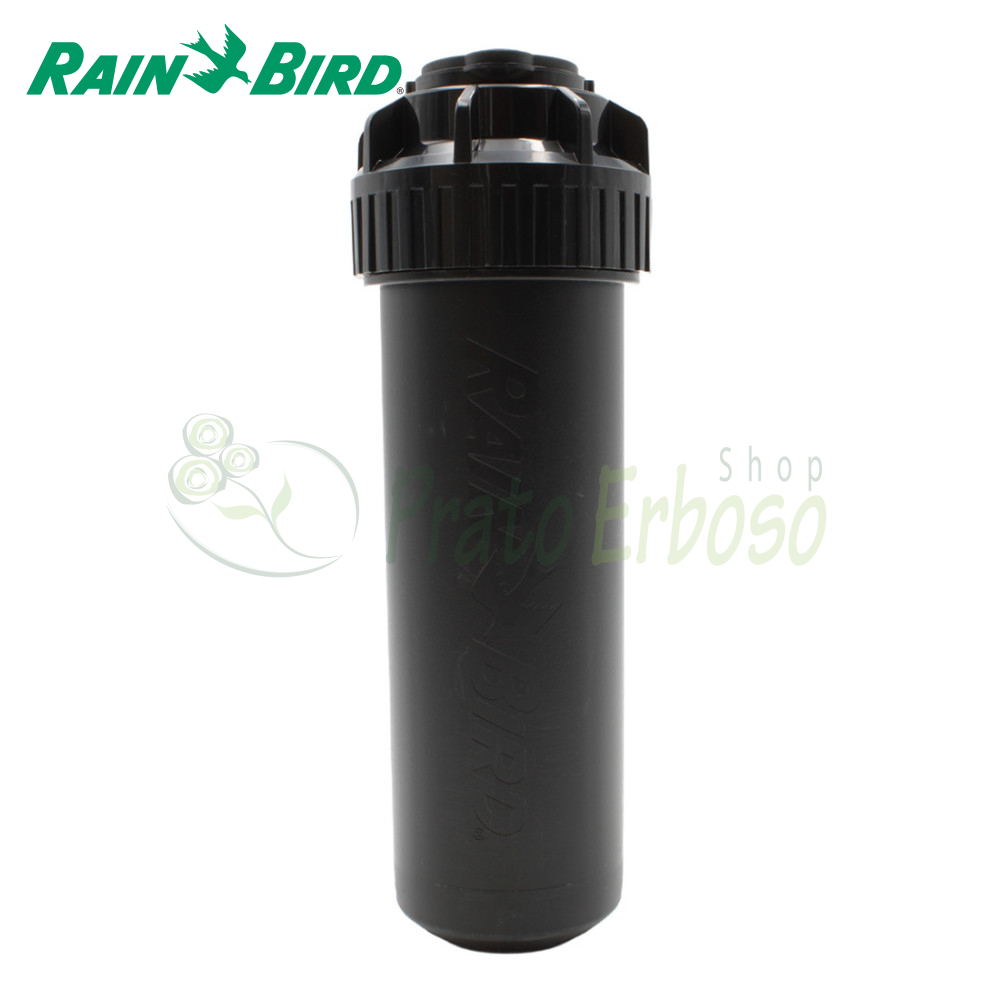

The Rain Bird 5004Plus-PC30 pop-up sprinkler represents another step forward in rotor sprinkler performance.
Rain Curtain nozzles provide optimal uniformity making turf greener with less water.

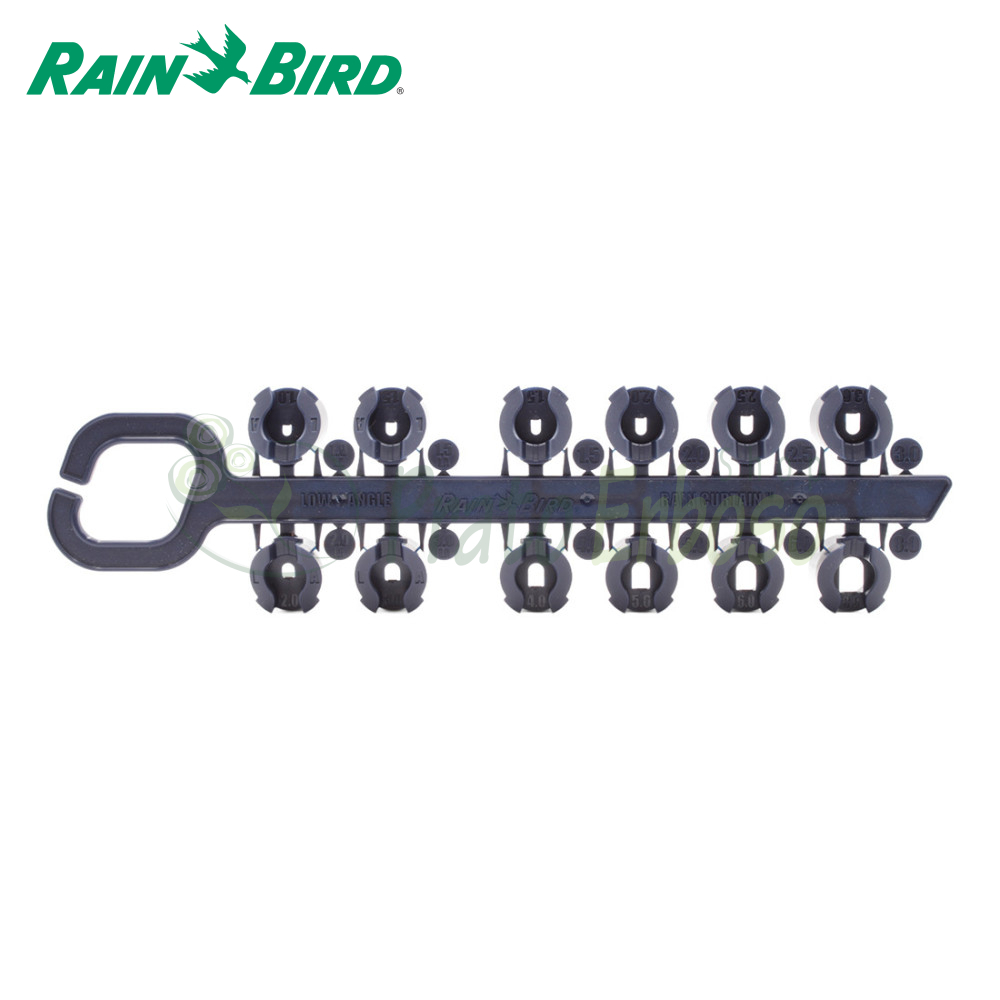

Rain Curtain Technology nozzles produce larger droplets for even distribution and effective irrigation close to the sprinkler. Distribution is even across the entire range. The nozzle set offers ranges from 7.6 to 15.2 meters thanks to the 4 low angle nozzles with a 10 degree trajectory and the 8 standard Rain Curtain nozzles with a 25 degree trajectory. Nozzle insertion is simplified with the help of guides.

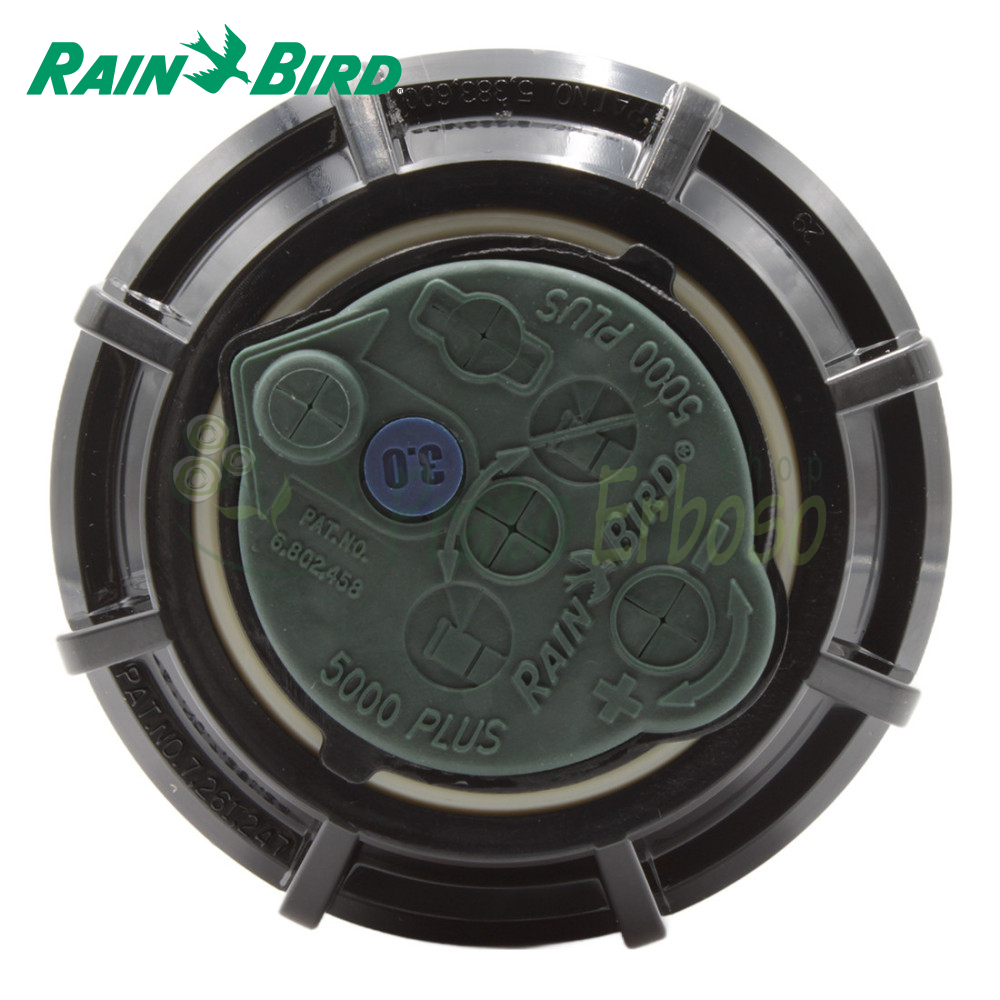

The 5004Plus-PC30 features a clutch mechanism for quick adjustment during installation. Maintenance is simplified by the new self-cleaning arc adjustment screw. The 5004Plus-PC30 features a flow shut-off device that stops water flow to a specific sprinkler while the system is still running. The radius adjustment screw allows you to reduce the radius by 25% without having to change the nozzle.

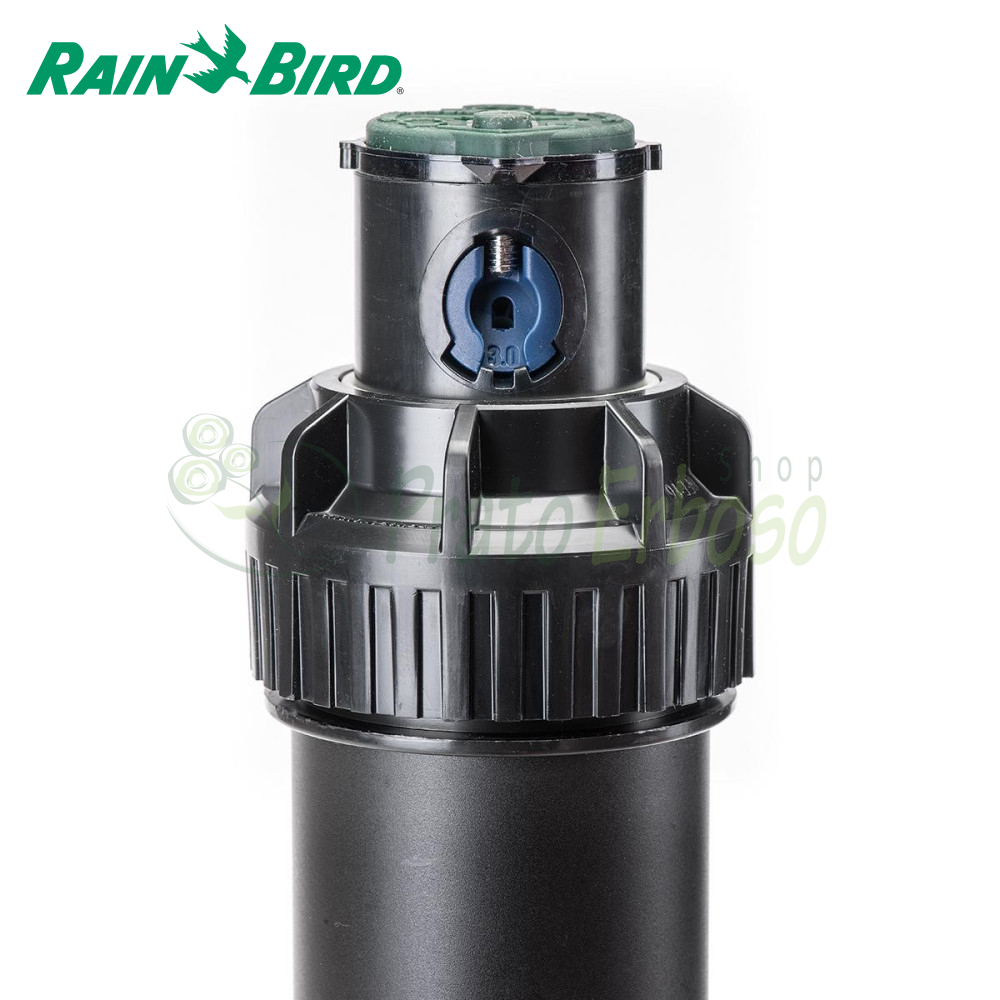

The 5004Plus-PC30 features a green rubber cover that provides added protection and wear resistance in residential or commercial applications. A robust return spring ensures optimum turret retraction. A self-cleaning seal protects internal components from debris and ensures optimum turret lift and retraction.
- Minimum flow rate (l./min.)
- 3.0
- Max. flow rate (l./min.)
- 36.6
- Max. working pressure (bar)
- 4.5
- Min. working pressure (bar)
- 1.7
- Max. range (m)
- 15.2
- Angle adjustment
- variable
- Turret height (cm.)
- 10
- Height (cm)
- 20
- Attack size
- 3/4 "
- Type of attack
- female
- Thread
- BSPP
- Min. precipitation rate (mm/h)
- 5
- Max. precipitation rate (mm/h)
- 38
-
-
