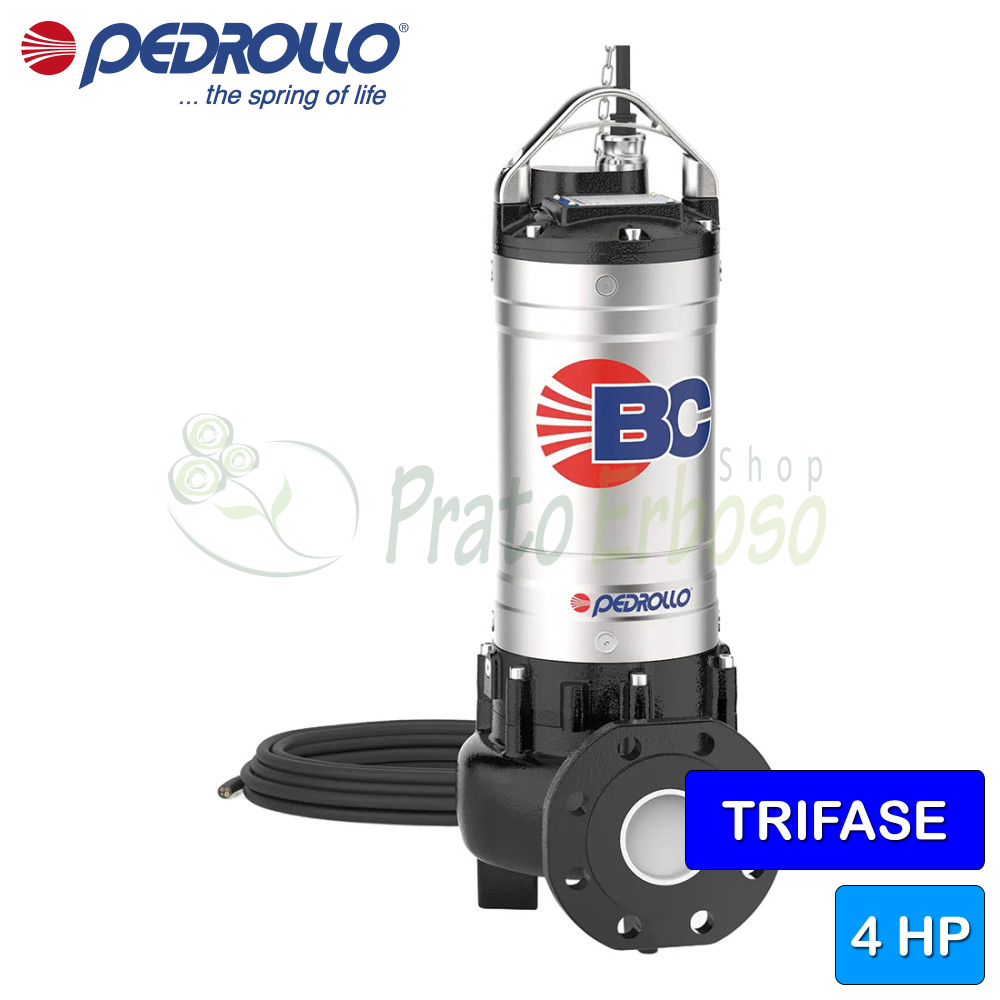

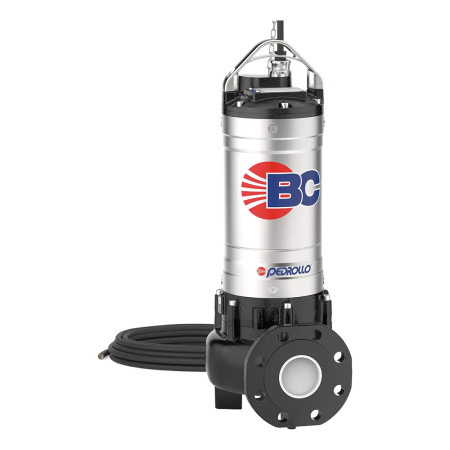

BC 40/35 - 4 HP three-phase dual-channel electric pump for waste water
Flow rate up to 1500 l/min (90 m³/h). Head up to 21.4 m. 3 kW (4 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo BC 40/35 electric pump for waste water is ideal for draining dirty water, sewage, waste water, water mixed with mud, revived and putrid sludge.
Suitable for installation in sewers, tunnels, excavations, canals and underground car parks.
Pedrollo has designed and manufactured this pump using materials that ensure long-lasting performance and reliability.
The BC 40/35 is built entirely of stainless steel and cast iron of considerable thickness which makes it robust and allows it to resist abrasion and the passage of time.
It can be installed up to 10 meters below the water level. A 10-meter cable is also included.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Current consumption at 400V (A)
- 3.2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 750
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m.)
- 10
- Jobs
- drainage, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.7
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 15.3
- Warranty (years)
- 2
