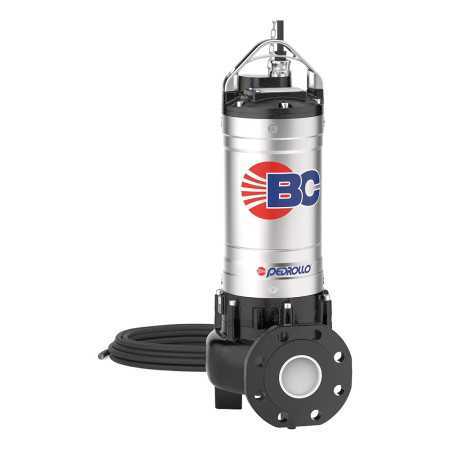

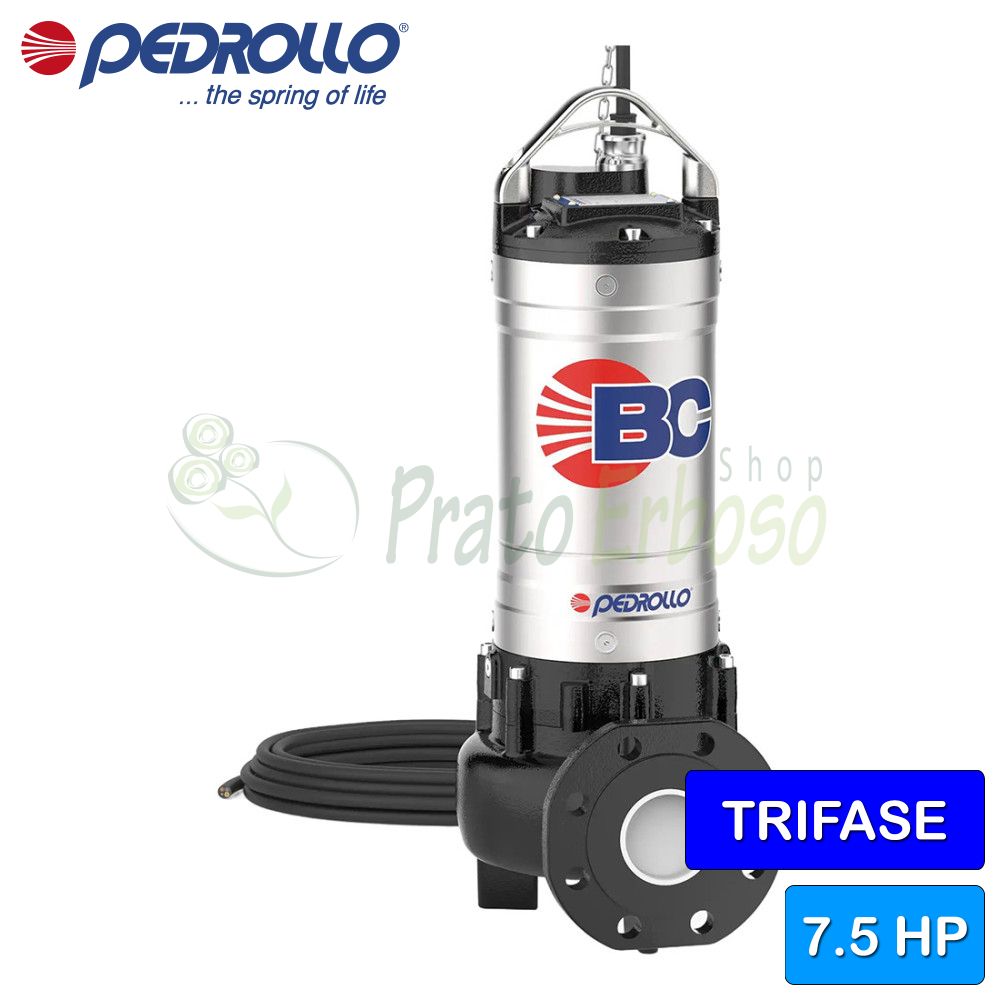

BC 75/35 - 7.5 HP three-phase dual-channel electric pump for waste water
Flow rate up to 1900 l/min (114 m³/h). Head up to 31 m. 5.5 kW (7.5 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo BC 75/35 electric sewage pump is recommended for installation in sewers, tunnels, excavations, canals and underground car parks.
Suitable for the drainage of dirty, sewage, wastewater, water mixed with mud, revived and putrid sludge.
The construction is solid and robust. Pedrollo used thick stainless steel and cast iron for its construction.
Equipped with a two-channel impeller.
It can be installed up to 10 meters below water level. A 10-meter cable is also included.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 5.5
- Power (HP)
- 7.5
- Current consumption at 400V (A)
- 3.2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 750
- Min. head (m.)
- 2
- Max. head (m.)
- 15
- Cable length (m.)
- 10
- Jobs
- drainage, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.7
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 15.3
- Warranty (years)
- 2
