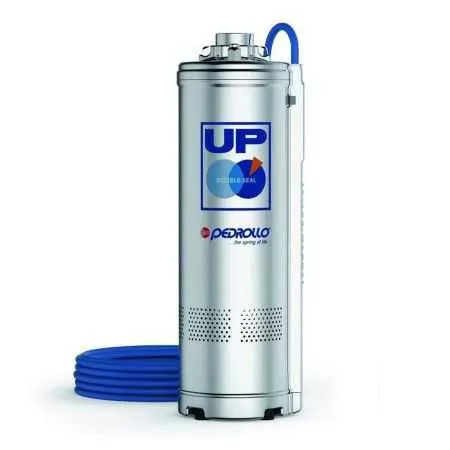

UP 2/5 (10m) - 1.5 HP 230 V three-phase submersible electric pump

Name: UP 2/5 (10m) - 1.5 HP 230 V three-phase submersible electric pump
Brand: Pedrollo
SKU: UP 2/5 230/240 V 10m
Price: 442.89 EUR
Availability: InStock

Flow rate up to 80 l/min (4.8 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. 10 m cable.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The UP 2/5 submersible electric pump from Pedrollo 's UP series has a flow rate ranging from 10 to 80 litres per minute and a head ranging from 40 to 80 metres.

The engine has a power of 1.5 HP.

It can pump clean water and chemically non-aggressive liquids for components with a sand content of up to 150 grams per cubic meter.

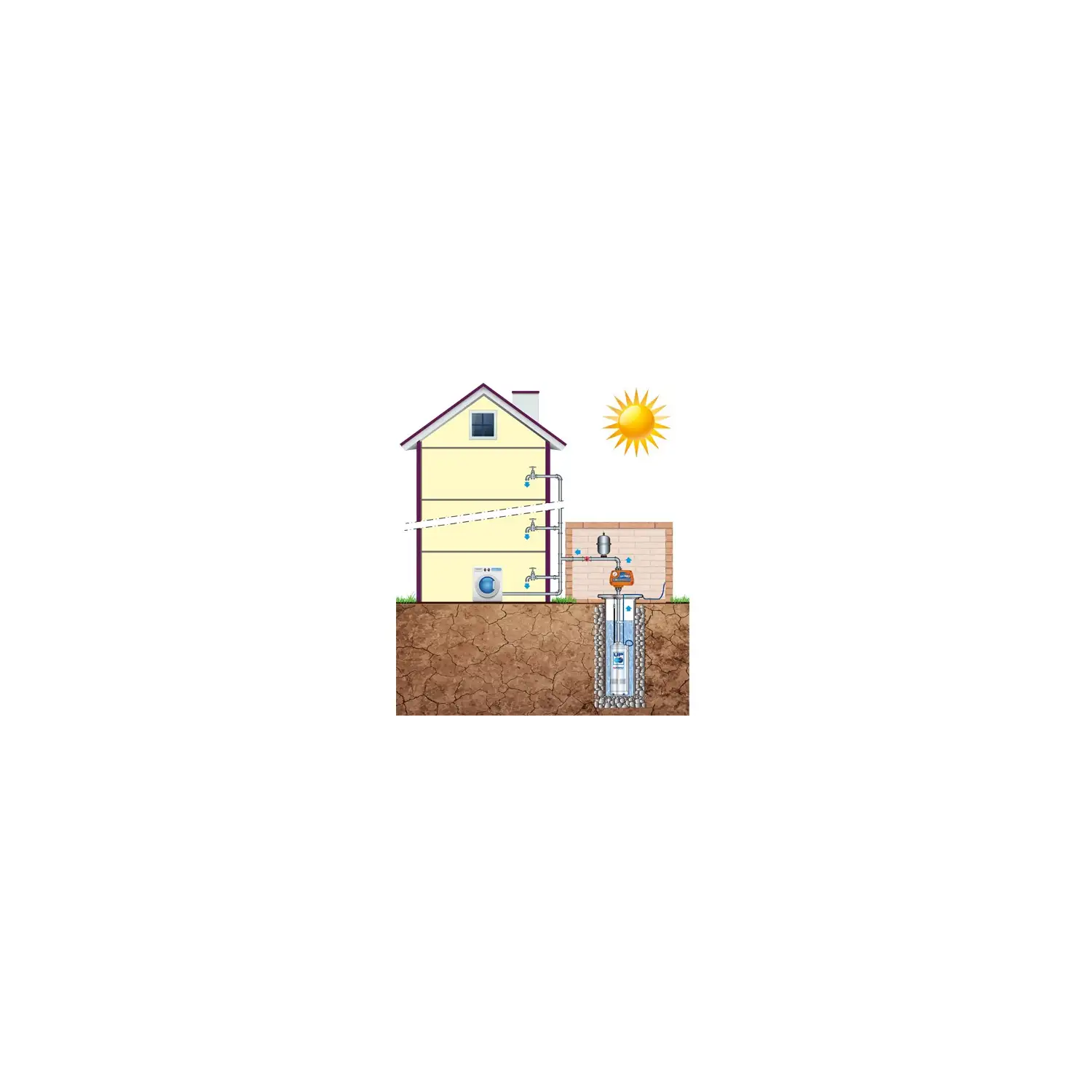

The UP 2/5 is particularly recommended for water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for pressure boosting.

It can be up to 20 meters below water level with the appropriate length cable.

Pedrollo used AISI 304 and 431 stainless steel which give it strength and solidity and allow it to last over time.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 5.0
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 5
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 40
Max. head (m.): 80
Cable length (m.): 10
Max. liquid temperature (°C): +40°C
Height (cm): 50.9
External diameter (cm): 15
Weight (Kg): 15.1
Warranty (years): 2

Attachments

UP technical sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo UP series pumps.

Download (2.03MB)

UP models and performance

GUY

three-phase

UP 2/2

UP 2/3

UP 2/4

UP 2/5

UP 2/6

UP 4/3

UP 4/4

UP 4/5

UP 4/6

UP 8/3

UP 8/4

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.1	1.5
1.5	2

IMPELLERS
number
2
3
4
5
6
3
4
5
6
3
4

PERFORMANCE
Q litres/min	H meters
10 ÷ 80	33 ÷ 17
10 ÷ 80	48 ÷ 23
10 ÷ 80	63÷31
10 ÷ 80	81 ÷ 40
10 ÷ 80	95 ÷ 48
20 ÷ 120	40 ÷ 12
20 ÷ 120	53 ÷ 16
20 ÷ 120	67 ÷ 20
20 ÷ 120	80 ÷ 24
40 ÷ 180	40 ÷ 9
40 ÷ 180	52 ÷ 12

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8
Q	l/min	0	10	20	40	60	80	100	120	140	160	180
H	meters	33	32	31	28	23.5	17
		48	46	44.5	40.5	33.5	23
		63	61	59	54	45	31
		81	79	75.5	68.5	57.5	40
		95	93	90	82	68.5	48
		40	-	39	37	33	28	20.5	12
		53	-	52	49	44	37	27.5	16
		67	-	65	61.5	55	46.5	34	20
		80	-	78	74	66	56	41	24
		40	-	-	39	37.5	35.2	32	27.8	22.2	16	9
		52	-	-	51	49.2	46.5	42	36.5	29.5	21.2	12

Construction data UP2

Bearings

Pump side motor bearing	6303 2RS - C3
Opposite side engine bearing	6203 ZZ - C3E

Tree holding

Type of seal	Double mechanical seal in oil chamber
Engine side model	STA-17
LM diameter	17
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	ST1-16
LP diameter	16
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

2.1 - Seal holder cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.3 - Diaphragm/Diffuser Cover	Stainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
