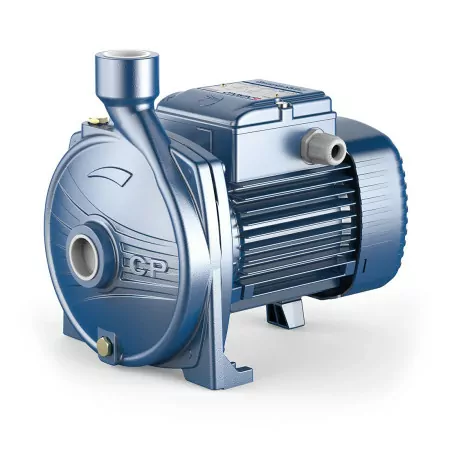

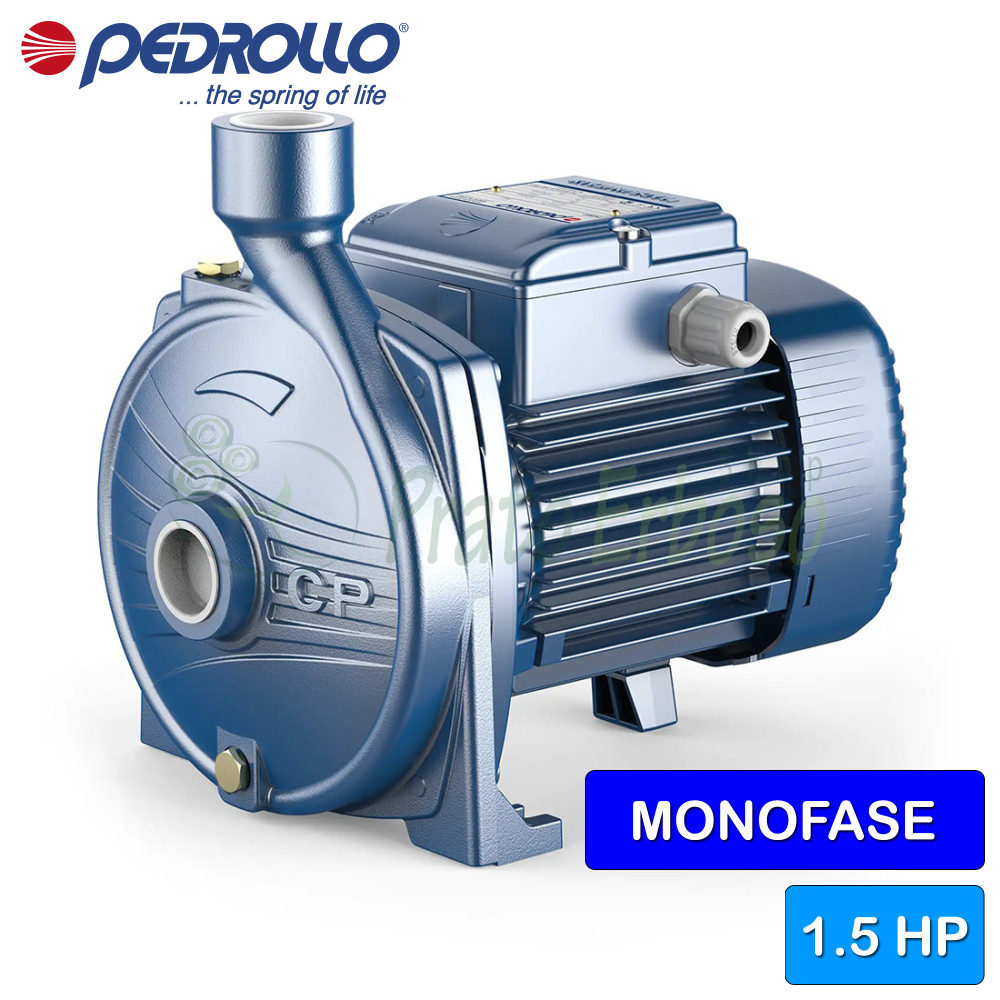

CPm 170 - 1.5 HP single-phase centrifugal electric pump

Name: CPm 170 - 1.5 HP single-phase centrifugal electric pump
Brand: Pedrollo
SKU: CPm 170
Price: 263.23 EUR
Availability: InStock
Rating: 5 (4 reviews)

Flow rate up to 120 l/min (7.2 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor.

Variants:

Order it before 11 hours and 21 minutes and receive it between 01-01-2025 and 02-01-2025 with TNT - 4 days delivery

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.

Due to their reliability and ease of use, they are widely used in the domestic and civil sector, in particular for the distribution of water in conjunction with small and medium-sized pressure tanks, for decanting and for irrigation of vegetable gardens and gardens.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 7.8
Capacitor: 25 µF450 VL
Suction mouth: 1 "1/4
Delivery port: 1 "
Body Pump: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Motor shaft: Stainless steel EN 10088-3 1.4104
Check valve: no
Degree of protection: IP 55
Flow rate min. (l./min.): 30
Max flow (l./min.): 120
Min head (m.): 22
Max head (m.): 41
Employments: water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
Liquid temperature max. (° C): 90
Motor voltage: 230 V
Height (cm): 26
Width (cm): 20.6
Depth (cm): 36.7
Weight kg): 17.8
Guarantee: 2

Attachments

CP data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo CP series pumps.

Download (468.97KB)

CPm models and performances

GUY

single phase

CPm 100

CPm 130

CPm 132

CPm 150

CPm 158

CPm 170

CPm 170M

CPm 190

CPm 200

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 60	16 ÷ 7
10 ÷ 80	23 ÷ 14
10 ÷ 120	23 ÷ 12
10 ÷ 120	29.5 ÷ 15
10 ÷ 90	36 ÷ 25
30 ÷ 120	41 ÷ 22
30 ÷ 160	36 ÷ 19
30 ÷ 140	48 ÷ 26
30 ÷ 150	56 ÷ 36

MOUTH
wait.	send.
1"	1"
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8	8.4	9.0	9.6
Q	l/min	0	10	20	30	40	50	60	70	80	90	100	110	120	130	140	150	160
H	meters	16	15	14	12.5	11	9	7
		23	22	21	20	19	18	17	15.5	14
		23	-	22.5	22	21.5	21	20.5	19.5	18.5	17.5	16	14	12
		29.5	-	29	28.5	28	27.5	26.5	26	24.5	23	21	18	15
		36	34	33.5	33	32.5	31.5	30	28.5	27	25
		41	-	-	38	37	36	35	33.5	32	30	27.5	25	22
		36	-	-	35	34.5	33.5	33	32	31	30	29	28	26.5	25	23	21	19
		48	-	-	46	44.5	43	41.5	40	38	36	34.5	32.5	30.5	28	26
		56	-	-	55	54.5	53.5	52	51	49.5	48	46	44.5	42.5	40.5	38.5	36

Construction data of the CP 170-170M

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100

Compare with Similar Products

	CPm 170 - 1.5 HP single-phase centrifugal electric pump This product Flow rate up to 120 l/min (7.2 m³/h). Head up to 41 m. 1.1 Kw (1.5 HP) motor.	CPm 158 - 1 HP single-phase centrifugal electric pump Quick View Flow rate up to 90 l/min (5.4 m³/h). Head up to 36 m. 0.75 Kw (1 HP) motor.	CPm 170M - 1.5 HP single-phase centrifugal electric pump Quick View Flow rate up to 160 l/min (9.6 m³/h). Head up to 36 m. 1.1 Kw (1.5 HP) motor.	CPm 190 - 2 HP single-phase centrifugal electric pump Quick View Flow rate up to 140 l/min (8.4 m³/h). Head up to 48 m. 1.5 Kw (2 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (Kw)	Power (Kw) 1.1	Power (Kw) --	Power (Kw) 1.1	Power (Kw) 1.5
Power (HP)	Power (HP) 1.5	Power (HP) 1	Power (HP) 1.5	Power (HP) 2
Absorption at 230V (A)	Absorption at 230V (A) 7.8	Absorption at 230V (A) 6	Absorption at 230V (A) 7.8	Absorption at 230V (A) 11.0
Capacitor	Capacitor 25 µF450 VL	Capacitor 20 µF450 VL	Capacitor 25 µF450 VL	Capacitor 45 µF450 VL
Suction mouth	Suction mouth 1 "1/4	Suction mouth 1 "	Suction mouth 1 "1/4	Suction mouth 1 "1/4
Delivery port	Delivery port 1 "	Delivery port 1 "	Delivery port 1 "	Delivery port 1 "
Body Pump	Body Pump Cast iron	Body Pump Cast iron	Body Pump Cast iron	Body Pump Cast iron
Impeller	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel	Impeller AISI 304 stainless steel
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Motor shaft	Motor shaft Stainless steel EN 10088-3 1.4104	Motor shaft Stainless steel EN 10088-3 1.4104	Motor shaft Stainless steel EN 10088-3 1.4104	Motor shaft Stainless steel EN 10088-3 1.4104
Check valve	Check valve no	Check valve no	Check valve no	Check valve no
Degree of protection	Degree of protection IP 55	Degree of protection IP 44	Degree of protection IP 44	Degree of protection IP 44
Flow rate min. (l./min.)	Flow rate min. (l./min.) 30	Flow rate min. (l./min.) 10	Flow rate min. (l./min.) 30	Flow rate min. (l./min.) 30
Max flow (l./min.)	Max flow (l./min.) 120	Max flow (l./min.) 90	Max flow (l./min.) 160	Max flow (l./min.) 140
Min head (m.)	Min head (m.) 22	Min head (m.) 25	Min head (m.) 19	Min head (m.) 26
Max head (m.)	Max head (m.) 41	Max head (m.) 36	Max head (m.) 36	Max head (m.) 48
Employments	Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks	Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks	Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks	Employments water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, transfer of tanks
Liquid temperature max. (° C)	Liquid temperature max. (° C) 90	Liquid temperature max. (° C) 90	Liquid temperature max. (° C) 90	Liquid temperature max. (° C) +90°C
Motor voltage	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V
Height (cm)	Height (cm) 26	Height (cm) 24	Height (cm) 26	Height (cm) 29
Width (cm)	Width (cm) 20.6	Width (cm) 19	Width (cm) 20.6	Width (cm) 36.4
Depth (cm)	Depth (cm) 36.7	Depth (cm) 28.5	Depth (cm) 36.7	Depth (cm) 24.2
Weight kg)	Weight kg) 17.8	Weight kg) 12	Weight kg) 17.8	Weight kg) 21.5
Guarantee	Guarantee 2	Guarantee 2	Guarantee 2	Guarantee 2
