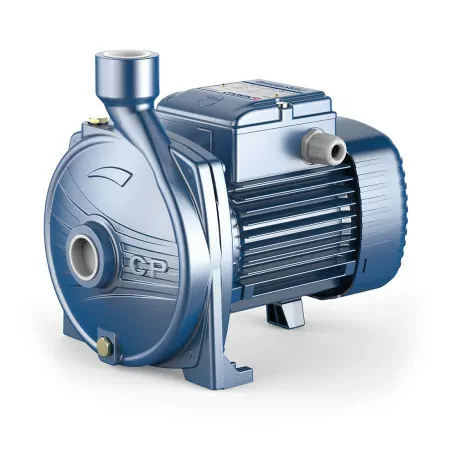

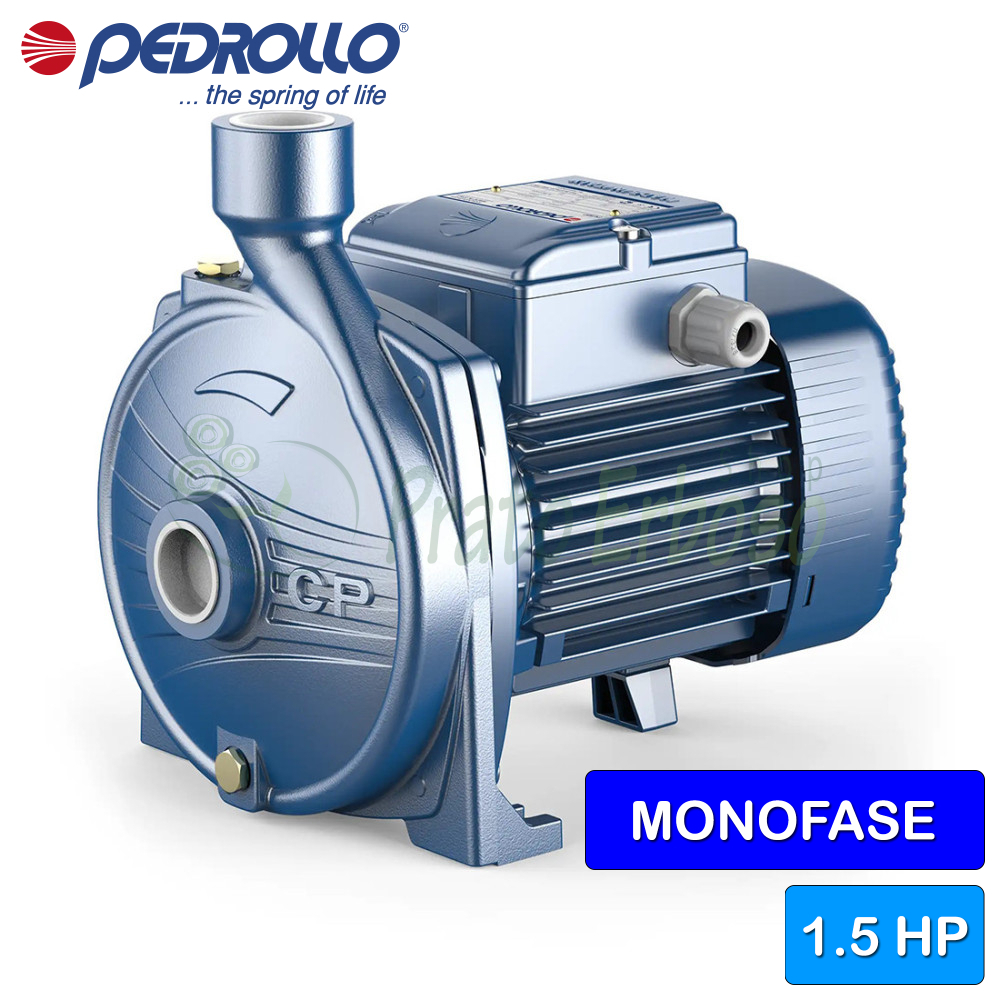

CPm 170M - 1.5 HP single-phase centrifugal electric pump

Name: CPm 170M - 1.5 HP single-phase centrifugal electric pump
Brand: Pedrollo
SKU: CPm 170M
Price: 271.08 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 160 l/min (9.6 m³/h). Head up to 36 m. 1.1 kW (1.5 HP) motor.

Variants:

Order it before 12:00 and receive it between Friday 26 June and Monday 29 June with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 26 June - Monday 29 June
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Friday 26 June - Monday 29 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 26 June - Monday 29 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 26 June - Monday 29 June

(5/5) out of 1 total ratings
Read the reviews

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo CPm 170M electric pump is particularly recommended for water supply activities, for air conditioning or cooling systems and for irrigation.

Thanks to its simplicity and reliability, it is recommended for use in the civil sector but can also be used in agricultural and industrial contexts.

It can pump clean water and liquids that are chemically non-aggressive for the constituent materials.

The CPm 170M, despite its simplicity, is a reliable product that will stand the test of time. Pedrollo used materials such as cast iron and stainless steel to make the pump robust and durable.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Absorption at 230V (A): 7.8
Capacitor: 25 µF 450 VL
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 30
Max. flow rate (l./min.): 160
Min. head (m.): 19
Max. head (m.): 36
Jobs: water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, tank transfer
Max. liquid temperature (°C): +90°C
Motor voltage: 230 V
Height (cm): 26
Width (cm): 36.7
Depth (cm): 206
Weight (Kg): 17.8
Warranty (years): 2

Attachments

CP data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo CP series pumps.

Download (468.97KB)

CPm models and performances

GUY

single phase

CPm 100

CPm 130

CPm 132

CPm 150

CPm 158

CPm 170

CPm 170M

CPm 190

CPm 200

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
10 ÷ 60	16 ÷ 7
10 ÷ 80	23 ÷ 14
10 ÷ 120	23 ÷ 12
10 ÷ 120	29.5 ÷ 15
10 ÷ 90	36 ÷ 25
30 ÷ 120	41 ÷ 22
30 ÷ 160	36 ÷ 19
30 ÷ 140	48 ÷ 26
30 ÷ 150	56 ÷ 36

MOUTH
wait.	send.
1"	1"
1 1/4"	1"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8	8.4	9.0	9.6
Q	l/min	0	10	20	30	40	50	60	70	80	90	100	110	120	130	140	150	160
H	meters	16	15	14	12.5	11	9	7
		23	22	21	20	19	18	17	15.5	14
		23	-	22.5	22	21.5	21	20.5	19.5	18.5	17.5	16	14	12
		29.5	-	29	28.5	28	27.5	26.5	26	24.5	23	21	18	15
		36	34	33.5	33	32.5	31.5	30	28.5	27	25
		41	-	-	38	37	36	35	33.5	32	30	27.5	25	22
		36	-	-	35	34.5	33.5	33	32	31	30	29	28	26.5	25	23	21	19
		48	-	-	46	44.5	43	41.5	40	38	36	34.5	32.5	30.5	28	26
		56	-	-	55	54.5	53.5	52	51	49.5	48	46	44.5	42.5	40.5	38.5	36

Construction data of the CP 170-170M

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Cast iron GJL 200 EN 1561
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
