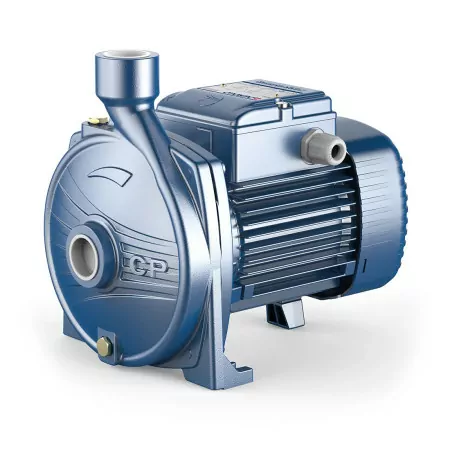

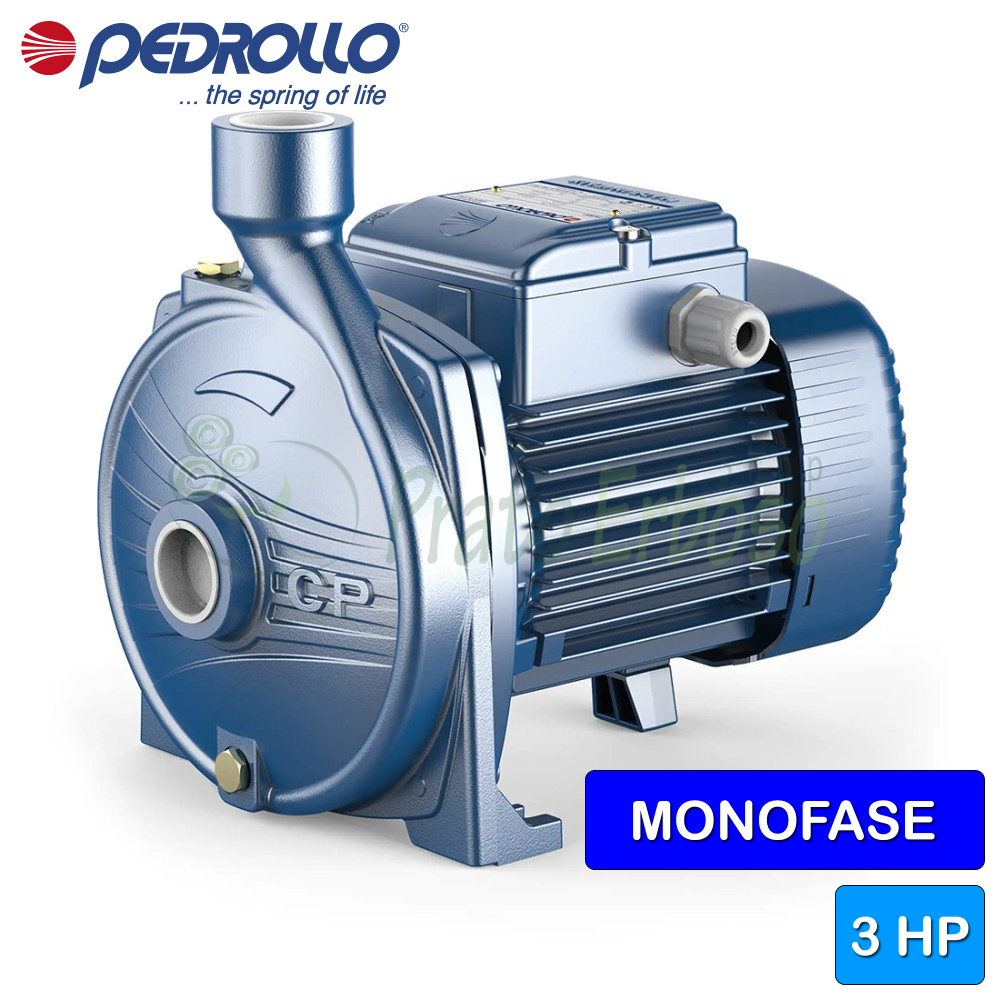

CPm 200 - 3 HP single-phase centrifugal electric pump
Flow rate up to 150 l/min (9 m³/h). Head up to 56 m. 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The CPm 200 electric pump from Pedrollo 's CP series can pump clean water and chemically non-aggressive liquids for components.
Pedrollo has created a simple and reliable product.
Its reliability makes the CPm 200 recommended for the civil sector but it can also be used in the agricultural and industrial sectors.
The flow rate ranges from 30 to a maximum of 150 liters per minute and the range from 36 to 56 meters.
Made from materials such as cast iron and stainless steel, the CPm 200 electric pump is robust and durable.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 12.8
- Capacitor
- 50 µF 450 VL
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 30
- Max. flow rate (l./min.)
- 150
- Min. head (m.)
- 36
- Max. head (m.)
- 56
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, tank transfer
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 29
- Width (cm)
- 38.4
- Depth (cm)
- 24.2
- Weight (Kg)
- 24.2
- Warranty (years)
- 2
CPm models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CP 190-200
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
