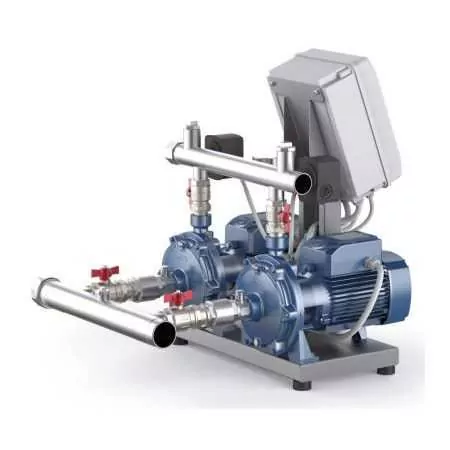

CB2 - 2CP 32/210A - 2x10 HP three-phase pressure group
2 THREE-PHASE ELECTRIC PUMPS.
2 x 7.5 Kw (2 x 10 HP) motor. Flow rate up to 440 l/min (26.4 m³/h). Head up to 112 m.
COMBIPRESS are pressure groups with two electric pumps assembled in a ready-to-install unit.
The groups are set up so that, with each increase in demand from the user, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to satisfy the water demand are activated.
The electronic circuit in the electrical panel alternates the operation of the pumps.
- Motor connection
- THREE-PHASE
- Power (HP)
- 20
- Absorption at 400V (A)
- 32
- Suction mouth
- 3 "
- Delivery port
- 2"
- Body Pump
- Cast iron
- Impeller
- Noryl
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 40
- Max flow (l./min.)
- 500
- Min head (m.)
- 74
- Max head (m.)
- 112
- Height (cm)
- 98.7
- Width (cm)
- 70
- Depth (cm)
- 68.8
- Weight kg)
- 156
- Guarantee
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
