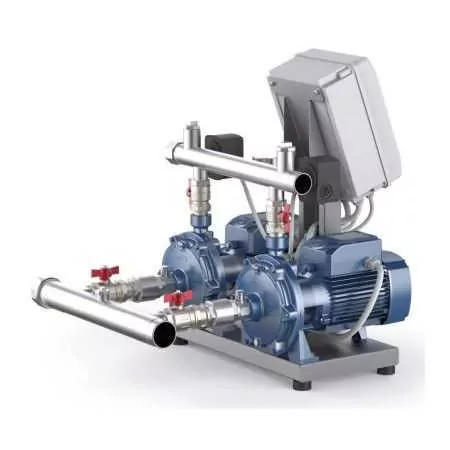

CB2 - 2CP 32/210B - Three-phase pressure group 2x7.5 HP
2 THREE-PHASE ELECTRIC PUMPS.
2 x 5.5 Kw (2 x 7.5 HP) motor. Flow rate up to 440 l/min (26.4 m³/h). Head up to 94 m.
COMBIPRESS are pressure groups with two electric pumps assembled in a ready-to-install unit.
The groups are set up so that, with each increase in demand from the user, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to satisfy the water demand are activated.
The electronic circuit in the electrical panel alternates the operation of the pumps.
- Motor connection
- THREE-PHASE
- Power (HP)
- 15
- Absorption at 400V (A)
- 25
- Suction mouth
- 3 "
- Delivery port
- 2"
- Body Pump
- Cast iron
- Impeller
- Brass
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 40
- Max flow (l./min.)
- 500
- Min head (m.)
- 56
- Max head (m.)
- 94
- Height (cm)
- 98.7
- Width (cm)
- 70
- Depth (cm)
- 68.8
- Weight kg)
- 149
- Guarantee
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 CB2 - 2CP 32/210B - Three-phase pressure group 2x7.5 HPThis product 2 THREE-PHASE ELECTRIC PUMPS. 2 x 5.5 Kw (2 x 7.5 HP) motor. Flow rate up to 440 l/min (26.4 m³/h). Head up to 94 m. |  CB2 - 2CP 32/200C - 2x4 HP three-phase pressure group2 THREE-PHASE ELECTRIC PUMPS. 2 x 3 Kw (2 x 4 HP) motor. Flow rate up to 445 l/min (27.6 m³/h). Head up to 70 m. |  CB2 - 2CP 32/210A - 2x10 HP three-phase pressure group2 THREE-PHASE ELECTRIC PUMPS. 2 x 7.5 Kw (2 x 10 HP) motor. Flow rate up to 440 l/min (26.4 m³/h). Head up to 112 m. | |
|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (HP) | Power (HP) 15 | Power (HP) -- | Power (HP) 20 |
| Absorption at 400V (A) | Absorption at 400V (A) 25 | Absorption at 400V (A) 14.8 | Absorption at 400V (A) 32 |
| Suction mouth | Suction mouth 3 " | Suction mouth 3 " | Suction mouth 3 " |
| Delivery port | Delivery port 2" | Delivery port 2" | Delivery port 2" |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Noryl |
| Motor shaft | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 40 | Flow rate min. (l./min.) 40 | Flow rate min. (l./min.) 40 |
| Max flow (l./min.) | Max flow (l./min.) 500 | Max flow (l./min.) 500 | Max flow (l./min.) 500 |
| Min head (m.) | Min head (m.) 56 | Min head (m.) 36 | Min head (m.) 74 |
| Max head (m.) | Max head (m.) 94 | Max head (m.) 70 | Max head (m.) 112 |
| Height (cm) | Height (cm) 98.7 | Height (cm) 98.2 | Height (cm) 98.7 |
| Width (cm) | Width (cm) 70 | Width (cm) 70 | Width (cm) 70 |
| Depth (cm) | Depth (cm) 68.8 | Depth (cm) 68.8 | Depth (cm) 68.8 |
| Weight kg) | Weight kg) 149 | Weight kg) 112 | Weight kg) 156 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 |
