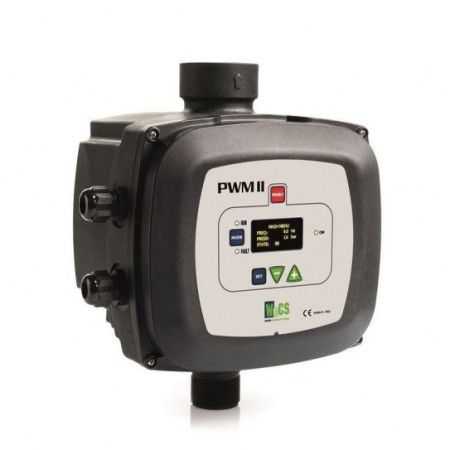

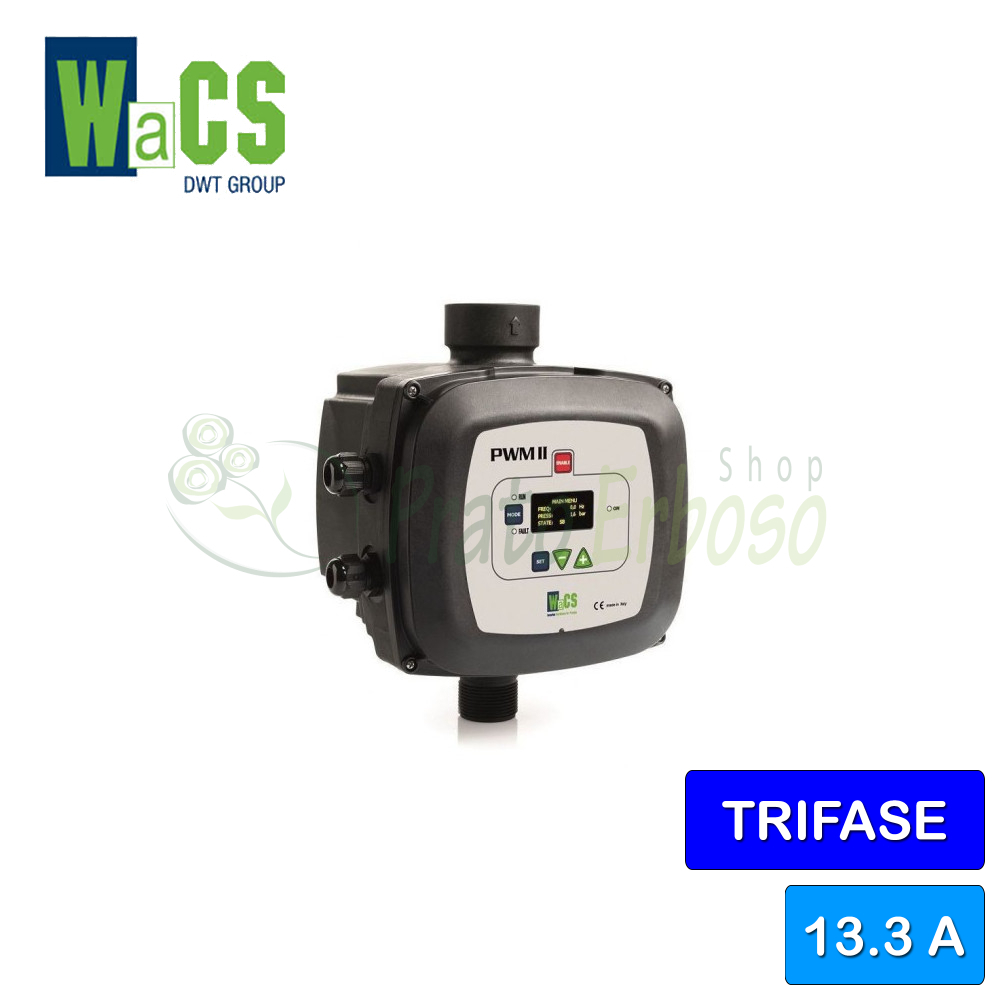

PWM II 400 D/13.3 - 13.3 A three-phase inverter
For three-phase pumps up to 7.5 HP.
PWM 400 is an integrated system for the variable speed control (INVERTER) of electric pumps, capable of maintaining constant pressure as the flow rate varies.
Thanks to the various possible settings and the availability of configurable input and output contacts, it is possible to adapt the operation of the PWM system to the needs of various systems.
The PWM 400 drives electric pumps with standard three-phase asynchronous motors and is powered by a three-phase line. The installed electric pump motor's supply voltage must be 400V 50Hz three-phase. The load connected to the PWM 400 must not exceed 13.3 Amps in phase current.
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Degree of protection
- IP 55
- Max. flow rate (l./min.)
- 400
- Line power supply
- three-phase
- Supply voltage (Volts)
- 400
- Line Current (Ampere)
- 16
- Line phases
- 3 x 400 V
- Engine power supply
- three-phase
- Motor voltage
- 400V
- Engine phases
- 3 x 400V
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Warranty (years)
- 2
-
