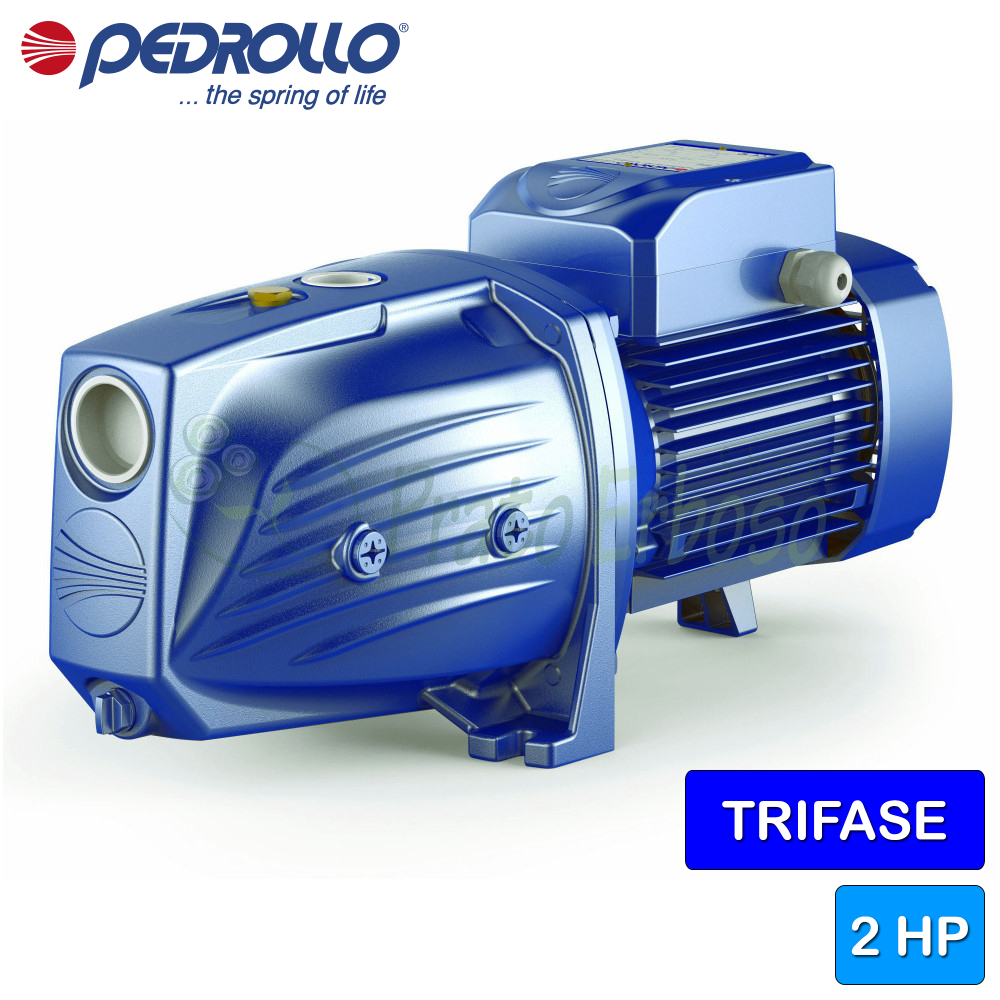

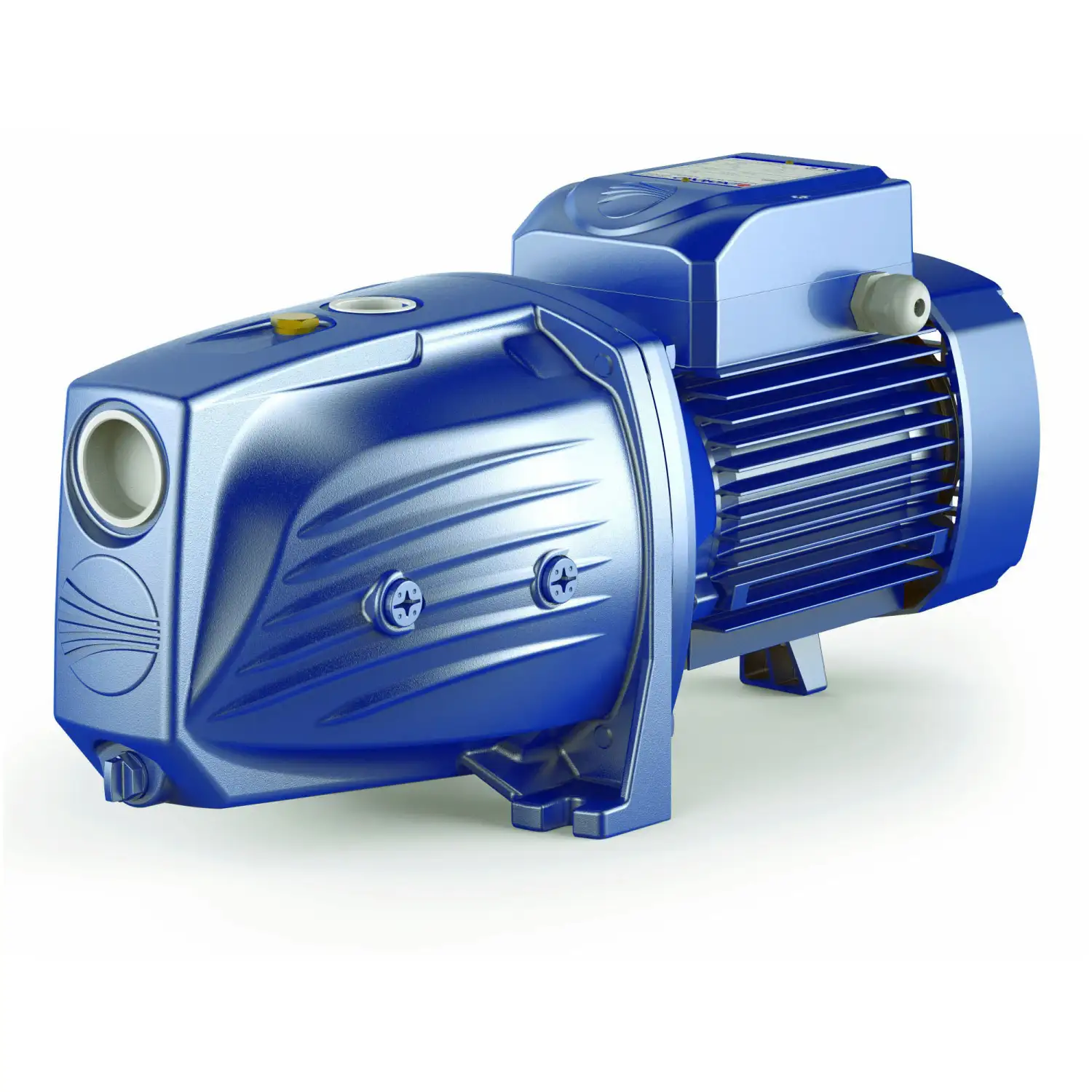

JSW 3BL - 2 HP three-phase self-priming electric pump
Flow rate up to 160 l/min (9.6 m³/h). Head up to 51 m. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The JSW 3BL self-priming electric pump from the JSW series by Pedrollo is recommended for use in the civil, domestic and industrial sectors.
Designed to suck water even in the presence of air mixed with the pumped liquid.
It is reliable and simple to use, making it excellent for home use.
In particular, the JSW 3BL is recommended for water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens and gardens.
The construction is solid thanks to the use of cast iron, stainless steel and noryl which make it robust and resistant.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 2
- Absorption at 230V (A)
- 6.4
- Current consumption at 400V (A)
- 3.7
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 30
- Max. flow rate (l./min.)
- 160
- Min. head (m.)
- 24
- Max. head (m.)
- 51
- Jobs
- water supply, pressurization systems, irrigation, washing systems, tank transfer, fire prevention systems
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 24.1
- Width (cm)
- 20.6
- Depth (cm)
- 52.2
- Weight (Kg)
- 25.5
- Warranty (years)
- 2
JSW 3 Models and Performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the JSW 3 series
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
