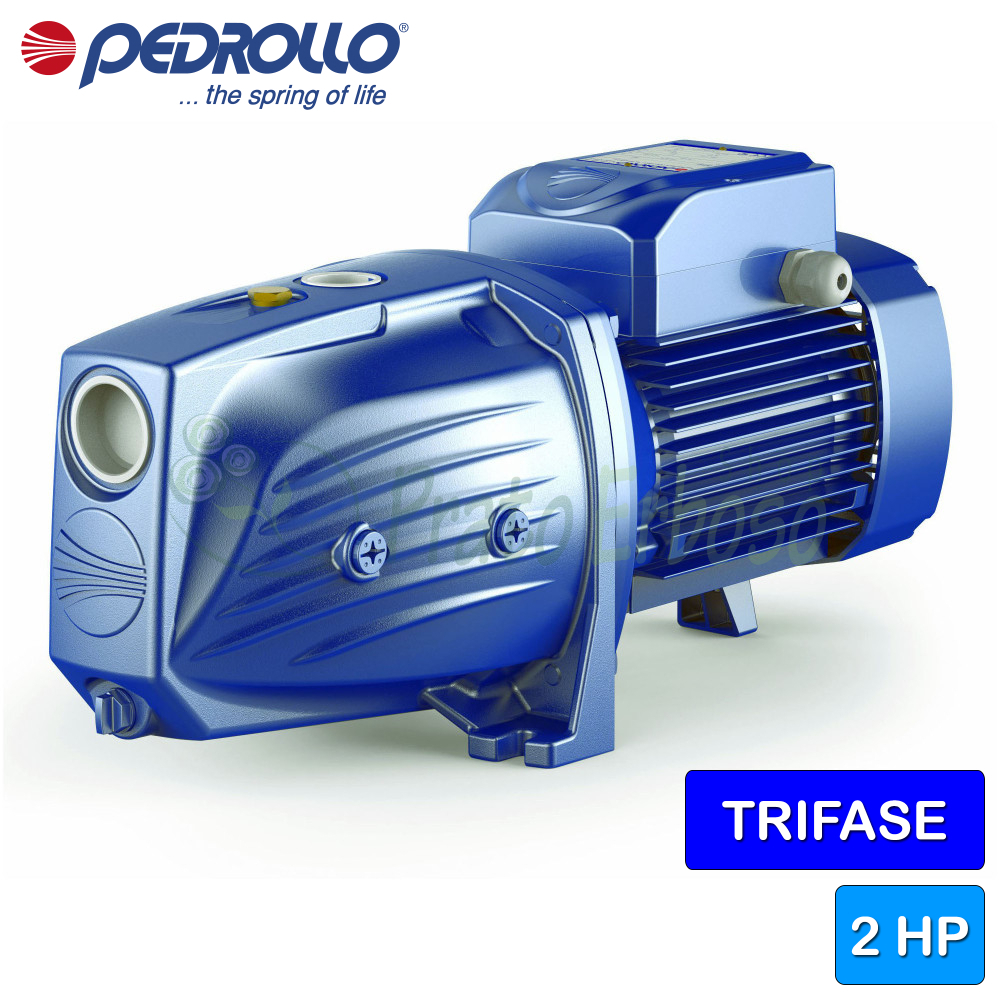

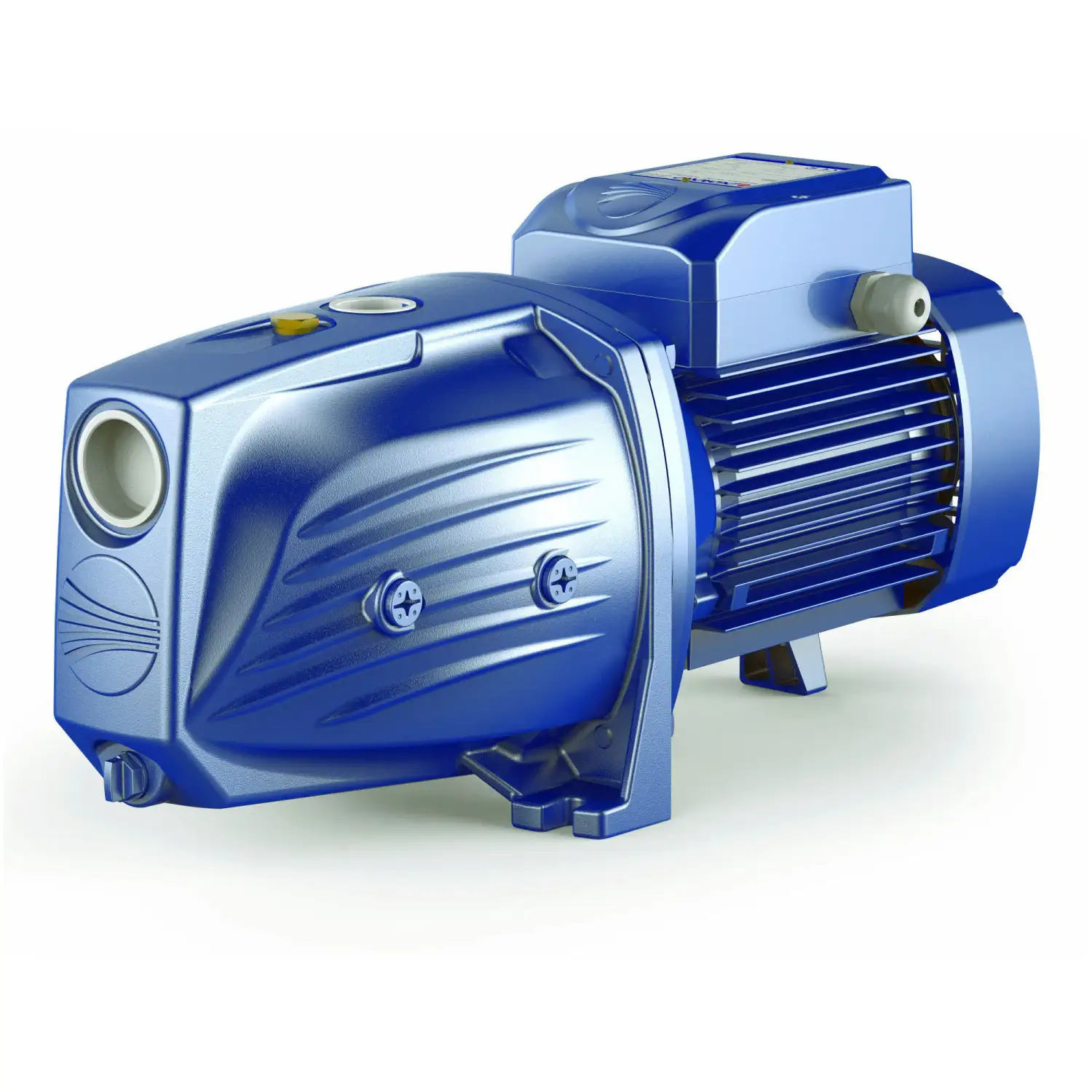

JSW 3BM - 2 HP three-phase self-priming electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 63 m. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The JSW self-priming pump is designed to suck water even in the presence of air mixed with the pumped liquid.
Due to its reliability and ease of use, it is recommended for domestic use, especially for water distribution in conjunction with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens, etc.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 6.0
- Absorption at 400V (A)
- 3.5
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 120
- Min head (m.)
- 30
- Max head (m.)
- 60
- Employments
- water supply, pressurization systems, irrigation, washing systems, transfer of tanks, fire prevention systems
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 24.1
- Width (cm)
- 20.6
- Depth (cm)
- 52.2
- Weight kg)
- 25.5
- Guarantee
- 2
JSW 3 Models and Performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the JSW 3 series
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
Compare with Similar Products
 JSW 3BM - 2 HP three-phase self-priming electric pumpThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 63 m. 1.5 Kw (2 HP) motor. |  JSW 3CM - 1.5 HP Three-Phase Self-Priming Electric PumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 54 m. 1.1 Kw (1.5 HP) motor. |  JSW 3AM - 3 HP three-phase self-priming electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 78 m. 2.2 Kw (3 HP) motor. |  JSW 3CL - 1.5 HP three-phase self-priming electric pumpFlow rate up to 160 l/min (9.6 m³/h). Head up to 44 m. 1.1 Kw (1.5 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.1 | Power (Kw) 2.2 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 2 | Power (HP) 1.5 | Power (HP) 3 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 6.0 | Absorption at 230V (A) 5.2 | Absorption at 230V (A) -- | Absorption at 230V (A) 5.2 |
| Absorption at 400V (A) | Absorption at 400V (A) 3.5 | Absorption at 400V (A) 3.0 | Absorption at 400V (A) -- | Absorption at 400V (A) 3.0 |
| Suction mouth | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 | Suction mouth 1 "1/4 |
| Delivery port | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " | Delivery port 1 " |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller AISI 304 stainless steel | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Motor shaft | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft Stainless steel EN 10088-3 1.4104 | Motor shaft AISI 304 stainless steel | Motor shaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve no | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) 10 | Flow rate min. (l./min.) -- | Flow rate min. (l./min.) 10 |
| Max flow (l./min.) | Max flow (l./min.) 120 | Max flow (l./min.) 120 | Max flow (l./min.) -- | Max flow (l./min.) 160 |
| Min head (m.) | Min head (m.) 30 | Min head (m.) 20 | Min head (m.) -- | Min head (m.) 15 |
| Max head (m.) | Max head (m.) 60 | Max head (m.) 52 | Max head (m.) -- | Max head (m.) 42 |
| Employments | Employments water supply, pressurization systems, irrigation, washing systems, transfer of tanks, fire prevention systems | Employments -- | Employments water supply, fire prevention systems, washing systems, pressurization systems, irrigation, transfer of tanks | Employments water supply, pressurization systems, irrigation, washing systems, transfer of tanks, fire prevention systems |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) 40 | Liquid temperature max. (° C) +40°C | Liquid temperature max. (° C) -- | Liquid temperature max. (° C) 40 |
| Motor voltage | Motor voltage -- | Motor voltage -- | Motor voltage 230 V, 400 V | Motor voltage -- |
| Height (cm) | Height (cm) 24.1 | Height (cm) 24.1 | Height (cm) -- | Height (cm) 24.1 |
| Width (cm) | Width (cm) 20.6 | Width (cm) 20.6 | Width (cm) -- | Width (cm) 20.6 |
| Length (cm) | Length (cm) -- | Length (cm) -- | Length (cm) -- | Length (cm) -- |
| Depth (cm) | Depth (cm) 52.2 | Depth (cm) 52.2 | Depth (cm) -- | Depth (cm) 52.2 |
| Weight kg) | Weight kg) 25.5 | Weight kg) 23.3 | Weight kg) -- | Weight kg) 23.3 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
