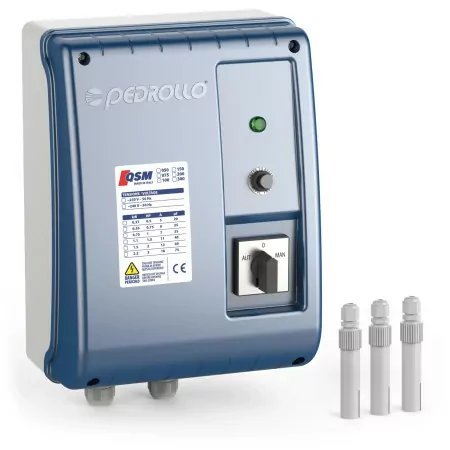

QSM 200 - Electrical panel for single-phase 2 HP electric pump
zoom_out_map
chevron_left chevron_right
-36%

QSM 200 - Electrical panel for single-phase 2 HP electric pump

For starting 1 4" submersible electric pump. Power: 1.5 Kw (2 HP). Manual, automatic operation. Pressure switch/float input. Level probe input. Overload protection. Capacitor.

€234.24 Tax included

€192.00 Tax excluded

€366.00-36%

Variants:
QSM 050 - Quadro elettrico per elettropompa monofase 0.50 HP
QSM 075 - Quadro elettrico per elettropompa monofase 0.75 HP
QSM 100 - Quadro elettrico per elettropompa monofase 1 HP
QSM 150 - Quadro elettrico per elettropompa monofase 1.5 HP
QSM 200 - Quadro elettrico per elettropompa monofase 2 HP
QSM 300 - Quadro elettrico per elettropompa monofase 3 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

QSM 200 - Electrical panel for single-phase 2 HP electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

Pedrollo QSM electrical panels made of self-extinguishing thermoplastic material.

Equipped with a selector for manual and automatic operation regulated by a float and pressure switch.

Prepared for connection to level probes that protect the pump from dry running.

Data sheet
Pedrollo
QSM 200
5 Items
Power (HP)
2
Capacitor
60 µF450 VL
Degree of protection
IP 55
Line power supply
single phase
Supply voltage (Volt)
230
Motor power supply
single phase
Motor phase current
13
Overcurrent protection
thermal circuit breaker
Amperometric protection
Yes
Short circuit protection
no
Dry running protection
Yes
Height (cm)
Width (cm)
Depth (cm)
Weight kg)
Guarantee
2

Frequently bought together

  • QSM 200 - Electrical panel for single-phase 2 HP electric pump
  • +
  • QSM 100 - Electrical panel for single-phase 1 HP electric pump
  • +
  • QSM 150 - Electrical panel for single-phase electric pump 1.5 HP
  • €679.29-10 %
    Total price: €611.36
QSM models and performance
GUY
single phase
QSM 050
QSM 075
QSM 100
QSM 150
QSM 200
QSM 300
ENGINE POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
1.52
2.23

Compare with Similar Products

QSM 200 - Electrical panel for single-phase 2 HP electric pump

QSM 200 - Electrical panel for single-phase 2 HP electric pump

This product

For starting 1 4" submersible electric pump. Power: 1.5 Kw (2 HP). Manual, automatic operation. Pressure switch/float input. Level probe input. Overload protection. Capacitor.

E1 MONO - Electrical panel for single-phase 3 HP electric pump

E1 MONO - Electrical panel for single-phase 3 HP electric pump

Quick View

For starting 1 single-phase electric pump. Power: 2.2 Kw (3 HP). Manual, automatic operation. Pressure switch/float input.

QEM 200 - Electrical panel for single-phase 2 HP electric pump

QEM 200 - Electrical panel for single-phase 2 HP electric pump

Quick View

For starting 1 4" submersible electric pump. Power: 1.5 Kw (2 HP). Manual operation. Overload protection. Capacitor.

Power (HP) Power (HP) 2 Power (HP) 3 Power (HP) 2
Capacitor Capacitor 60 µF450 VL Capacitor -- Capacitor 60 µF450 VL
Degree of protection Degree of protection IP 55 Degree of protection IP 55 Degree of protection IP 55
Line power supply Line power supply single phase Line power supply -- Line power supply single phase
Supply voltage (Volt) Supply voltage (Volt) 230 Supply voltage (Volt) 230 Supply voltage (Volt) 230
Motor power supply Motor power supply single phase Motor power supply -- Motor power supply single phase
Motor phase current Motor phase current 13 Motor phase current -- Motor phase current 13
Overcurrent protection Overcurrent protection thermal circuit breaker Overcurrent protection thermal relay Overcurrent protection thermal circuit breaker
Amperometric protection Amperometric protection Yes Amperometric protection -- Amperometric protection No
Short circuit protection Short circuit protection no Short circuit protection -- Short circuit protection Yes
Dry running protection Dry running protection Yes Dry running protection -- Dry running protection no
Height (cm) Height (cm) -- Height (cm) -- Height (cm) --
Width (cm) Width (cm) -- Width (cm) -- Width (cm) --
Depth (cm) Depth (cm) -- Depth (cm) -- Depth (cm) --
Weight kg) Weight kg) -- Weight kg) -- Weight kg) --
Guarantee Guarantee 2 Guarantee -- Guarantee 2
